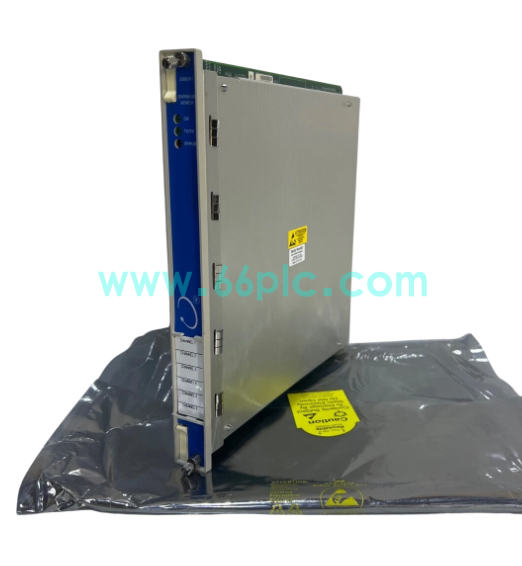

Bently Nevada 3500/61 Proximity Monitor Module in stock

The Bently Nevada 3500/61 is a proximity monitor module for Bently Nevada 3500 machinery monitoring rack system. It works with eddy‑current proximity probes to measure shaft vibration, radial displacement and thrust position of rotating machinery. Installed in standard rack slot, it processes gap signals and generates alarm and trip outputs for turbine, compressor TSI machinery‑protection loops.

This module contains multi‑channel signal conditioning circuits, back‑plane bus connector and channel diagnostic LED indicators. It provides probe excitation power, monitors probe health status and compares measured values against user‑configured alarm thresholds. Hot‑swap function supports online replacement without interrupting other monitoring channels. It complies with API 670 machinery‑protection standard. Original production has been discontinued. It is widely supplied as aftermarket spare parts for 3500 rack maintenance and legacy rotating‑equipment‑monitoring retrofit projects.

Main Specifications

1. Brand:Bently Nevada (Baker Hughes); Model:3500/61; Type:Proximity Monitor Module
2. Compatible Platform:Bently Nevada 3500 series machinery monitoring rack system
3. Core Function:Proximity signal conditioning, shaft displacement and vibration measurement, alarm and trip logic judgment
4. Compatible Device:Eddy‑current proximity probe and matched extension cable assembly
5. Interface Resource:3500 internal back‑plane bus connector, channel‑wise status LED indicators
6. Hardware Feature:Rack plug‑in modular structure, hot‑swap support, built‑in probe fault detection circuit
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Supply excitation power for connected eddy‑current proximity probes, receive gap‑related analog signals from transducer system.
2. Complete signal conditioning and conversion, calculate actual displacement value reflecting shaft position and vibration amplitude.
3. Compare measured values with configured alarm and trip thresholds, generate logic alarm signals for machinery‑protection interlock.
4. Detect probe open‑circuit, short‑circuit and cable faults, indicate channel working state through front‑panel LED indicators for on‑site inspection.
5. Support hot‑swap maintenance, module replacement will not affect measurement operation of other channels within 3500 rack system.
6. Serve as core displacement‑monitoring hardware for Bently Nevada 3500 turbine supervisory instrumentation systems.

Application Scenarios

1. Machinery‑protection monitoring systems built on Bently Nevada 3500 platform for power‑plant turbines, gas turbines, compressors and large rotating units.
2. Spare‑parts replacement and routine maintenance of existing 3500 proximity‑monitoring subsystems inside monitoring cabinets.
3. Technical renovation and displacement‑measurement‑channel upgrade of aging legacy 3500 machinery‑monitoring installations.
4. On‑site troubleshooting and replacement of faulty proximity monitor modules for continuously running critical rotating‑machinery protection systems.
5. Spare‑parts stocking for system integrators and plant maintenance contractors supporting legacy Bently Nevada 3500 hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining obsolete Bently Nevada 3500 machinery‑monitoring hardware.

FAQ

1. Q:Can 3500/61 work as standalone unit?
   A:It must be installed in matched Bently Nevada 3500 rack system and cooperate with proximity probe sets, standalone module cannot complete displacement measurement.
2. Q:What symptoms appear upon module failure?
   A:Abnormal displacement or vibration readings, channel fault alarm, loss of alarm‑trip logic output for corresponding measurement channels.

3. Q:How to complete configuration and diagnosis?
   A:Check channel LED status and probe gap voltage on site; parameter configuration and fault analysis are completed through Bently Nevada System 1 supporting monitoring software.
