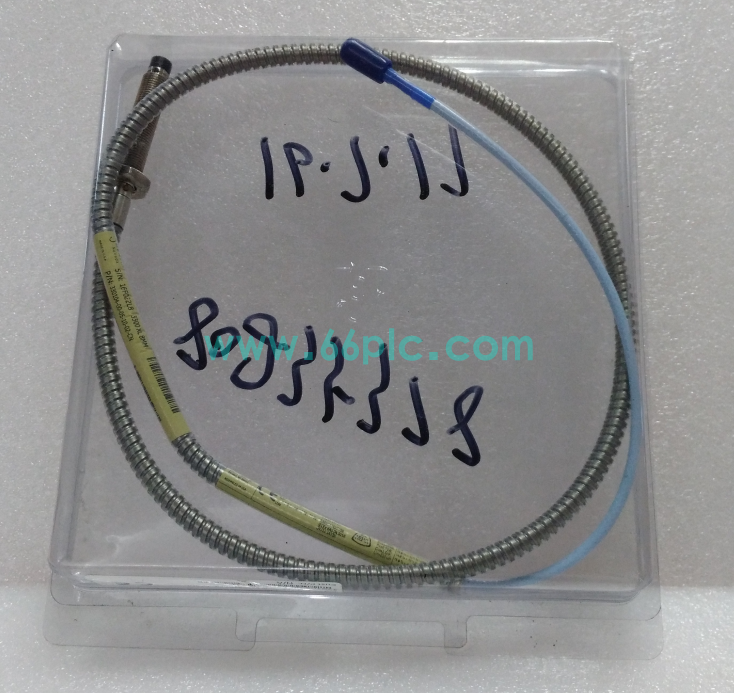

Bently Nevada 330104‑00‑05‑10‑02‑CN 3300 XL Proximity Probe

Bently Nevada 330104‑00‑05‑10‑02‑CN is a 3300 XL series non‑contact proximity probe sensor. It is designed for rotating machinery, measuring shaft radial vibration, shaft position and gap value by eddy‑current principle, converting mechanical displacement into continuous analog signal sent to monitoring system.

This probe features 5‑meter integrated cable, standard 8mm probe tip diameter, compatible with 3300 XL extension cable and monitor modules. It meets API 670 industry standard, widely used as replacement spare parts for turbine, compressor and other rotating equipment condition monitoring cabinet maintenance projects.

Main Specifications

• Brand: Bently Nevada
• Model: 330104‑00‑05‑10‑02‑CN
• Product Type: 3300 XL Eddy‑Current Proximity Probe
• Probe Tip Diameter: 8 mm
• Integrated Cable Length: 5 m
• Measuring Range: 0‑2 mm standard displacement measurement
• Connector: 10‑pin microdot connector
• Standard Compliance: API 670, IEC industrial standard
• Mounting: Thread‑type installation for machine housing
• Operating Temperature Range:‑35°C ~ +175°C

Core Functions

• Eddy‑current non‑contact measurement for rotating shaft radial vibration and axial position
• Convert shaft gap displacement into proportional analog voltage signal for monitoring unit
• Stable output under high‑temperature environment of turbine and compressor equipment
• Match with 3300 XL extension cable and monitor module to complete full measurement chain
• Thread mounting structure for convenient installation and gap adjustment on machinery casing
• High anti‑interference performance, adapt to strong electromagnetic field industrial site
• Real‑time capture equipment abnormal vibration trend for early mechanical fault warning
• High‑strength integrated cable resists oil, water and chemical medium erosion
• Support multi‑probe layout for multi‑direction shaft vibration monitoring requirements
• Provide reliable raw measurement data for rotating machinery condition protection system

Application Scenarios

• Thermal power plant steam turbine and generator shaft vibration monitoring systems
• Petrochemical plant centrifugal compressor, pump rotating machinery monitoring cabinets
• Oil & gas pipeline station large rotating equipment condition monitoring units
• Metallurgy industry high‑speed rotating machinery displacement and vibration detection projects
• Water‑treatment plant large‑size motor and turbo‑equipment monitoring systems
• Energy industry turbo‑expander and high‑speed rotating unit protection applications
• Rotating equipment monitoring system renovation, probe replacement and upgrade projects
• 3300 XL series monitoring system maintenance and spare‑parts backup for existing units
• Bently Nevada sensor spare‑parts inventory and on‑site rotating equipment maintenance supporting projects
