Bently Nevada 106M1081‑01 Universal AC Power Input Module

The Bently Nevada 106M1081‑01 is a universal AC power input module for the Bently Nevada 3500 machinery monitoring system. It accepts wide‑range AC mains input and feeds power to the 3500 series power supply unit, providing stable power source for rack‑mounted vibration and speed monitoring modules.

This half‑height plug‑in module supports redundant power configuration to enhance system fault tolerance. It features power status indicator and built‑in surge protection, widely installed in turbine monitoring cabinets for power, petrochemical and heavy‑industry rotating‑equipment sites.

Main Specifications

• Brand: Bently Nevada; Model: 106M1081‑01; Type: Universal AC Power Input Module
• Applicable System: Bently Nevada 3500 Machinery Protection System
• Core Tasks: Wide‑range AC power input, power pre‑processing, surge suppression, redundant power supply support

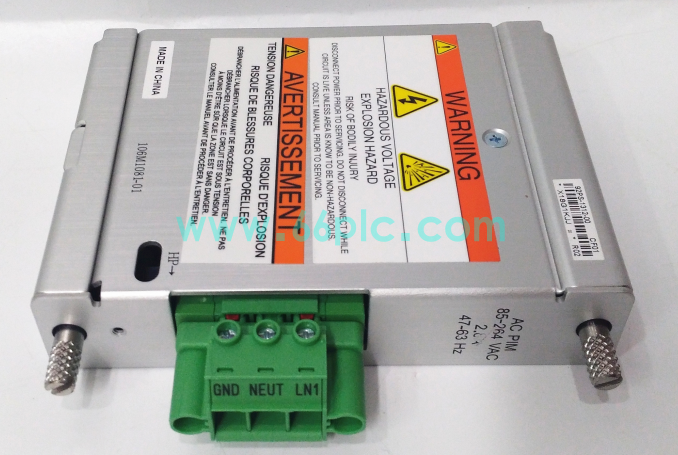

• Signal Interface: AC power input terminals, internal rack power backplane connector
• Installation: Plug‑in half‑height slot‑mount on standard 3500 rack
• Input Range: 85‑250 VAC, frequency 47‑63 Hz
• Operating Environment: ‑30℃ ~ +65℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Mechanical: Half‑height 3500 module form‑factor, IP20 for cabinet‑internal installation
• Certifications: CE, compliant with machinery monitoring system safety and EMC standards

Core Functions

• Receive universal AC mains power and deliver conditioned input power to the 3500 series power supply unit.
• Work with dual redundant power input modules to realize active‑standby power redundancy for the monitoring rack.
• Integrate surge and transient protection to suppress power‑grid interference and protect subsequent monitoring hardware.

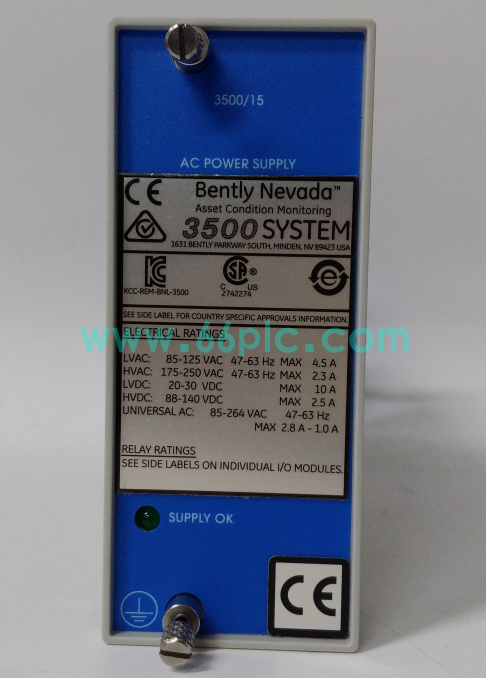

• Provide “Supply OK” status indicator for on‑site visual check of power input working condition.
• Adopt plug‑in rack‑mount structure for convenient disassembly and replacement during equipment maintenance.
• Industrial‑hardened hardware design adapts to long‑term continuous operation of turbine and rotating‑machinery monitoring cabinets.

Application Scenarios

• Spare‑part replacement for Bently Nevada 3500 monitoring racks in power plants, petrochemical and heavy‑industry sites.
• AC power input hardware providing power source for 3500 vibration, speed and temperature monitoring modules.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy 3500 machinery‑protection equipment.
• Matching power input module cooperating with 3500 power supply unit, monitoring modules and rack assemblies.
• Retrofit replacement for aged power input modules with no power output, indicator abnormal and surge‑damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Bently Nevada machinery‑monitoring equipment worldwide.
