Product Description

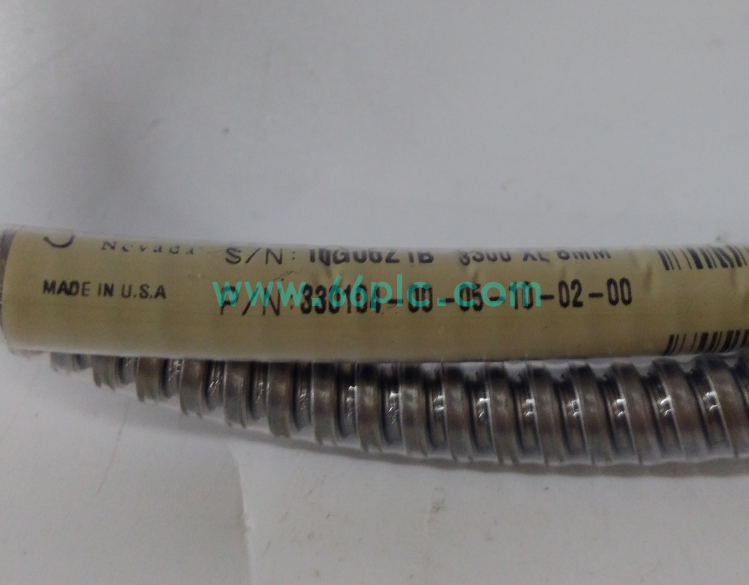

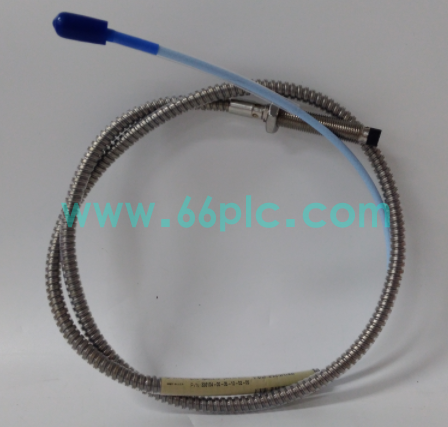

The Bently Nevada 330104-00-05-10-02-00 is a high-performance 3300 XL 11mm non-contact eddy current proximity probe, serving as a core sensing component for industrial machinery condition monitoring systems. It is mainly used for real-time online collection of rotating shaft vibration, axial displacement and gap variation signals, providing authentic and high-precision original data for equipment status monitoring and fault analysis.

Adopting mature eddy current sensing technology, the probe features wide linear measurement range, stable output performance and excellent environmental adaptability. It effectively resists on-site oil contamination, dust, humidity and temperature changes, avoiding signal drift and data distortion. Fully compatible with 3300 XL cables and 3500 series monitoring racks, it delivers long-term stable and reliable sensing guarantee for large rotating machinery in industrial fields.

Main Specifications

1. Full Part Number: 330104-00-05-10-02-00; Product Type: 3300 XL 11mm industrial eddy current proximity sensor probe
2. Applicable System: Bently Nevada 3300 XL and 3500 series machinery condition monitoring and protection systems
3. Core Function: Non-contact real-time detection of rotating shaft vibration, axial thrust displacement and dynamic clearance changes
4. Sensing Principle: High-stability eddy current induction technology, realizing non-contact dynamic displacement measurement
5. Probe Specification: Standard 11mm probe design with wide linear measurement range
6. Measurement Performance: Superior linearity and repeatability, suitable for high-precision mechanical micro-motion monitoring
7. Environmental Resistance: Excellent resistance to industrial oil, dust, vibration and fluctuating temperature environments
8. Signal Stability: Ultra-low signal drift and strong anti-interference capability for long-term continuous sampling
9. Matching Compatibility: Perfectly matched with 3300 XL extension cables and series monitoring modules
10. Reliability: Integrated fully sealed industrial structure, adapting to harsh industrial long-cycle operation

Core Functions

1. Serves as the key original signal sensing unit for Bently Nevada machinery monitoring systems.
2. Performs non-contact online detection of rotating equipment shaft vibration and axial displacement status.
3. Accurately captures tiny dynamic changes of mechanical clearance to support system precise analysis.
4. No physical contact wear during operation, reducing equipment maintenance frequency and cost.
5. Cooperates with rear-end monitoring modules to realize equipment abnormal alarm and fault early warning.
6. Ensures the overall data accuracy, stability and continuity of the machinery monitoring system.

Application Scenarios

1. Power plant steam turbine, gas turbine and generator set shaft vibration monitoring systems
2. Petrochemical large compressors, industrial fans and pump unit condition monitoring platforms
3. Key industrial rotating machinery axial displacement, shaft swing and gap dynamic monitoring scenarios
4. Complex and harsh industrial environments with oil pollution, dust and variable temperatures
5. Old probe replacement and monitoring accuracy upgrading for 3300/3500 series systems
