Product Description

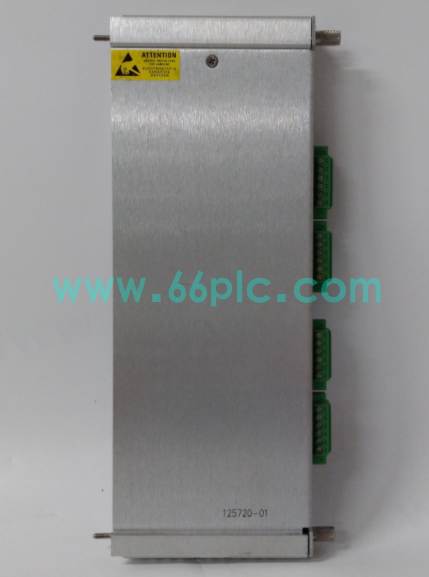

The Bently Nevada 3500/32 125720-01 is a high-reliability 4-channel relay output module designed for the 3500 series machinery monitoring systems. It converts internal monitoring alarm and fault logic into physical relay switch signals, serving as the core linkage output unit for rotating machinery safety protection systems.

Each relay channel supports independent programmable logic configuration, covering AND/OR voting alarm drive modes. Adopting gold-plated contacts and industrial anti-interference design, it ensures stable switching performance and long service life. Supporting hot-swap installation and seamless system matching, it provides reliable safety linkage control for critical industrial rotating equipment.

Main Specifications

1. Full Part Number: 3500/32 125720-01; Product Type: Industrial 4-channel programmable relay output module
2. Applicable System: Bently Nevada 3500 series machinery vibration and condition monitoring systems
3. Core Function: Alarm logic output, safety interlock switching, and on-site protection equipment linkage control
4. Channel Configuration: 4 fully independent programmable relay output channels for multi-point signal expansion
5. Logic Mode: Supports customizable AND/OR voting logic and multi-channel combined alarm drive
6. Contact Performance: High-quality gold-plated contacts for stable and anti-oxidation switching operation
7. Electrical Rating: Standard industrial contact load capacity for control circuit signal switching
8. Installation Feature: Hot-swappable design for non-stop module replacement and maintenance
9. Certification Standard: Compliant with UL, CE and FCC industrial safety and electromagnetic standards
10. Reliability: Rugged industrial design, adapting to harsh workshop and power plant operating environments

Core Functions

1. Acts as the dedicated relay output expansion unit for Bently Nevada 3500 monitoring systems.
2. Converts equipment vibration, temperature and abnormal status alarms into switch signals.
3. Supports flexible logic programming to meet diverse safety interlock and alarm strategies.
4. Drives on-site alarm devices, trip valves and safety protection execution units.
5. Realizes multi-channel combined judgment to improve equipment fault protection accuracy.
6. Guarantees rapid and reliable safety response for industrial rotating machinery failures.

Application Scenarios

1. Power plant turbine, generator and large rotating equipment monitoring and protection systems
2. Petrochemical compressor, pump and industrial machinery condition monitoring platforms
3. Industrial critical equipment abnormal alarm and automatic safety interlock scenarios
4. Harsh industrial environment high-stability signal switching and protection control systems
5. Functional upgrading and aging module replacement for 3500 series monitoring systems
