Product Description

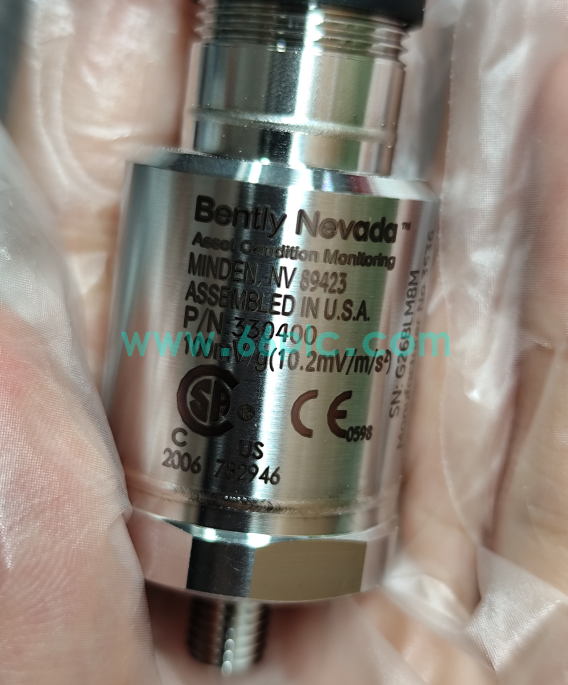

The Bently Nevada 330400-01-05 is a high-precision industrial piezoelectric accelerometer designed for casing vibration and high-frequency machinery condition monitoring applications. As a core surface-mounted vibration sensing unit for the Bently Nevada 3500 machinery protection system, it specializes in measuring casing acceleration, high-frequency vibration and gear mesh vibration of rotating and reciprocating equipment. It converts mechanical vibration acceleration into standard linear electrical output signals, providing accurate high-frequency vibration data for mechanical fault diagnosis, equipment condition trending and safety protection judgment, effectively capturing early defects such as component wear, gear abnormality and structural resonance.

Adopting shear-type ceramic piezoelectric crystal sensing architecture and integrated charge amplifier design, this accelerometer features fixed 100 mV/g high sensitivity and 50 g peak measurement range, fully complying with API 670 industrial machinery monitoring standards. It supports a wide frequency response range from 10 Hz to 15 kHz, perfectly covering high-frequency vibration characteristic signals of gears, bearings and structural components that cannot be detected by conventional displacement probes. The three-wire integrated structure simplifies field wiring while ensuring stable signal transmission. With all-stainless steel fully sealed rugged housing, it features excellent corrosion resistance, dustproof and waterproof performance, adapting to high-temperature, oily and humid harsh industrial environments. Built-in anti-interference shielding structure suppresses on-site electromagnetic noise and signal drift. With ultra-wide temperature adaptability and certified hazardous area compliance, it supports 24/7 uninterrupted high-frequency vibration monitoring for critical industrial rotating machinery systems.

Main Specifications

1. Full Part Number: 330400-01-05; Net weight:0.08KG; Product Type: Industrial piezoelectric casing vibration accelerometer sensor
2. Applicable System: Bently Nevada 3500 series machinery protection systems, industrial rotating and reciprocating equipment monitoring platforms
3. Core Function: High-frequency casing vibration, gear mesh vibration and structural acceleration signal acquisition and conversion
4. Sensing Principle: Shear-type ceramic piezoelectric crystal induction with built-in integrated charge amplifier circuit
5. Sensitivity: Fixed high precision of 100 mV/g, ensuring consistent and repeatable vibration measurement results
6. Measurement Range: Maximum 50 g peak vibration acceleration monitoring range for heavy-duty industrial equipment
7. Frequency Response: Standard 10 Hz to 15 kHz wide frequency band, covering full high-frequency fault characteristic signals
8. Compliance Standard: Strictly meets API 670 fourth-edition industrial machinery vibration monitoring specifications
9. Power Supply: Standard -24 VDC industrial power supply, matching Bently system power specification
10. Wiring Mode: Three-wire signal transmission structure for stable and low-noise data output
11. Installation Standard: 1/4-28 threaded bottom mounting design for firm surface installation on equipment casings
12. Structural Performance: Full stainless steel sealed structure, anti-corrosion, dust-proof and moisture-proof
13. Temperature Adaptability: Ultra-wide operating temperature range (-55°C to +121°C) for extreme industrial working conditions
14. Anti-Interference Ability: Professional shielding design to resist field electromagnetic interference and high-frequency signal jitter
15. Matching Performance: 100% compatible with Bently 3500 monitoring racks and vibration input modules
16. Reliability: Industry-standard machinery monitoring certification, suitable for long-cycle uninterrupted high-frequency vibration monitoring tasks

Core Functions

1. Act as the core high-frequency vibration sensing unit for Bently Nevada industrial machinery condition monitoring systems.
2. Accurately acquire equipment casing vibration and structural acceleration signals to capture high-frequency mechanical fault features.
3. Realize professional gear mesh and bearing high-frequency vibration monitoring to identify early wear and abnormal meshing faults.
4. Convert mechanical vibration into standard linear electrical signals for rear-end system analysis, trending and alarm judgment.
5. Adapt to extreme temperature and harsh industrial environments to ensure continuous and effective field high-frequency data collection.
6. Guarantee long-term stable, high-sensitivity and low-drift vibration monitoring for critical industrial rotating machinery.

Application Scenarios

1. Thermal power plant steam turbine, fan and auxiliary unit casing high-frequency vibration monitoring systems
2. Petrochemical industry large compressor, pump set and gear box precision vibration detection platforms
3. Energy industry key rotating equipment bearing wear and gear meshing abnormal early warning scenarios
4. Heavy industry and manufacturing high-speed rotating machinery structural vibration condition monitoring systems
5. Replacement and upgrading of aging Bently high-frequency accelerometer sensors for machinery protection systems
