Product Description

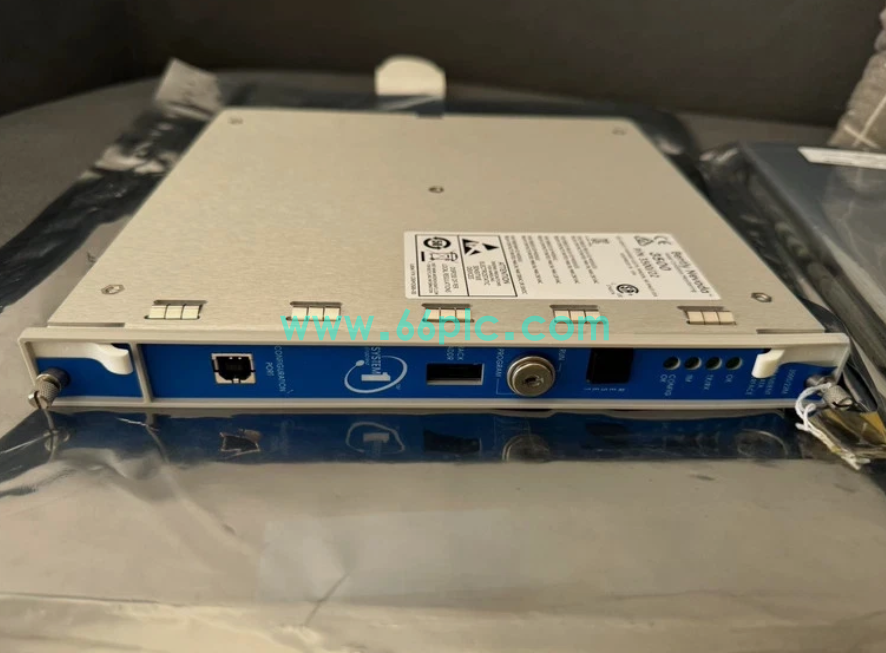

The Bently Nevada 3500/22-01-01-00 is a high-speed Transient Data Interface (TDI) module designed exclusively for the 3500 series machinery protection and condition monitoring systems. Serving as the core data communication and transmission gateway of the 3500 rack, it bridges field monitoring hardware and upper-level diagnostic software platforms. The module is dedicated to capturing, sorting and uploading high-frequency transient vibration data, dynamic waveform signals and real-time operating parameters of rotating equipment, supporting professional equipment fault diagnosis and predictive maintenance analysis.

Main Specifications

1. Full Part Number: 3500/22-01-01-00; Product Type: 3500 series dedicated transient data interface communication module
2. Applicable System: Bently Nevada 3500 machinery protection system, rotating equipment condition monitoring platform
3. Core Function: High-speed transient data acquisition, waveform signal transmission, system software docking and data diagnosis output
4. Data Performance: Ultra-high-frequency sampling and real-time transmission, supporting transient fault waveform full recording
5. Software Compatibility: Perfectly matched with System 1 diagnostic software and 3500 system configuration tools
6. Transmission Characteristic: Lossless data output, ensuring authenticity and integrity of equipment operating data
7. Diagnosis Mechanism: Built-in link self-inspection, data quality monitoring and transmission fault alarm function
8. System Docking: Support remote system configuration, parameter modification and historical data trend query
9. Status Indication: Onboard LED indicators for real-time communication and module operating status feedback
10. Maintenance Design: Support hot-swap pluggable installation for non-stop online replacement
11. Environmental Adaptability: Industrial wide-temperature design and strong electromagnetic interference resistance
12. Operational Reliability: Compliant with industrial machinery monitoring standards, low failure rate for long-term data transmission tasks

Core Functions

1. Act as the dedicated transient data transmission gateway for Bently Nevada 3500 system racks.
2. Collect high-speed transient vibration waveforms and dynamic operating data of rotating machinery in real time.
3. Transmit complete field monitoring data to System 1 platform for professional fault diagnosis and analysis.
4. Support online configuration and parameter debugging of the 3500 monitoring system via upper software.
5. Record and store equipment operation trend data to support equipment predictive maintenance work.
6. Monitor data transmission link status in real time to ensure stable and continuous data interaction.
7. Realize efficient data interaction between field monitoring modules and remote monitoring terminals.
8. Guarantee accurate data support and reliable operation basis for equipment condition assessment and fault analysis.

Application Scenarios

1. Thermal power plant turbine and generator transient vibration data monitoring and diagnosis systems
2. Petrochemical large compressors, centrifugal units and key rotating equipment monitoring platforms
3. Energy industry gas turbine unit dynamic condition analysis and predictive maintenance scenarios
4. Industrial sites requiring high-precision transient waveform acquisition and equipment fault diagnosis
5. Old 3500 system data interface module replacement and monitoring data analysis system upgrading projects
6. Harsh industrial environments with strong electromagnetic interference and long-term continuous data transmission
7. All rotating equipment condition monitoring and predictive diagnosis applications based on 3500 system architecture
