Product Description

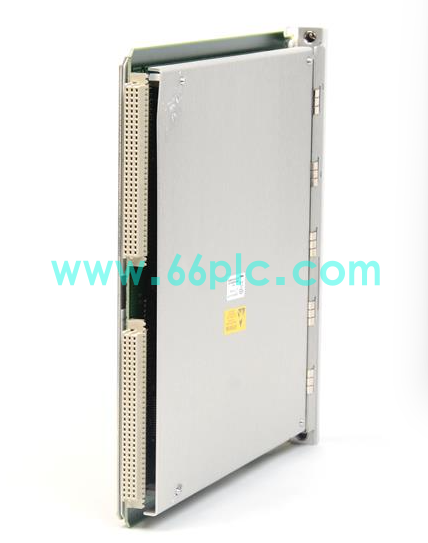

The Bently Nevada 3500/62-03-00 is a high-precision process variable monitoring module designed for the 3500 series machinery protection and condition monitoring systems. As a dedicated auxiliary signal acquisition and processing unit, it is specially developed for monitoring non-vibration process parameters of rotating machinery and industrial equipment. It accurately collects standard analog process signals on-site, converts and transmits valid data to the 3500 rack system, providing reliable condition monitoring and auxiliary protection basis for large-scale rotating equipment such as steam turbines, gas turbines and compressors.

This industrial-grade monitoring module supports mainstream 4–20mA analog signal input, adapting to various on-site process transmitters for temperature, pressure, flow and displacement parameters. It features high-resolution signal sampling and low-noise data processing capabilities, effectively filtering field signal interference and ensuring accurate and stable data output. The module integrates complete signal over-limit alarm and fault self-diagnosis functions, which can timely identify signal disconnection, overload and abnormal data deviation. Adopting standard 3500 rack plug-in design, it supports hot-swap maintenance. With industrial wide-temperature resistance and enhanced EMC anti-interference performance, it adapts to harsh industrial environments and supports 24/7 long-term continuous monitoring operation.

Main Specifications

1. Full Part Number: 3500/62-03-00; Product Type: 3500 series process variable dedicated monitoring module
2. Applicable System: Bently Nevada 3500 machinery protection system, industrial rotating equipment condition monitoring platform
3. Core Function: On-site analog process signal acquisition, data conversion, real-time monitoring and abnormal alarm diagnosis
4. Input Signal: Standard 4–20mA analog current signal, compatible with industrial process transmitters
5. Monitoring Parameters: Support temperature, pressure, flow, liquid level and other auxiliary process variable monitoring
6. Sampling Performance: High-precision low-delay sampling with stable data repeatability and low distortion
7. Alarm Logic: Configurable over-limit alarm and trip threshold to meet equipment auxiliary protection requirements
8. Diagnosis Mechanism: Built-in signal break, overload and abnormal deviation self-diagnosis and fault recording function
9. System Compatibility: Fully matched with 3500 rack system software and configuration tools
10. Maintenance Design: Support hot-swap pluggable installation for non-stop online replacement
11. Environmental Adaptability: Industrial wide-temperature and strong anti-electromagnetic interference capability
12. Operational Reliability: Strict industrial certification and aging tests, low failure rate for long-term equipment monitoring tasks

Core Functions

1. Act as the dedicated process variable monitoring unit for Bently Nevada 3500 system racks.
2. Accurately acquire 4–20mA analog signals from on-site process transmitters in real time.
3. Convert and optimize collected process data to form standard identifiable system data.
4. Realize continuous online monitoring of equipment temperature, pressure and other auxiliary parameters.
5. Trigger automatic alarm prompt when process variables exceed the preset safety threshold.
6. Detect signal circuit faults in real time and upload fault information for system diagnosis.
7. Assist vibration monitoring modules to form comprehensive equipment condition evaluation data.
8. Guarantee full-parameter safety monitoring and stable operation of industrial rotating machinery.

Application Scenarios

1. Thermal power plant turbine and auxiliary equipment process parameter monitoring systems
2. Petrochemical gas compressor and large rotating machinery condition monitoring platforms
3. Energy industry gas turbine unit auxiliary process variable acquisition and alarm scenarios
4. Industrial sites requiring full-parameter synchronous monitoring of rotating equipment vibration and process signals
5. Old 3500 system process monitoring module replacement and equipment monitoring system upgrading projects
6. Harsh industrial environments with strong electromagnetic interference and continuous long-cycle operation
7. All mechanical condition monitoring applications based on Bently Nevada 3500 system architecture
