Bently Nevada 330104-00-07-10-12-00 完整参数

模型：330104-00-07-10-12-00

产品类型：工业控制模块

应用领域：工业自动化、DCS/PLC 系统

交货方式：快速发货

包装：原厂密封包装

产地：美国

 一、型号分段精准解读（330104-00-07-10-12-00）

 1. 330104：3300 XL 8mm 电涡流探头，M10×1 公制螺纹、不锈钢铠装电缆（区别 330101 无铠美制螺纹款）

 2. 00：探头无螺纹段长度 0mm，螺纹直达探头头部

3. 07：探头壳体总长 70mm

4. 10：探头自带一体化电缆长度 1.0m

 5. 12：电缆外层金属铠装防护，耐拉扯、油污、机械磨损

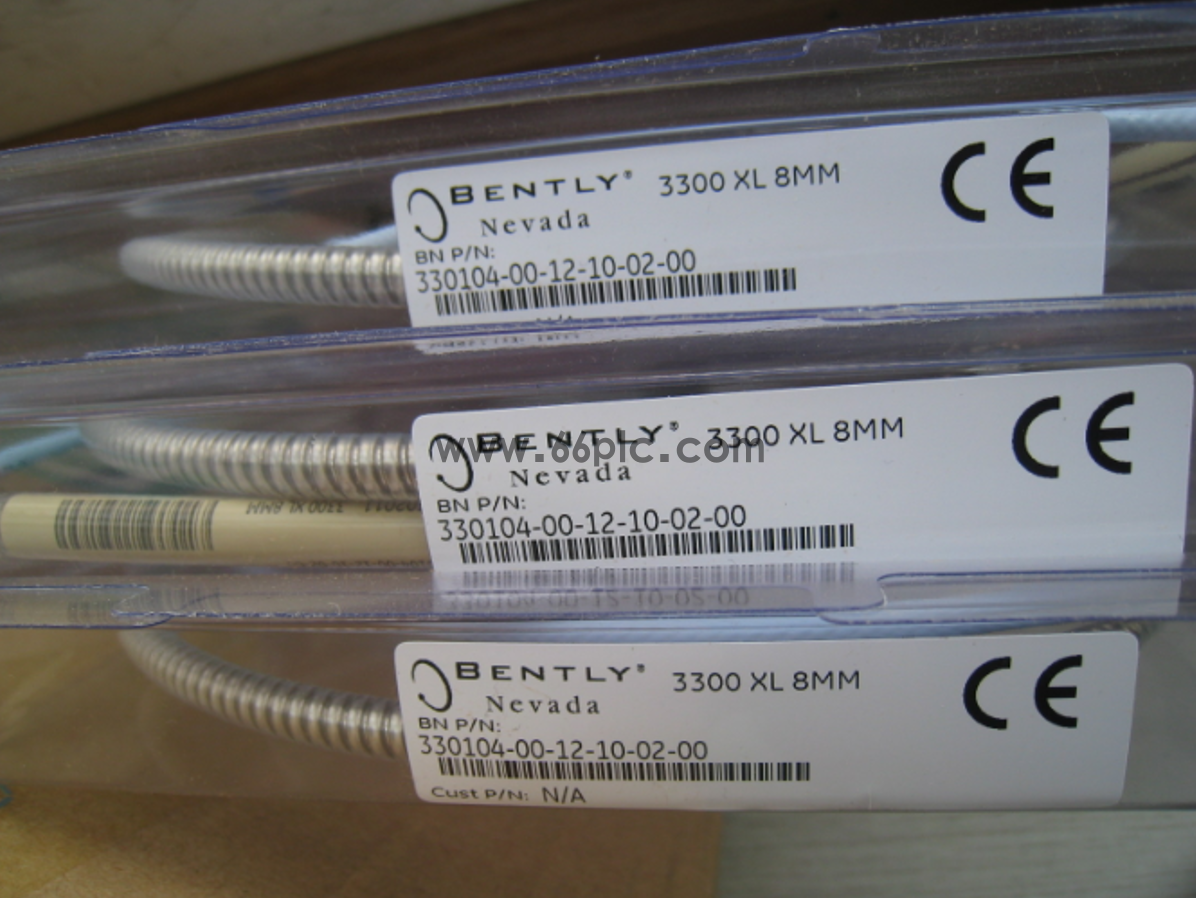

6. 00：无防爆 / 第三方认证，标准工业通用型    330104铠装探头实物    铠装线缆整体图

 二、核心技术规格

• 测量系列：3300 XL 8mm，符合 API670 旋转机械标准

 • 灵敏度：7.87 V/mm（200mV/mil）

 • 有效线性量程：0.25~2.0mm，标准安装间隙 1.27mm

• 探头外径：8mm，安装螺纹 M10×1 公制

• 供电：-17.5~-26VDC（常规 - 24VDC）

 • 工作温度：-35℃ ~ +120℃ • 频率响应：0~10kHz，覆盖机组全频段振动监测

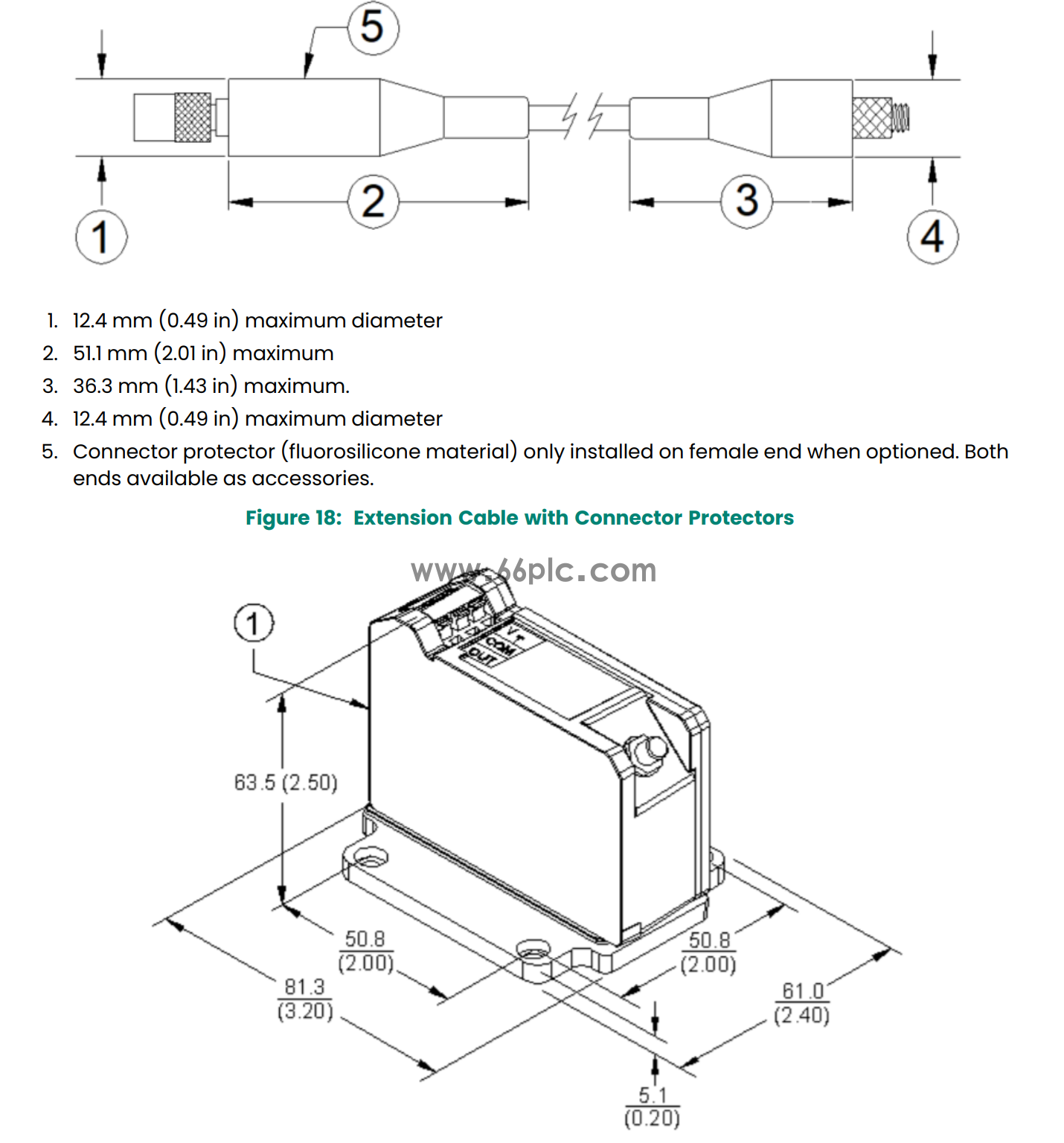

• 配套组合：330104 探头 + 330130 铠装延伸电缆 + 330180 前置器

• 用途：汽轮机、轧机、风机、压缩机轴振动 / 轴向位移 / 键相转速监测
