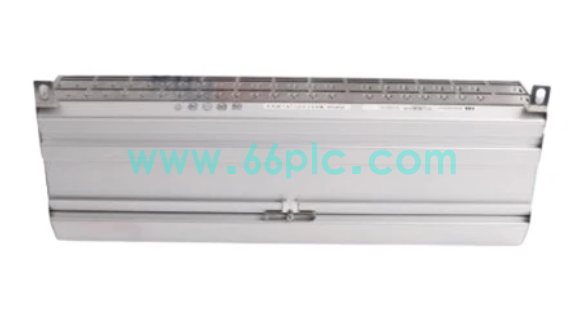

ABB GFD563A101 3BHE046836R0101 AC800PEC Excitation Control Controller Module

The GFD563A101 3BHE046836R0101 is the core high-speed control module for ABB AC800PEC power electronic control platform, specially developed for generator excitation regulation and high-speed closed-loop control. It integrates high-performance CPU+FPGA dual-core architecture, realizes millisecond-level rapid adjustment of generator excitation current, and stably maintains terminal voltage and reactive power balance of synchronous generators in thermal power, hydropower and new energy power stations.

This DIN rail-mounted modular controller supports hot-swap online maintenance without unit shutdown, built-in multi-layer surge and electromagnetic shielding circuit. It matches ABB UNITROL6000 excitation system and Symphony Plus DCS, adopts full conformal coated PCB to adapt to high-temperature, dusty and strong electromagnetic interference power plant workshop environment, with dual redundant communication bus to guarantee uninterrupted control operation.

Main Specifications

• Brand: ABB; Model: GFD563A101, Part No: 3BHE046836R0101; Series: AC800PEC Power Excitation Control System
• Core Hardware: Industrial CPU + FPGA, minimum control cycle up to 100μs for ultra-fast dynamic response
• Power Supply: 24VDC industrial power supply, typical power consumption 190mA, wide input voltage tolerance
• Communication Ports: Dual Ethernet, PROFIBUS DP, ModuleBus, support Modbus TCP/RTU, Profinet redundant transmission
• Control Accuracy: Voltage regulation precision ≤±0.2%FS, frequency measurement accuracy ±0.001Hz, analog signal error ≤0.1%FS
• Physical Installation: Standard DIN rail mounting, size 127.5×59×185mm, weight approx 0.7kg, IP20 cabinet protection
• Operating Environment: -20℃ ~ +70℃ continuous working temperature, 5%–95% RH non-condensing, anti-vibration industrial grade
• Protection Design: Overvoltage, overcurrent, overheating, excitation circuit open-circuit multi-stage hardware protection
• Configuration Tool: ABB PCM600 software for parameter calibration, logic programming and fault diagnosis

Core Functions

• Collect real-time grid voltage, generator current, rotor frequency and excitation feedback signals through multi-channel analog and digital I/O terminals.
• Execute high-speed PID excitation control algorithm, output trigger signals to power rectifier units to adjust excitation current and stabilize generator terminal voltage.
• Dual-module hot standby redundancy design, master-slave automatic switching within 20ms when main module fails to avoid generator off-grid trip.
• Full-channel self-diagnosis function detects sensor disconnection, communication interruption and power unit faults, upload alarm events to upper DCS system in real time.
• High-speed bus data interaction with monitoring HMI, store historical fault waveforms and operation curves for post-failure analysis and equipment maintenance.
• Hot-swappable modular structure allows single module replacement without powering off the entire excitation control cabinet to reduce power station downtime.

Application Scenarios

• Excitation control spare replacement for ABB UNITROL6000 generator excitation cabinets in thermal power plants, combined cycle power stations and hydropower stations.
• Grid voltage stabilization spare parts for wind power, photovoltaic new energy power stations and offshore platform power generation units.
• Maintenance backup inventory for metallurgical large motor excitation control systems, petrochemical waste heat generator control cabinets.
• Matching control module paired with AC800PEC rack, S800 I/O terminals and ABB Symphony Plus DCS monitoring system.
• Retrofit replacement components for aging excitation control systems with voltage drift, slow response and communication failure defects.

• Global aftermarket spare stock for power generation maintenance teams managing ABB generator excitation control equipment worldwide.
