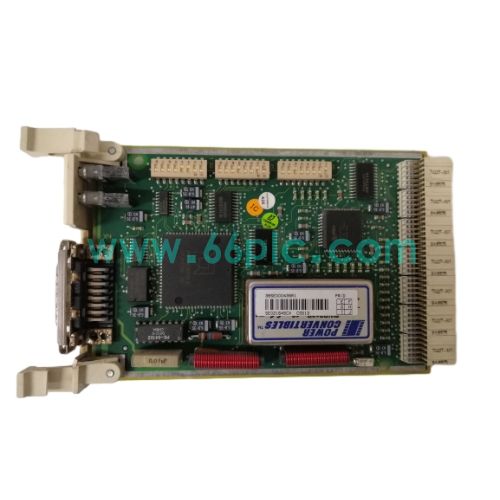

ABB CS513 3BSE000435R1 Serial Communication Module

ABB CS513 with part number 3BSE000435R1 is a serial communication module for ABB MasterPiece 200/300 and AC310/AC320/AC400 controllers. It provides RS232C and RS485 serial interfaces to connect the controller with operator terminals, printers, legacy instruments and third-party automation devices.

This module supports multiple serial protocols including Modbus RTU, SPA bus and ASCII protocols. It plugs into the rack backplane and adopts galvanic isolation design to resist field electrical interference. It is widely supplied as spare replacement parts for power, pulp & paper and chemical plant control cabinet maintenance and legacy system integration projects.

Main Specifications

1. Brand: ABB; Model: CS513; Part No: 3BSE000435R1; Type: Serial Communication Module
2. Compatible System: MasterPiece 200/300, AC310, AC320, AC400 Controller
3. Interfaces: RS232C and RS485; Supported Protocols: Modbus RTU, SPA bus, ASCII
4. Isolation: Galvanic isolation between serial port and backplane bus
5. Indicator: LED lights for power, communication running and fault status
6. Operating Temp: -25℃ ~ +55℃; Industrial EMC protection; IP20 rating
7. Supply Status: Spare serial communication module for ABB MasterPiece control rack

Core Functions

1. Establish serial communication between ABB MasterPiece controller and legacy field devices.
2. Support point-to-point and multi-drop network communication via RS485 bus.
3. Read data from serial instruments and transmit control commands from the controller side.
4. Galvanic isolation design suppresses electrical noise and protects the main controller hardware.
5. Onboard LED indicators display communication activity and fault signals for fast on-site troubleshooting.
6. Built-in communication self-diagnosis, detect connection failure, parity error and timeout alarms.

Application Scenarios

1. ABB MasterPiece 200/300 control cabinets in power, pulp & paper and chemical industries.
2. Connect old serial instruments, operator panels and printers to ABB control systems.
3. Replacement of defective serial communication modules in existing MasterPiece control racks.
4. Spare parts inventory for automation maintenance teams of process industries.
5. System retrofit and third-party device integration of legacy ABB MasterPiece control systems.
6. Water treatment and metallurgy plants needing serial protocol conversion for old automation equipment.

FAQ

1. Q: What is ABB CS513 3BSE000435R1?
   A: It is RS232/RS485 serial communication module for ABB MasterPiece 200/300 and AC400 series controllers.
2. Q: What protocols does CS513 support?
   A: It supports Modbus RTU, ABB SPA bus and ASCII serial communication protocols for legacy device connection.
3. Q: Which controllers can CS513 work with?
   A: It fits MasterPiece 200/300, AC310, AC320 and AC400 controller racks with MasterBus 300 backplane.
