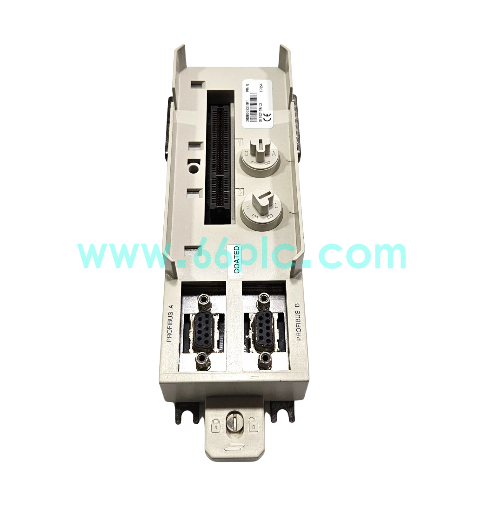

ABB TP854 3BSE025349R1 Baseplate for CI854 PROFIBUS Interface

ABB TP854 3BSE025349R1 is the baseplate designed for ABB CI854, CI854A and CI854B PROFIBUS DP-V1 communication modules within the AC800M DCS system. It comes with dual DB9 connectors to support PROFIBUS line redundancy for stable fieldbus communication between the controller and remote I/O devices.

This baseplate adopts a code lock mechanism to prevent mismatched module installation. It transfers power and CEX-bus signals to the CI854 module, widely used as spare replacement parts for AC800M system maintenance and upgrade in chemical, power and manufacturing automation projects.

Main Specifications

1. Brand: ABB; Model: TP854; Part No:3BSE025349R1; Type: Module Baseplate
2. Compatible Module: CI854, CI854A, CI854B; System: ABB AC800M DCS
3. Fieldbus: PROFIBUS DP-V1; Interface: Dual DB9 female connectors for redundant bus
4. Bus: CEX-bus for internal controller communication; Power: Supplied via CEX bus
5. Feature: Code lock to avoid wrong module insertion; Mounting: Rack slot installation
6. Operating Temp: 0℃ ~ +55℃; Storage Temp: -40℃ ~ +85℃
7. Supply Status: Spare baseplate for AC800M PROFIBUS communication system

Core Functions

1. Mechanical carrier and electrical base for CI854 series PROFIBUS communication modules.
2. Provide dual DB9 PROFIBUS ports to realize redundant fieldbus communication.
3. Transmit CEX-bus signals and power between AC800M controller and CI854 module.
4. Code lock design prevents installation of incompatible modules to protect hardware.
5. Support PROFIBUS DP-V1 protocol for remote I/O and field instrument data exchange.
6. Standard rack-mounted baseplate, convenient for quick replacement during system maintenance.

Application Scenarios

1. ABB AC800M DCS control systems with PROFIBUS DP fieldbus network.
2. Industrial process control for power plants, petrochemical and manufacturing lines.
3. Redundant PROFIBUS communication link for remote I/O and field transmitters.
4. Replacement of damaged baseplates for existing CI854 communication modules.
5. Spare parts inventory for automation maintenance teams of heavy industries.
6. System retrofit and expansion of AC800M DCS with PROFIBUS field devices.

FAQ

1. Q: What is ABB TP854 3BSE025349R1?
   A: It is the baseplate for CI854 PROFIBUS DP-V1 communication module under AC800M DCS, offering dual redundant PROFIBUS DB9 ports.
2. Q: Which modules can be fitted on TP854 baseplate?
   A: It supports CI854, CI854A and CI854B PROFIBUS communication modules only.
3. Q: What is the function of dual DB9 ports?
   A: Two DB9 connectors support PROFIBUS line redundancy, improving communication reliability for critical control loops.
