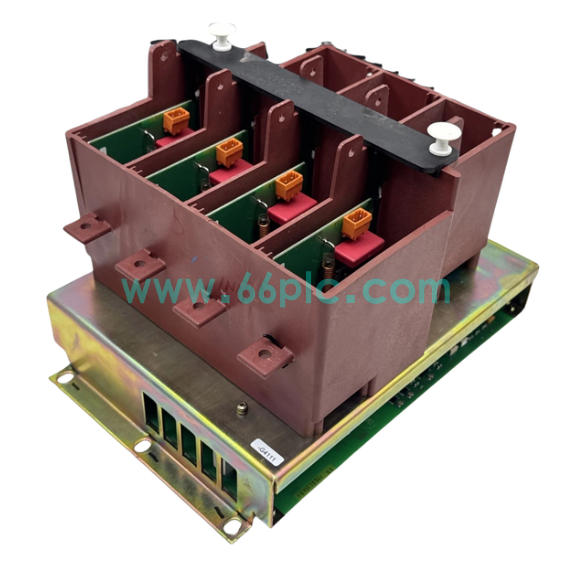

ABB KUC755AE106 3BHB005243R0106 IGCT Gate Unit Power Module

ABB KUC755AE106 with part number 3BHB005243R0106 is an IGCT gate unit power module designed for ABB medium voltage high-power converter systems. It supplies stable power and gate drive signals to IGCT power semiconductors, supporting reliable switching operation of power devices in large variable frequency drives.

This module integrates power conversion, signal isolation and fault monitoring circuits. It can detect abnormal working conditions of IGCT and feed back fault information to the main control unit. It is an essential spare part for power plant, metallurgy and mining medium voltage converter cabinet maintenance and upgrade projects.

Main Specifications

1. Brand: ABB; Model: KUC755AE106; Code:3BHB005243R0106; Type: IGCT Gate Unit Power Module
2. Application: Medium voltage high-power converter, IGCT power device gate power supply and drive control
3. Input Voltage: 100~240VAC; Built-in isolation and surge protection circuit
4. Communication: Optical fiber interface for fault signal transmission to main controller
5. Mounting: Rack mounted inside medium voltage converter cabinet
6. Operating Temperature: -20℃ ~ +70℃; IP20 protection level
7. Supply Status: Industrial spare gate power module for converter system overhaul and emergency replacement

Core Functions

1. Convert input AC power into stable working power supply for IGCT gate drive circuit.
2. Generate matched gate drive signals to control turn-on and turn-off of IGCT power semiconductor.
3. Real-time monitor IGCT and internal circuit status, detect overcurrent and short-circuit faults.
4. Transmit fault alarm signals to the main converter controller through optical fiber communication.
5. Isolation design to suppress electromagnetic interference between power circuit and control circuit.
6. Standard rack installation structure, convenient wiring and fast replacement during converter maintenance.

Application Scenarios

1. IGCT gate power supply and drive unit for ABB medium voltage high-power converter systems.
2. Fault module replacement and routine maintenance of existing ABB medium voltage drive platforms.
3. Power generation, metallurgy, mining and large industrial medium voltage motor speed regulation projects.
4. Emergency replacement for gate power module failure to restore IGCT power device driving capability.
5. Spare parts stocking for maintenance teams supporting ABB high-power converter systems.
6. Aftermarket spare supply for converter cabinet upgrade and power electronic control system reconstruction.

FAQ

1. Q: What is ABB KUC755AE106 3BHB005243R0106 used for?
   A: It is IGCT gate unit power module, providing power supply and gate drive signals for IGCT in medium voltage converters.
2. Q: What are typical module failure symptoms?
   A: No gate drive output, converter fault alarm, optical fiber communication abnormal, IGCT cannot switch normally.
3. Q: How to complete commissioning and diagnosis?
   A: Install module on converter rack, connect power cable and optical fiber, test gate signal and fault feedback with converter control software.
