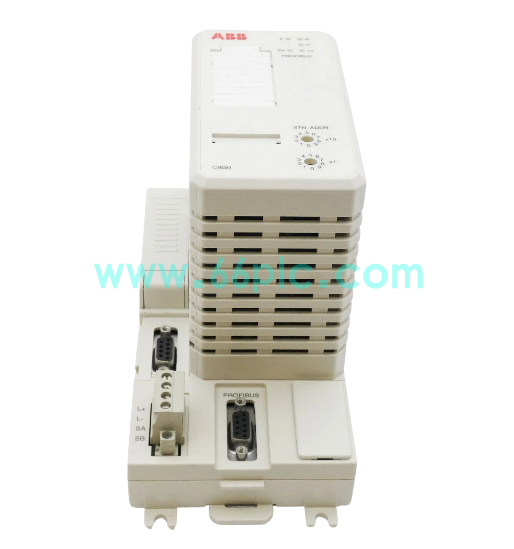

ABB CI830 3BSE013252R1 Communication Interface Module

ABB CI830 with part number 3BSE013252R1 is a Profibus-DP communication interface module designed for ABB S800 I/O and AC800M 800xA DCS systems. It acts as a gateway to realize data exchange between the DCS controller and field Profibus-DP slave devices.

This module supports Profibus-DP V1 protocol with a maximum transmission rate up to 12Mbit/s. It adopts galvanic isolation design and hot-swap capability, widely used as spare parts for process automation system maintenance and renovation projects.

Main Specifications

1. Brand: ABB; Model: CI830; Part No:3BSE013252R1; Type: Profibus-DP Communication Interface Module
2. Compatible System: ABB 800xA, AC800M controller and S800 I/O rack
3. Protocol: Profibus-DP V1; Max Baud Rate: 12 Mbit/s; Connector: M12
4. Power Supply: 24VDC; Max Power Consumption: 5W; Galvanic isolation between bus and system
5. Mounting: Standard rack mount; Support hot swap without system shutdown
6. Operating Temperature: -20℃ ~ +60℃; Suitable for industrial control cabinet environment
7. Supply Status: Industrial spare communication module for DCS system overhaul and emergency replacement

Core Functions

1. Work as Profibus-DP gateway, connect ABB 800xA DCS controller to field Profibus-DP slave instruments and I/O devices.
2. Realize high-speed cyclic data transmission between controller and field devices for real-time process control.
3. Support Profibus-DP V1 acyclic communication for device parameter configuration and diagnostic data reading.
4. Built-in galvanic isolation to block surge and interference on Profibus bus and protect the DCS main rack.
5. On-board status LED indicators for bus status, module running and fault diagnosis on site.
6. Hot swap function, technicians can replace the module without shutting down the whole DCS control system.

Application Scenarios

1. Profibus DP communication gateway unit for ABB 800xA DCS and S800 I/O automation systems.
2. Fault module replacement and routine maintenance of existing ABB Profibus DCS control platforms.
3. Power, chemical, pulp & paper and water treatment process control projects with Profibus field bus.
4. Emergency replacement for communication module failure to restore Profibus bus data transmission.
5. Spare parts stocking for maintenance teams supporting ABB 800xA distributed control systems.
6. Aftermarket spare supply for control cabinet upgrade and Profibus field bus system reconstruction.

FAQ

1. Q: Can ABB CI830 3BSE013252R1 work as Profibus master or slave?
   A: It acts as Profibus-DP master, connecting multiple Profibus slave field devices to ABB 800xA controller.
2. Q: What are typical module failure symptoms?
   A: Profibus bus communication interruption, module fault light on, unable to read field slave device data.
3. Q: How to complete commissioning and diagnosis?
   A: Insert module into S800 rack, connect M12 Profibus cable, configure bus parameters, scan slave devices and test data communication.
