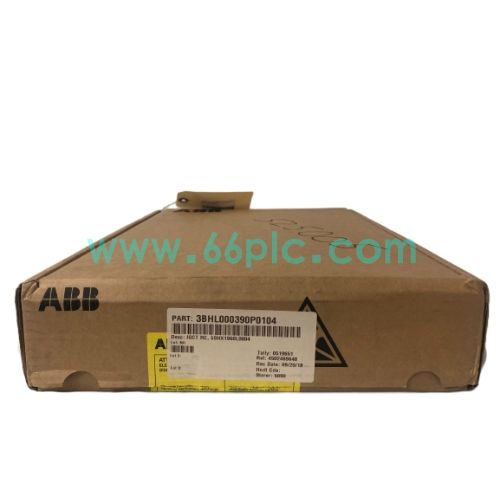

ABB 5SHX1960L0004 IGCT Power Semiconductor Module

ABB 5SHX1960L0004 is an IGCT (Integrated Gate Commutated Thyristor) high-power semiconductor module, designed for medium voltage power conversion equipment. It serves as the core power switching component for industrial drives, static var compensators and power inverter systems.

This module integrates gate drive unit and power thyristor chip, featuring low switching loss, high surge current capability and reliable short-circuit protection. It adopts compact press-pack housing for high heat dissipation performance. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of medium voltage frequency converter and power quality control systems.

Main Specifications

1. Brand: ABB; Model: 5SHX1960L0004; Type: IGCT Power Semiconductor Module
2. Compatible System: Medium voltage inverter, SVC static var compensator, high-power industrial drive and power conversion system
3. Core Functions: High-power switching, power conversion, overcurrent and short-circuit protection, fast gate commutation, heat dissipation
4. Port Resource: Main power terminals, gate signal interface, cooling contact surface
5. Supported Feature: Press-pack package, high dv/dt resistance, low switching loss, high thermal cycling stability, industrial power system EMC protection
6. Hardware Feature: Press-pack IGCT module, liquid or air cooling, cabinet power stack mounting
7. Supply Status: Aftermarket spare part for medium voltage power conversion equipment maintenance and component replacement

Core Functions

1. Realize high-power fast switching, convert DC bus voltage into adjustable AC output to drive medium-voltage motors and power grid compensation equipment.
2. Integrated gate commutated thyristor structure achieves extremely fast turn-off capability, effectively reducing switching loss and improving power conversion efficiency.
3. Built-in short-circuit protection characteristic, quickly commutate the gate current to suppress fault current and protect the whole power stack under short-circuit condition.
4. Press-pack packaging design enables double-sided heat dissipation, suitable for liquid cooling system to meet continuous high-power operation requirements.
5. High reliability chip and packaging technology can withstand high voltage and large current impact, adapting to harsh working conditions in power electronic cabinets.
6. Support series and parallel stacking combination to expand voltage and power level for large-capacity power conversion projects.

Application Scenarios

1. Core power switching unit for medium voltage inverters and SVC static var compensators used in power, mining, metallurgy and heavy industry.
2. Fault IGCT module replacement and routine maintenance of existing medium voltage power converter stacks.
3. Power semiconductor hardware upgrading and technical transformation for aging legacy high-power drive and power quality control systems.
4. Emergency swap for module failure of high-capacity medium voltage variable frequency drive and grid stabilization facilities.
5. Spare-parts stocking for power electronic maintenance teams supporting ABB IGCT power module series products.
6. Aftermarket spare supply for power converter cabinet overhaul and technical-service projects of power and heavy industrial facilities.

FAQ

1. Q: Can ABB 5SHX1960L0004 IGCT module work independently without gate drive unit and power stack?
   A: It needs matched gate drive, snubber circuit and cooling system, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Module short circuit, increased leakage current, abnormal temperature rise, failed switching action.
3. Q: How to complete commissioning and diagnosis?
   A: Check clamping pressure and cooling contact; inspect gate drive signal, test insulation resistance and perform low voltage switching test.
