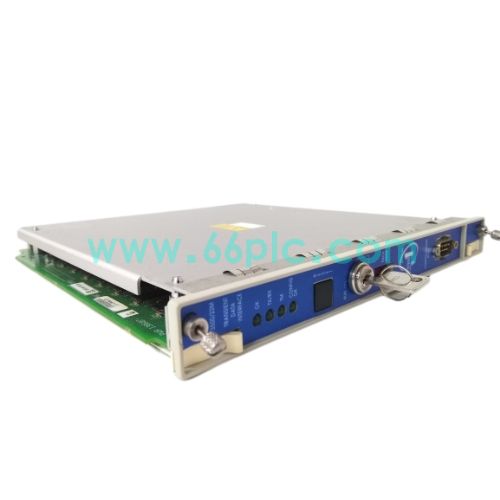

Bently Nevada 3500/22M Transient Data Interface Module

The Bently Nevada 3500/22M also known as TDI transient data interface module, is the core communication and rack interface unit for the 3500 machinery protection system. It collects steady-state and transient waveform data from all monitoring modules inside the rack, and acts as a gateway to System 1 machinery management software.

This rack plug-in module integrates the functions of RIM rack interface and communication processor. It is equipped with dual 10/100Mbps Ethernet ports and front USB port for system configuration. Front panel LED indicators and key lock switch support status indication and configuration permission control. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of power, chemical and pulp & paper machinery protection systems.

Main Specifications

1. Brand: Bently Nevada; Model: 3500/22M; Type: Transient Data Interface (TDI) Module
2. Compatible System: Bently Nevada 3500 machinery protection rack, all 3500 series monitor modules, System 1 software
3. Core Functions: Rack data aggregation, transient waveform capture, Ethernet communication, system configuration, hardware self-diagnosis, fault record, alarm output
4. Port Resource: Dual RJ45 Ethernet ports, front USB port, rack backplane connector, front panel status LEDs and key switch
5. Supported Feature: 10/100Mbps Ethernet, Modbus TCP, steady and dynamic data acquisition, configuration lock, industrial EMC protection
6. Hardware Feature: 3500 rack plug-in module, industrial grade, passive cooling, cabinet mounting
7. Supply Status: Aftermarket spare part for 3500 machinery protection system maintenance and component replacement

Core Functions

1. Communicate with all monitor modules on the 3500 rack via backplane bus and collect vibration, displacement, speed and alarm data continuously.
2. Capture high-resolution transient waveform and spectrum data for rotor dynamic analysis and equipment fault diagnosis.
3. Transmit real-time static data and dynamic waveform to System 1 diagnostic software through dual redundant Ethernet ports.
4. Support local configuration via front USB port, and key lock switch prevents unauthorized modification of rack parameters.
5. Built-in hardware self-test function to record operation logs and fault events for convenient on-site troubleshooting.
6. Front panel LED lights display power supply, running status and network alarm for quick equipment status judgment.

Application Scenarios

1. Rack communication gateway unit for Bently Nevada 3500 machinery protection system used in power, chemical, metallurgy and pulp & paper industries.
2. Fault TDI module replacement and routine maintenance of existing 3500 monitoring racks.
3. Communication hardware upgrading and technical transformation for aging legacy 3500 machinery protection systems.
4. Emergency swap for interface module failure of rotating machinery monitoring and protection facilities such as turbines, compressors and pumps.
5. Spare-parts stocking for plant vibration maintenance teams supporting Bently Nevada 3500 series products.
6. Aftermarket spare supply for machinery protection cabinet overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can Bently 3500/22M work independently without 3500 rack and monitor modules?
   A: It must be installed in the 3500 rack and cooperate with monitoring modules, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Network connection lost, unable to upload waveform data, rack configuration failure, module fault LED lit.
3. Q: How to complete commissioning and diagnosis?
   A: Check rack power supply and backplane connection; use System 1 software to download configuration, read rack status and fault history.
