ABB CI867K01 3BSE043660R1 PROFINET Communication Module

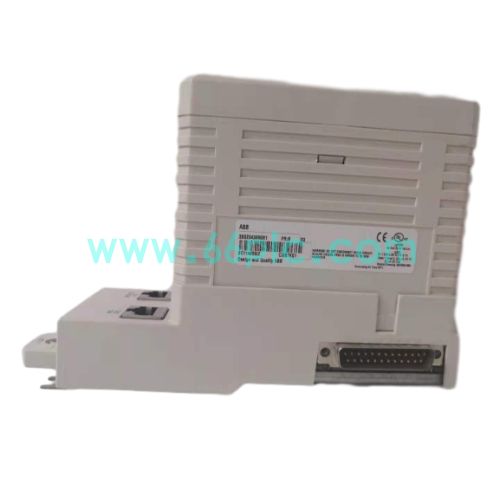

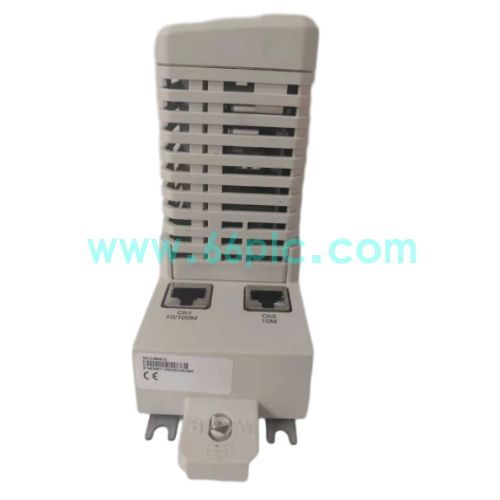

The ABB CI867K01 with part number 3BSE043660R1 is a PROFINET communication interface module for ABB AC800M DCS system. It serves as the PROFINET gateway to connect the AC800M controller with field PROFINET devices for real-time industrial Ethernet data communication.

This rack plug-in module supports PROFINET IO protocol, equipped with dual Ethernet ports for network redundancy. It features built-in link monitoring and hardware self-diagnosis. Front panel LED indicators display power, network and fault status. Hot swap is supported for online replacement. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of power, chemical and pulp & paper DCS systems.

Main Specifications

1. Brand: ABB; Model: CI867K01, Part No:3BSE043660R1; Type: PROFINET Communication Module
2. Compatible System: ABB AC800M DCS, control rack, PROFINET IO field devices
3. Core Functions: PROFINET IO communication, dual-port Ethernet redundancy, bidirectional data transmission, link monitoring, self-diagnosis, status feedback, fault alarm output, hot swap support
4. Port Resource: 2 x PROFINET Ethernet ports, backplane connector, auxiliary power terminals, front panel status LEDs
5. Supported Feature: PROFINET IO protocol, network redundancy, real-time data exchange, industrial EMC protection, hot swap capability
6. Hardware Feature: Control rack plug-in module, industrial grade, passive cooling, cabinet mounting
7. Supply Status: Aftermarket spare part for AC800M DCS system maintenance and component replacement

Core Functions

1. Act as PROFINET IO controller to establish real-time Ethernet communication between AC800M DCS and field PROFINET IO devices.
2. Transmit control commands from the DCS controller to field equipment and upload field measurement and device status data back to the controller.
3. Dual Ethernet ports support network redundancy to avoid communication interruption caused by single cable or port failure.
4. Real-time monitor PROFINET network link status, detect disconnection and device offline faults and report alarms to DCS system.
5. Front panel LED lights display power supply, network running status and fault alarm for convenient on-site inspection and troubleshooting.
6. Support hot swap operation, allowing module replacement without shutting down the whole DCS control rack.

Application Scenarios

1. PROFINET communication gateway unit for ABB AC800M DCS used in chemical, power, metallurgy and pulp & paper industries.
2. Fault communication module replacement and routine maintenance of existing AC800M control racks.
3. Industrial Ethernet hardware upgrading and technical transformation for aging legacy AC800M distributed control systems.
4. Emergency swap for communication module failure of continuously-running process industrial control facilities.
5. Spare-parts stocking for plant instrument maintenance teams supporting ABB AC800M DCS series products.
6. Aftermarket spare supply for DCS control cabinet overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ABB CI867K01 3BSE043660R1 work independently without AC800M controller and control rack?
   A: It needs to be installed in AC800M control rack and cooperate with the controller, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: PROFINET network disconnect, field device offline, data transmission interruption, module fault LED lit.
3. Q: How to complete commissioning and diagnosis?
   A: Check rack power supply and Ethernet wiring; use DCS configuration software to scan PROFINET devices, verify data exchange and fault logs.
