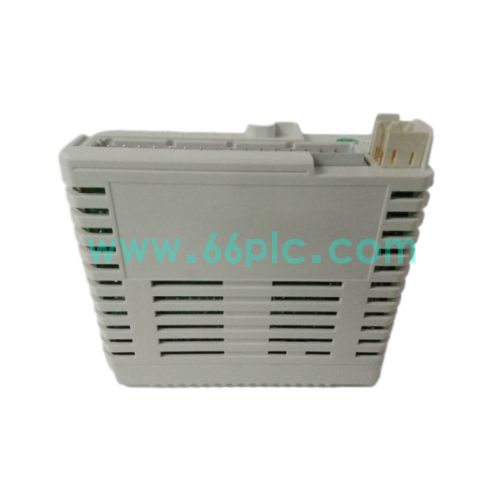

ABB AO810V2 3BSE038415R1 Analog Output Module

The ABB AO810V2 (3BSE038415R1) is an 8-channel analog output module for ABB AC 800M DCS control system. It converts digital control signals from the controller into standard analog current signals to drive field actuators, control valves and positioning devices. It provides accurate analog control output for industrial process regulation.

This module adopts compact S800 I/O series rack-mounted design, communicating with AC800M controller via Profibus DP bus. It supports channel-level fault diagnosis and short-circuit protection, with front LED indicators showing channel status and module alarms. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of power, chemical and pulp & paper DCS systems.

Main Specifications

1. Brand: ABB; Model: AO810V2, Part No:3BSE038415R1; Type: 8-Ch Analog Output Module
2. Compatible System: ABB AC800M DCS, S800 I/O rack, Profibus DP communication
3. Core Functions: Digital to analog signal conversion, 4-20mA analog output, channel fault detection, short-circuit protection, bus communication, LED status indication
4. Port Resource: 8 analog output channels, Profibus DP bus connector, power terminals, front panel status LEDs
5. Supported Feature: Galvanic isolation per channel, high precision output, channel diagnostics, hot swap support, industrial anti-interference capability
6. Hardware Feature: S800 I/O rack plug-in module, industrial grade, passive cooling, cabinet installation
7. Supply Status: Aftermarket spare part for S800 I/O DCS system maintenance and component replacement

Core Functions

1. Receive digital control commands from AC800M controller through Profibus DP field bus.
2. Convert digital values into 4~20mA standard analog current signals for field control valves and actuators.
3. Provide channel isolation and short-circuit protection to avoid damage caused by field wiring faults.
4. Realize channel-by-channel fault self-diagnosis and transmit fault information back to the DCS controller.
5. Front panel LED lights display power, communication and individual channel working status for on-site inspection.
6. Support hot swap operation, enabling module replacement without shutting down the whole control rack.

Application Scenarios

1. Analog output control unit for ABB AC800M DCS used in chemical, power, pulp & paper and metallurgy industries.
2. Fault analog output module replacement and routine maintenance of existing S800 I/O control racks.
3. I/O hardware upgrading and technical transformation for aging legacy AC800M distributed control systems.
4. Emergency swap for AO module failure of continuously-running process industrial control facilities.
5. Spare-parts stocking for plant instrument maintenance teams supporting ABB S800 I/O series products.
6. Aftermarket spare supply for DCS overhaul and technical-service projects of process industrial facilities.

FAQ

1. Q: Can ABB AO810V2 3BSE038415R1 work independently without S800 rack and AC800M controller?
   A: It needs to be installed in S800 I/O rack and communicate with AC800M controller, cannot run as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Communication loss, no analog output, output drift, channel short circuit alarm, LED fault indicator on.
3. Q: How to complete commissioning and diagnosis?
   A: Check rack power supply and Profibus wiring; use DCS control software to check channel status, output value and fault alarms.
