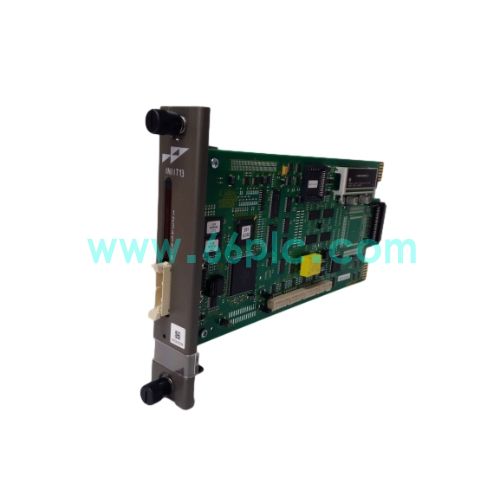

ABB INIIT13 Infi‑Net Network Transfer Module

The ABB INIIT13 is an Infi‑Net to Infi‑Net network transfer module for ABB Bailey INFI‑90 / Symphony DCS distributed control systems. It realizes interconnection between two independent Infi‑Net token‑ring networks, completes cross‑network data forwarding and message transmission among controllers, workstations and control nodes. It acts as the core network bridge for large‑scale multi‑domain DCS architecture.

This rack‑mount plug‑in module supports high‑speed token‑ring data processing, equipped with hardware self‑diagnosis and LED status indicators. It supports hot‑swap operation and can cooperate with redundant network configuration to improve system reliability. Widely used as aftermarket spare hardware for power, petrochemical and chemical industries for legacy DCS system maintenance, network expansion and technical retrofitting projects.

Main Specifications

1. Brand: ABB Bailey; Model: INIIT13; Type: Infi‑Net Network Transfer Module
2. Compatible System: ABB INFI‑90, Symphony DCS distributed control system, Infi‑Net token‑ring bus
3. Core Function: Cross‑domain Infi‑Net network interconnection, data forwarding between different token‑ring sub‑networks
4. Port Resource: Dual Infi‑Net token‑ring interfaces, backplane bus interface, status LED indicators
5. Supported Feature: Hot‑swap, hardware self‑diagnosis, redundant network matching, cross‑network message filtering and forwarding
6. Hardware Feature: Industrial rack‑mount structure, 24VDC power supply, strong anti‑interference for heavy‑industrial environment
7. Supply Status: Aftermarket spare part for legacy INFI‑90 / Symphony DCS system maintenance and component replacement

Core Functions

1. Act as network bridge between two independent Infi‑Net token‑ring sub‑networks, realize bidirectional data exchange across different DCS network domains.
2. Forward real‑time process variables, alarm events, control commands and configuration data between controllers and workstations on different token‑ring networks.
3. Filter network messages, isolate cross‑domain broadcast storm, protect operation stability of each independent Infi‑Net ring network.
4. Carry out real‑time self‑diagnosis for link and hardware status, feed network fault information back to DCS system and display via LED indicators.
5. Support hot‑swap replacement, technicians can ｒｅｐｌａｃｅ faulty module without shutting down DCS control rack, reducing plant downtime risk.
6. Provide key network hardware support for large‑scale DCS distributed architecture which requires multiple Infi‑Net ring‑net partition layout.

Application Scenarios

1. Multi‑ring‑network interconnection for ABB INFI‑90 / Symphony DCS systems in power plants, petrochemical and chemical process industries.
2. Fault network‑transfer‑module replacement and routine maintenance of existing DCS control cabinet racks.
3. Network hardware upgrading and technical transformation for aging legacy DCS distributed control systems.
4. Emergency swap for cross‑ring‑network communication failure of continuously‑running critical production control equipment on‑site.
5. Spare‑parts stocking for factory maintenance teams and automation integrators supporting ABB Bailey legacy DCS platforms.
6. Aftermarket spare supply for industrial modernization and technical‑service projects of large‑scale process‑control plants.

FAQ

1. Q: Can INIIT13 work without INFI‑90 backplane and Infi‑Net ring network?
   A: It must be inserted into INFI‑90 rack and connected with two Infi‑Net token‑ring networks, cannot complete cross‑network forwarding as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Cross‑ring‑network data transmission interruption, partial nodes cannot access devices on another ring, network link alarm, loss of cross‑domain alarm and process data.

3. Q: How to complete commissioning and diagnosis?
   A: Check 24VDC power supply and Infi‑Net ring cable connection; configure network domain parameters via DCS configuration software, observe LED status and read module diagnostic logs.
