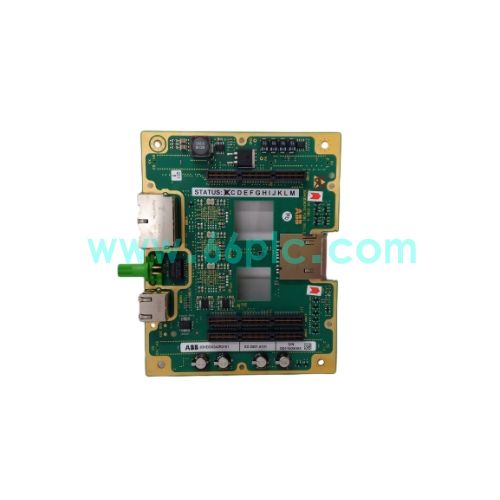

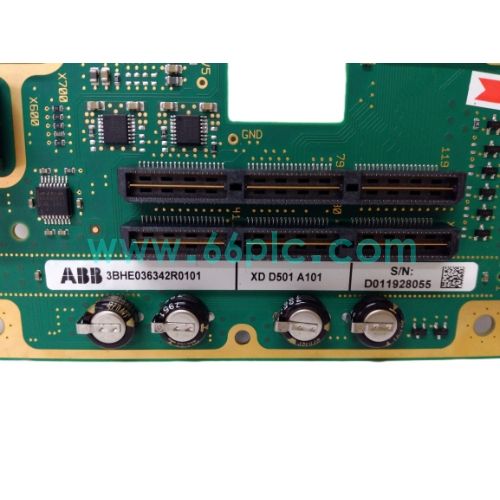

ABB XDD501A101 3BHE036342R0101 Digital Drive Control Board

The ABB XDD501A101 3BHE036342R0101 is a plug‑in digital drive control board used for ABB UNITROL excitation and ACS6000 medium‑voltage drive systems. It processes switching status feedback from power units, outputs high‑speed drive logic commands, and coordinates data interaction between the main processor and power electronic assemblies to guarantee stable closed‑loop regulation for generator excitation and variable‑frequency drive equipment.

This rack‑mount circuit board adopts conformal‑coated PCB design to resist dust, humidity and electromagnetic interference in power‑plant cabinet environments. It integrates channel monitoring and hardware fault detection circuits. Original production has been discontinued. It is widely supplied as aftermarket spare parts for thermal‑power and hydropower excitation cabinets, medium‑voltage drive cabinet maintenance and power‑electronic system retrofit projects.

Main Specifications

1. Brand:ABB; Model:XDD501A101, Part No:3BHE036342R0101; Type:Digital Drive Control Board
2. Applicable System:ABB UNITROL generator excitation system and ACS6000 medium‑voltage drive platform
3. Operating Power:24 VDC auxiliary power supplied from control rack backplane
4. Signal Interface:Multi‑channel digital input and output channels for power‑unit status acquisition and drive command output
5. Diagnostic Feature:On‑board hardware self‑diagnosis, LED status indicators for operation and fault feedback
6. Environmental Characteristic:Conformal coated PCB for harsh power‑plant cabinet operating environments
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Collect digital status feedback signals from power units and auxiliary boards and transmit valid status data to main processor board.
2. Receive control instructions from main controller and output digital drive commands to power‑electronic peripheral assemblies.
3. Complete high‑speed logic coordination and data exchange between main control hardware and power modules inside the control rack.
4. Detect signal‑channel and board‑level hardware faults, record fault events and upload diagnostic information to upper monitoring system.
5. Conformal‑coated PCB enhances dust‑proof and moisture‑proof performance for long‑term stable cabinet‑based industrial operation.
6. Serve as critical digital drive intermediate control hardware inside ABB UNITROL excitation and ACS6000 drive control racks.

Application Scenarios

1. Thermal‑power generating units, hydropower stations and other power‑plant generator excitation and medium‑voltage drive automation sites.
2. Spare digital drive control board replacement and routine maintenance of existing ABB UNITROL excitation control cabinets.
3. Technical renovation and logic‑control reliability upgrade of aging power‑electronic automation control systems.
4. On‑site troubleshooting and replacement of faulty control boards on continuously running generator and variable‑frequency drive units.
5. Spare‑parts stocking for system integrators and power‑electronic equipment professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB UNITROL and ACS6000 series legacy control hardware.

FAQ

1. Q:Can XDD501A101 3BHE036342R0101 work independently?
   A:It must cooperate with matched UNITROL or ACS6000 main‑processor hardware, standalone operation without complete rack assembly is not supported.
2. Q:What symptoms occur upon board failure?
   A:Power‑unit signal loss, drive command execution failure, system alarm and abnormal excitation or frequency‑conversion regulation may appear.

3. Q:What tool is used for parameter check and diagnostics?
   A:Diagnosis and status monitoring are completed together with host system via ABB official configuration software.
