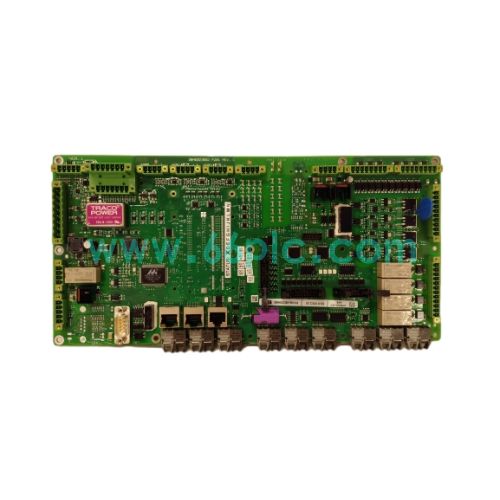

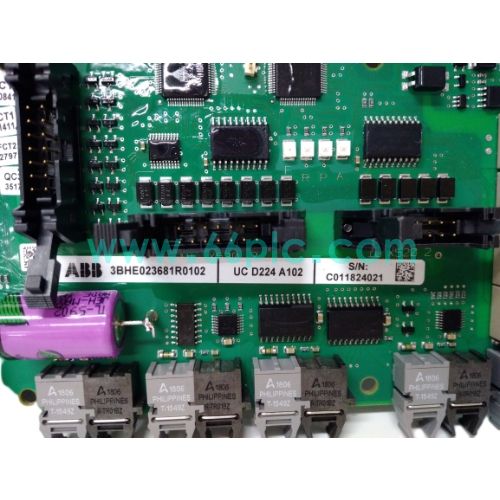

ABB UCD224A102 3BHE023681R0102 Digital Control Board

The ABB UCD224A102 3BHE023681R0102 is a rack‑mount digital control board for ABB UNITROL excitation and ACS6000 medium‑voltage drive systems. It executes digital control sequences, processes status feedback signals from power units, outputs switching and drive control commands, and realizes logic coordination between main processor and power electronic units for generator excitation and frequency‑conversion regulation.

This plug‑in circuit board adopts conformal‑coated PCB to resist dust and humidity inside power‑plant cabinets, and integrates comprehensive hardware monitoring and fault reporting circuits. Original production has been discontinued. It is widely supplied as aftermarket spare parts for thermal‑power generator excitation cabinets and medium‑voltage drive cabinet maintenance and technical‑retrofit projects.

Main Specifications

1. Brand:ABB; Model:UCD224A102, Part No:3BHE023681R0102; Type:Digital Control Board
2. Applicable System:ABB UNITROL generator excitation system and ACS6000 medium‑voltage drive platform
3. Operating Power:24 VDC auxiliary power supplied from control rack backplane
4. Signal Interface:Multi‑channel digital input and output channels for power‑unit status acquisition and command output
5. Diagnostic Feature:On‑board self‑diagnosis, fault status LED indicators and alarm signal feedback
6. Environmental Characteristic:Conformal coated PCB for harsh power‑plant control cabinet operating conditions
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Collect digital status feedback signals from power units and auxiliary boards and transmit valid data to main processor board.
2. Receive control instructions from main controller and output digital switching commands to power‑electronic peripheral units.
3. Complete high‑speed logic coordination and data interaction between internal rack main control hardware and power modules.
4. Detect channel abnormalities and board hardware faults, record fault events and feed diagnostic information to upper monitoring system.
5. Conformal‑coated circuit board improves dust‑proof and moisture‑proof performance for long‑term stable cabinet‑based operation.
6. Serve as important digital logic intermediate control hardware inside ABB excitation and medium‑voltage drive control racks.

Application Scenarios

1. Thermal‑power generating stations, hydropower stations and industrial medium‑voltage drive power‑control sites.
2. Spare digital control board replacement and routine maintenance of existing ABB UNITROL excitation control cabinets.
3. Technical renovation and signal‑logic reliability upgrade of aging power‑electronic automation control systems.
4. On‑site troubleshooting and replacement of faulty control boards on continuously running generator and drive units.
5. Spare‑parts stocking for system integrators and power‑electronic equipment professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB UNITROL and ACS6000 series legacy hardware.

FAQ

1. Q:Can UCD224A102 3BHE023681R0102 run independently?
   A:It must work with matched main processor boards of UNITROL or ACS6000 system, standalone operation is not supported.
2. Q:What abnormal phenomena will occur upon board failure?
   A:Power‑unit signal loss, command execution failure, system alarm and excitation or drive regulation disorder may appear.

3. Q:Is this ABB digital control board still in original production?
   A:ABB original manufacturing has been discontinued, only tested surplus and refurbished spare units are available.
