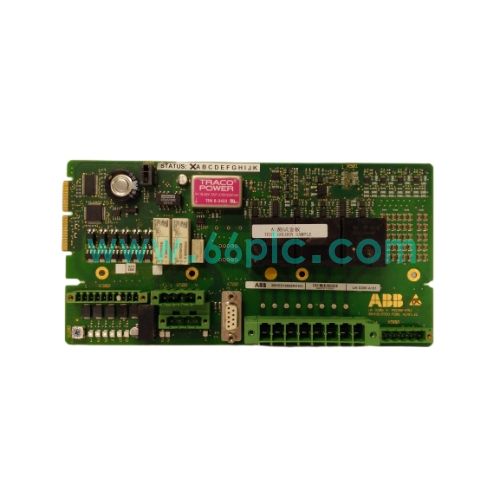

ABB UAD206A101 3BHE019958R0101 Mixed I/O Interface Board

The ABB UAD206A101 3BHE019958R0101 is a plug‑in mixed input‑output interface board for ABB AC800PEC power electronic control and UNITROL generator excitation systems. It collects field analog and digital feedback signals, outputs control drive signals, and realizes signal conversion and data transmission between main processor board and on‑site power‑unit peripherals for generator excitation and medium‑voltage drive closed‑loop regulation.

This rack‑mount circuit board adopts conformal‑coated PCB technology to resist dust and humidity in power‑plant cabinet environments, and integrates hardware signal conditioning and self‑diagnosis monitoring circuits. Original production has been discontinued. It is widely supplied as aftermarket spare parts for thermal‑power generator excitation cabinets and medium‑voltage drive control cabinet maintenance and technical‑renovation projects.

Main Specifications

1. Brand:ABB; Model:UAD206A101, Part No:3BHE019958R0101; Type:Mixed I/O Interface Board
2. Applicable System:ABB AC800PEC power‑electronic platform and UNITROL series generator excitation systems
3. Bus Interface:Proprietary backplane interface for high‑speed data exchange with main processor board
4. Signal Function:Multi‑channel analog signal conditioning and digital input‑output signal transmission
5. Diagnostic Feature:On‑board hardware self‑diagnosis, fault status LED indicators and alarm signal feedback
6. Environmental Characteristic:Conformal coated PCB for harsh power‑plant control cabinet operating conditions
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Condition multi‑channel analog feedback signals from power units and field sensors and transmit processed data to main controller board.
2. Receive control commands from processor board and convert signals to drive‑level output for power‑electronic unit peripheral equipment.
3. Complete high‑speed data interaction between rack‑internal main control board and power‑unit hardware via backplane bus interface.
4. Monitor board hardware operating status, detect signal‑channel abnormalities, record fault events and feed diagnostic information upward.
5. Conformal‑coated circuit board improves dust‑proof and moisture‑proof performance to adapt long‑term operation in power‑plant cabinet environment.
6. Serve as critical mixed‑signal input‑output intermediate hardware inside ABB excitation and medium‑voltage drive control racks.

Application Scenarios

1. Thermal‑power generating units, hydropower stations and industrial medium‑voltage frequency‑conversion power‑control sites.
2. Spare I/O interface board replacement and routine maintenance of existing ABB UNITROL excitation control cabinets.
3. Technical renovation and signal‑acquisition reliability upgrade of aging power‑electronic automation control systems.
4. On‑site troubleshooting and replacement of faulty interface boards on continuously running generator and drive equipment.
5. Spare‑parts stocking for system integrators and power‑electronic equipment professional maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB UNITROL and AC800PEC series legacy hardware.

FAQ

1. Q:Can UAD206A101 3BHE019958R0101 work independently?
   A:It must cooperate with matched processor boards of AC800PEC / UNITROL system, standalone operation is not supported.
2. Q:What failure symptoms will occur if this interface board is damaged?
   A:Loss of field signal acquisition, control‑command failure, system alarm and excitation‑regulation abnormality may be triggered.

3. Q:Is this ABB mixed I/O interface board still in original production?
   A:ABB original manufacturing has been discontinued, only tested surplus and refurbished spare units are available.
