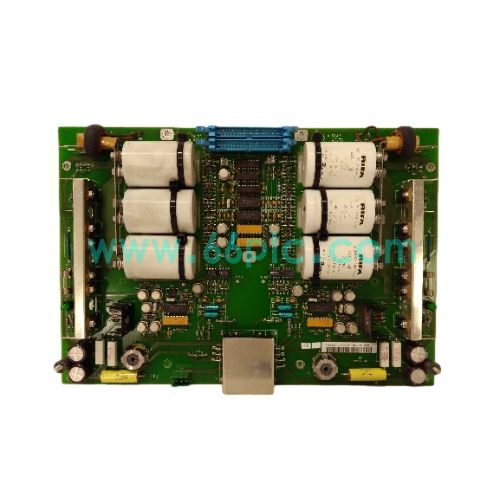

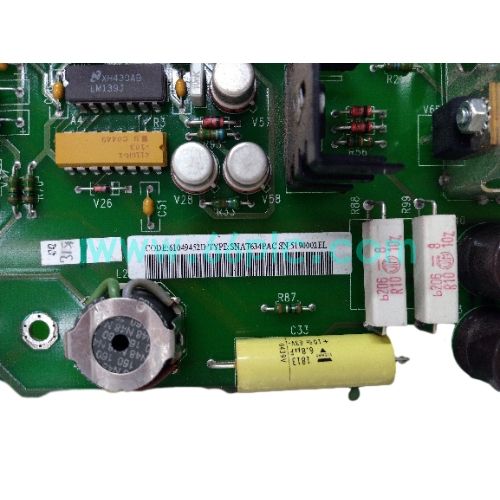

ABB SNAT634PAC 61049452D Pulse Amplifier Board

The ABB SNAT634PAC 61049452D is a dedicated pulse amplifier board designed for ABB DCS800 series DC drives. It receives weak trigger pulse signals from the main control board, amplifies and shapes the pulses, and drives the thyristor power rectifier to realize stable DC speed regulation.

This plug‑in PCB features pulse isolation and short‑circuit protection circuits to avoid damage caused by power‑side surges. Original production has been discontinued. It is widely supplied as aftermarket spare parts for metallurgical, paper and heavy‑industry DC drive cabinet maintenance and technical transformation projects.

Main Specifications

1. Brand:ABB; Model:SNAT634PAC, Part No:61049452D; Type:Drive Pulse Amplifier PCB
2. Applicable System:ABB DCS800 digital DC variable‑speed drive units
3. Core Function:Pulse signal amplification, waveform shaping and thyristor triggering
4. Protection Design:Built‑in pulse short‑circuit protection and surge suppression components
5. Internal Interface:Matched with DCS800 main control board via dedicated backplane connectors
6. Installation:Plug‑in structure, installed inside the power section of the drive cabinet
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive low‑level trigger pulse commands transmitted from the DCS800 main control board.
2. Amplify and reorganize the pulse waveform to meet the driving requirements of high‑power thyristors.
3. Control the turn‑on angle of the power rectifier to adjust the output voltage of the DC drive.
4. Detect pulse circuit faults and feed back abnormal status to the upper control board in real time.
5. Isolate high‑voltage power circuits from weak‑signal control circuits to reduce electromagnetic interference.
6. Act as the power pulse driving link between the main controller and the thyristor power unit.

Application Scenarios

1. Metallurgical rolling mills, paper machines, mine hoists and heavy‑duty DC motor speed control equipment.
2. Spare pulse amplifier board replacement and routine maintenance of existing DCS800 drive racks.
3. Technical renovation and operational stability improvement of aging large‑power DC drive systems.
4. On‑site troubleshooting and replacement of faulty trigger boards on continuous heavy industrial production lines.
5. Spare‑parts stocking for system integrators and professional ABB DC drive maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB legacy DC drive hardware.

FAQ

1. Q:What is the difference between SNAT634PAC and 61049452D?
   A:SNAT634PAC is the printed circuit board model, and 61049452D is the official ABB spare part number.
2. Q:Can this pulse board be used separately without the main control board?
   A:No, it only amplifies trigger pulses and cannot independently complete motor speed regulation.

3. Q:Is this pulse amplifier board still in original production?
   A:ABB has stopped manufacturing this model, only tested surplus and refurbished spare units are available.
