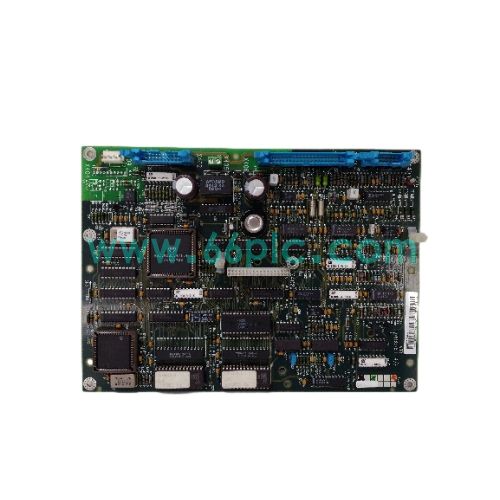

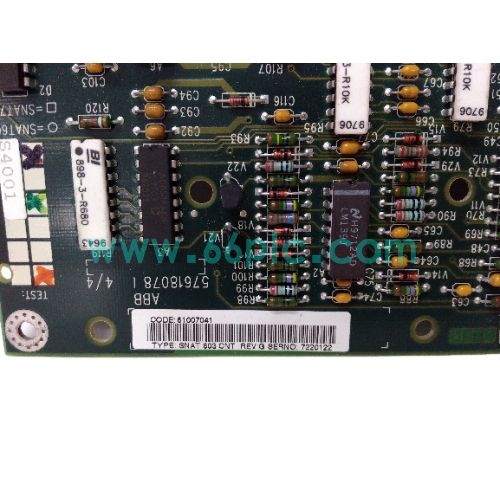

ABB SNAT603CNT 61007041 DC Drive Control Board

The ABB SNAT603CNT 61007041 is a main control board for ABB DCS800 series DC drives. It processes speed and current feedback signals, executes closed‑loop speed regulation algorithms and sends pulse commands to the power rectifier unit to control DC motor operation.

This plug‑in PCB communicates with terminal interface boards and external monitoring systems, and integrates complete drive protection logic. Original production has been discontinued. It is widely used as aftermarket spare parts for paper, metallurgy and heavy‑industry DC speed control cabinet maintenance and upgrading.

Main Specifications

1. Brand:ABB; Model:SNAT603CNT, Part No:61007041; Type:DCS800 DC Drive Main Control PCB
2. Applicable Equipment:ABB DCS800 series digital DC variable speed drive units
3. Control Mode:Closed‑loop speed and current double‑loop regulation for DC motors
4. Signal Interface:Backplane connector for data exchange with terminal and power boards
5. Protection Logic:Overcurrent, overspeed, overheating and field loss fault detection functions
6. Installation:Plug‑in design, installed inside the DCS800 drive cabinet backplane slot
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Collect real‑time speed and armature current feedback signals from the DC motor.
2. Calculate control output according to set speed and feedback value to realize stable speed regulation.
3. Generate trigger pulses to control the conduction angle of the thyristor power rectifier.
4. Detect abnormal operating conditions and trigger protection shutdown to avoid equipment damage.
5. Transmit operating parameters and fault codes to the upper monitoring system for diagnosis.
6. Act as the core computing and command‑issuing board of the DCS800 DC drive system.

Application Scenarios

1. Paper machines, metallurgical rolling lines, mine hoists and heavy‑duty DC motor driving equipment.
2. Spare main control board replacement and daily maintenance of existing DCS800 drive cabinets.
3. Technical renovation and performance optimization of aging large‑power DC variable‑speed drive systems.
4. On‑site troubleshooting and replacement of faulty control boards on continuous heavy industrial production lines.
5. Spare‑parts stocking for system integrators and professional ABB DC drive maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB legacy DC drive hardware.

FAQ

1. Q:What is the relationship between SNAT603CNT and 61007041?
   A:SNAT603CNT is the circuit board model, 61007041 represents the official ABB spare part number.
2. Q:Can this board be applied to ABB ACS800 AC drives?
   A:No, it is exclusively developed for DCS800 DC drives and cannot be compatible with AC drive products.

3. Q:Is this DC drive main control board still in production?
   A:ABB has stopped producing this board, only tested surplus and refurbished spare units can be supplied.
