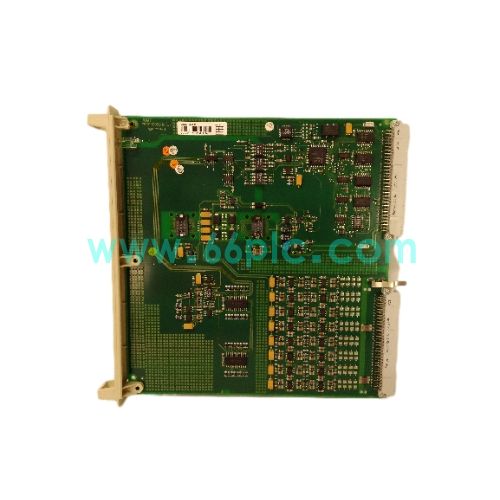

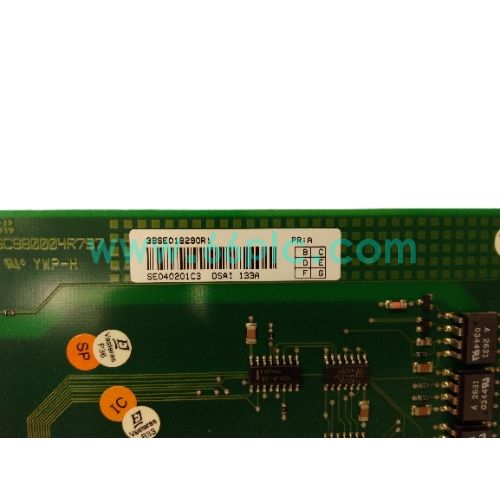

ABB DSAI133A 3BSE018290R1 Analog Input Module

The ABB DSAI133A, part number 3BSE018290R1, is an analog input module for ABB legacy distributed control systems. It collects 4‑20mA analog signals from field transmitters and converts them into digital data for DCS controllers to realize continuous process monitoring.

This plug‑in rack module is equipped with channel isolation and wire‑break diagnostic function. Original production has been discontinued. It is widely used as aftermarket spare parts for maintenance and technical transformation of DCS cabinets in power, chemical and paper industries.

Main Specifications

1. Brand:ABB; Model:DSAI133A, 3BSE018290R1; Type:Analog Input Module
2. Input Signal:4‑20mA standard current signal from field measurement transmitters
3. Installation Mode:Plug‑in rack mounting, data transmission via backplane bus
4. Diagnostic Function:Wire‑break detection, channel fault monitoring and front‑panel LED status
5. Anti‑interference Design:Electrical isolation between channels and backplane bus
6. Applicable System:ABB old‑generation DCS rack control system
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Receive analog current signals of temperature, pressure, flow and liquid level transmitters on site.
2. Complete analog‑to‑digital conversion and upload measurement data to the DCS main controller.
3. Detect open circuit faults of field signal loops and feed back fault information to the operator station.
4. Adopt isolation circuit to reduce electromagnetic interference and ensure stable signal acquisition.
5. Support channel range configuration and calibration through DCS configuration software.
6. Realize front‑end signal collection of analog monitoring loops in distributed control systems.

Application Scenarios

1. Real‑time process monitoring for thermal power plants, chemical plants and papermaking production lines.
2. Spare parts replacement and daily maintenance of existing ABB DSAI series DCS racks.
3. Technical renovation and anti‑interference upgrading of aging distributed control cabinets.
4. On‑site troubleshooting and replacement of faulty analog input modules in continuous production units.
5. Spare‑parts stocking for system integrators and professional ABB DCS maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete ABB DCS automation hardware.

FAQ

1. Q:What is the difference between model and part number?
   A:DSAI133A is the module model, and 3BSE018290R1 is the official ABB spare part code.
2. Q:Can it detect broken 4‑20mA signal lines?
   A:Yes, it has built‑in wire break diagnosis and can send fault alarms to the control system.

3. Q:Is this analog input module still in production?
   A:ABB has stopped producing this module, only tested surplus and refurbished spare units are available.
