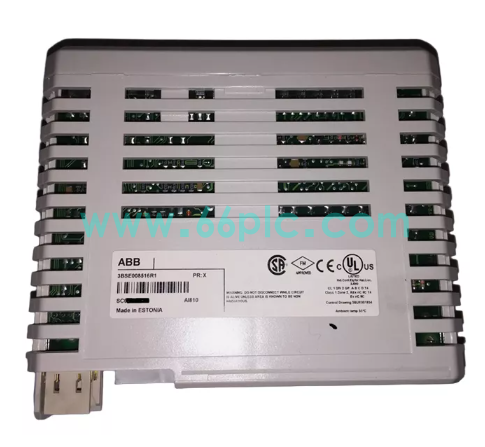

ABB AI810 3BSE008516R1 Analog Input Module

The ABB AI810 3BSE008516R1 is an 8‑channel single‑ended analog input module of the S800 I/O system, designed for ABB AC800M and 800xA DCS platforms. It acquires standard 4‑20mA and 0‑10V analog signals from field transmitters and converts analog measurements into digital data for the system controller.

This module adopts group isolation and built‑in PTC self‑reset overcurrent protection. It supports hot swapping and comprehensive channel diagnosis to guarantee reliable signal acquisition under harsh industrial interference. It is widely stocked as spare parts for DCS cabinet overhaul, system upgrade and on‑site replacement.

Main Specifications

• Brand: ABB; Model:AI810; Part Number:3BSE008516R1; Type:8‑Channel Single‑Ended Analog Input Module
• Input Signal:4‑20mA / 0‑20mA, 0‑10V / 2‑10V DC; 12‑bit A/D conversion resolution
• Isolation:Eight channels share one group isolation from ground
• Impedance:250Ω for current input, 290kΩ for voltage input; 24VDC power supply
• Function:Field analog signal sampling, A/D conversion, channel configuration and fault detection
• Feature:Hot‑swappable, PTC overcurrent protection, LED running and fault indicators
• Matching terminal unit:TU810 or TU830 series terminal block
• Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing

Core Functions

• High‑precision collection of pressure, flow, liquid level and temperature signals from site transmitters.
• Software configuration of each channel to switch between current input mode and voltage input mode.
• Continuous online self‑diagnosis to identify module failure, wire break and abnormal input signals.
• Hot‑swap maintenance, allowing replacement without stopping the whole DCS control system.
• Transmit digital data to AC800M controller through S800 I/O backplane bus communication.
• Group isolation design restrains on‑site electromagnetic interference and improves control stability.

Application Scenarios

• I/O expansion hardware for ABB 800xA and AC800M distributed control systems.
• Critical spare components for DCS cabinet maintenance in power, chemical, pulp and paper plants.
• Retrofit and replacement parts for aging S800 I/O rack renovation and faulty module upgrading projects.
• Real‑time process monitoring in water treatment, metallurgy and continuous industrial production lines.
• Field analog signal acquisition equipment for process control and equipment condition monitoring systems.

• Global aftermarket spare supply for maintenance teams servicing ABB S800 series automation hardware.
