ABB CP430T‑ETH 1SBP260196R1001 HMI Touch Control Panel

The ABB CP430T‑ETH (1SBP260196R1001) is an industrial HMI touch control panel for ABB automation platforms. Equipped with a 5.7‑inch TFT color touch display and built‑in Ethernet port, it realizes real‑time process monitoring, parameter modification and alarm management for on‑site operators, supporting stable network communication with PLC controllers.

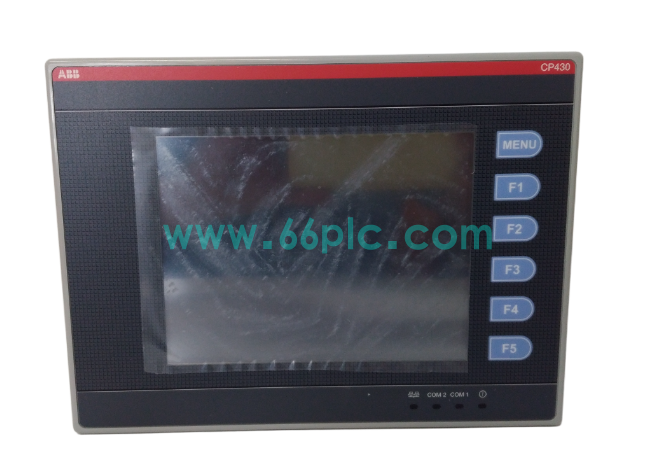

This panel‑mount operator terminal comes with menu key and five configurable function keys, front‑panel IP65 protection for dust‑proof and splash‑proof performance. It acts as critical aftermarket spare for maintenance, overhaul and retrofitting of manufacturing, water‑treatment and small‑process‑control automation cabinets.

Main Specifications

• Brand: ABB; Model:CP430T‑ETH 1SBP260196R1001; Type: Industrial Touch HMI Operator Panel
• Display:5.7‑inch TFT color touch screen; Operation: touch screen + physical function keys
• Communication: On‑board Ethernet interface, serial port, compatible with ABB PLC automation systems
• Power Supply:24 VDC; Front‑panel protection grade: IP65 for cabinet‑front installation
• Function: Process‑data visualization, parameter setting, alarm pop‑up, event log storage, operation monitoring
• Feature: Cabinet flush‑mount, downloadable HMI project, industrial anti‑interference hardware design
• Operating Environment:0℃ ~ +50℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for industrial automation HMI applications

Core Functions

• Real‑time display of field process values, equipment running status and trend data from connected automation controllers.
• Support touch‑screen and physical shortcut‑key operation to complete parameter adjustment and manual command output on site.
• Trigger pop‑up alarm prompts and store event logs for equipment fault tracing and production‑record review.
• Carry out high‑speed data interaction with upper‑level PLC via built‑in Ethernet to guarantee stable field‑operation response.
• Support HMI project download, backup and restore for equipment commissioning and spare‑part replacement work.
• IP65 front‑panel structure adapts to dust‑prone workshop environment for long‑term cabinet‑mounted operation.

Application Scenarios

• On‑site human‑machine operation terminal for ABB PLC‑based factory automation control systems.
• HMI monitoring unit for manufacturing lines, water‑treatment plants and small‑scale process‑control cabinet rooms.
• Retrofit and spare replacement for legacy CP400‑series ABB operator‑panel hardware platforms.
• Automation cabinet overhaul, HMI project debugging and faulty touch‑panel replacement projects.
• Spare‑parts inventory for industrial automation integrators and electrical engineering contractors.

• Global aftermarket spare supply for technical teams maintaining ABB industrial HMI hardware.
