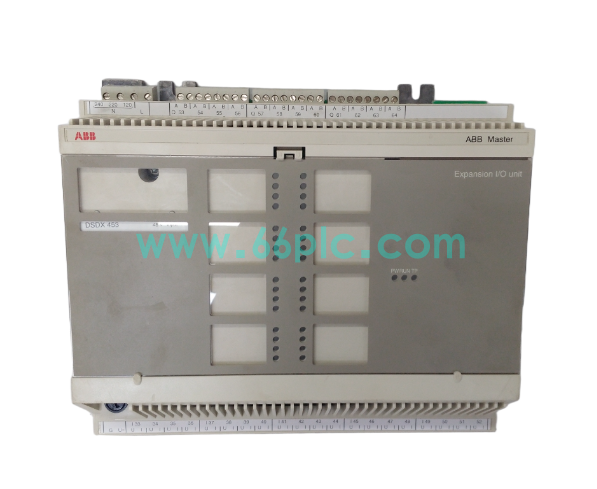

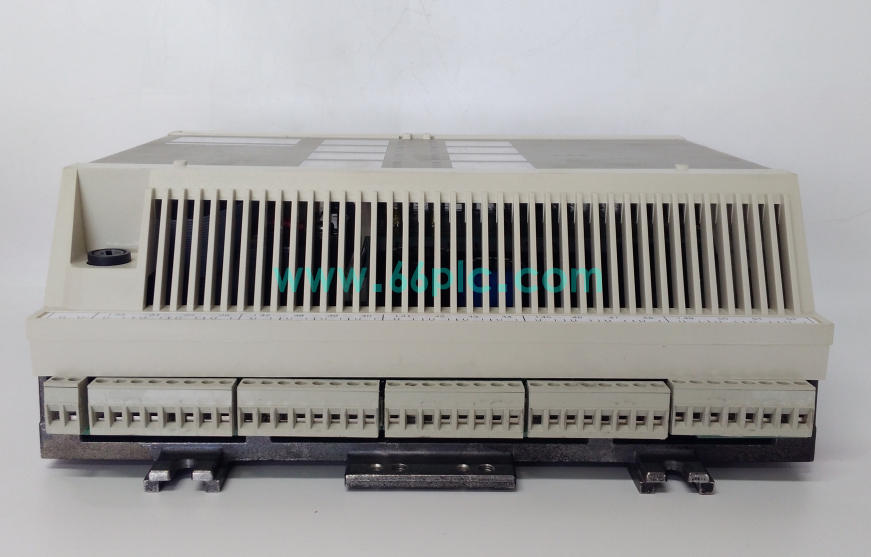

ABB DSDX453 5716075‑AN Digital Input‑Output Module

The ABB DSDX453 5716075‑AN is a combined digital input‑output module for ABB industrial control system. It acquires field digital switch signals and outputs switching drive signals, completing logic interaction between controller and field on‑site devices.

This module adopts opto‑coupler isolation design to resist industrial electromagnetic interference, supporting stable signal acquisition and load driving. It serves as common spare part for maintenance and retrofitting of legacy ABB automation control cabinets.

Main Specifications

• Brand: ABB; Model:DSDX453 5716075‑AN; Type: Digital Input‑Output Module
• Applicable System: ABB legacy industrial control system chassis
• Signal Type: Multi‑channel discrete digital input and digital output
• Function: Field switch signal acquisition, opto‑isolation and field load driving
• Feature: Channel isolation, over‑current protection for output channels
• Installation: Slot‑mounted inside control rack back‑plane
• Operating Environment: 0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE, compliant with industrial automation standards

Core Functions

• Collect field push‑button, limit switch and relay contact digital input signals.
• Receive logic instructions from main controller and output switching signals to drive field actuators.
• Optocoupler isolation separates field circuit from internal control circuit for anti‑interference performance.
• Detect channel abnormal status and feed back fault information to control system.
• Backplane bus connection supports quick plug‑in replacement for on‑site maintenance work.
• Compatible with corresponding ABB configuration software for I/O address setup and diagnosis.

Application Scenarios

• Legacy automation control cabinets built on ABB industrial control platform.
• Digital signal acquisition and actuator control for power, chemical and metallurgy industries.
• Retrofit and spare replacement of ABB legacy DCS and PLC automation platforms.
• Industrial control equipment overhaul and mixed I/O channel fault repair projects.
• Spare parts inventory for automation integrators and engineering contractors.

• Global aftermarket spare supply for technical teams maintaining ABB industrial hardware.
