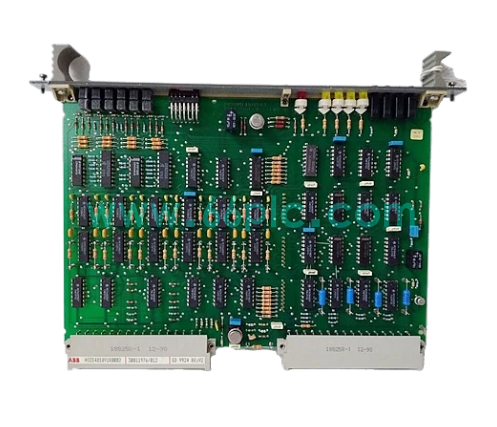

ABB GD9924BE/V2 Gate Drive Unit

The ABB GD9924BE/V2 is a high‑performance gate drive unit for ABB medium‑voltage drive and excitation systems. It generates driving pulse signals for power semiconductor devices, realizing reliable triggering and protection of power modules.

This V2 version gate drive board optimizes drive performance and fault detection logic, with short‑circuit and over‑current protection functions. It is a critical maintenance spare for medium‑high voltage converters and generator excitation cabinets.

Main Specifications

• Brand: ABB; Model: GD9924BE/V2; Type: Gate Drive Unit
• Applicable Equipment: Medium‑voltage frequency converters and UNITROL excitation systems
• Function: Power semiconductor driving, pulse output and hardware fault protection
• Version: V2 revised version with enhanced driving and diagnostic capability
• Installation: Installed inside power cabinet matching with power phase modules
• Operating Environment: 0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE, compliant with industrial power electronic equipment standards

Core Functions

• Receive control pulse signals from main control board and drive power semiconductor devices.
• Real‑time monitor power device working status and detect short‑circuit and over‑current faults.
• Quickly output fault feedback signal to main controller once abnormal condition occurs.
• Provide galvanic isolation between low‑voltage control side and high‑voltage power side.
• V2 revision improves anti‑interference performance for complex industrial high‑voltage cabinets.
• Modular unit for convenient replacement during on‑site equipment maintenance.

Application Scenarios

• Medium‑voltage converter cabinets for metallurgy, mining, cement and power plants.
• Generator excitation systems of thermal power, hydropower and industrial self‑generation stations.
• Retrofit and spare replacement of legacy ABB high‑power drive and excitation platforms.
• Preventive maintenance and fault repair for high‑power power electronic equipment.
• Spare parts inventory for power automation integrators and engineering contractors.

• Global aftermarket spare supply for technical teams maintaining ABB power hardware.
