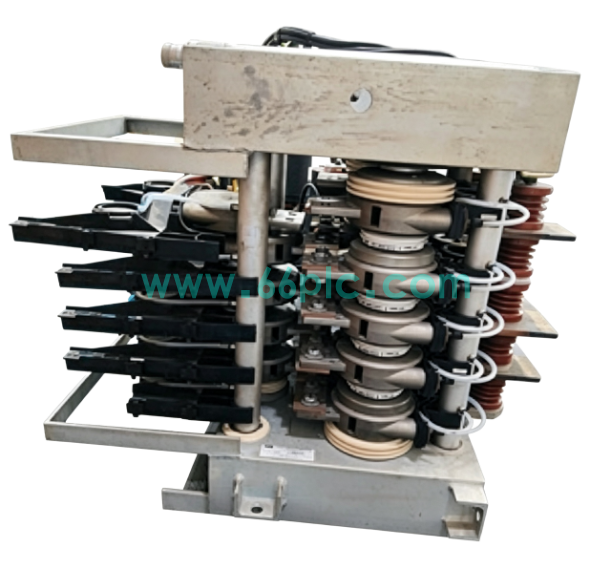

ABB S‑093S 3BHB030475R0009 IGCT Power Phase Module

The ABB S‑093S (3BHB030475R0009) is an IGCT power phase module designed for ABB medium‑voltage drive systems. It undertakes core power conversion and phase adjustment inside high‑voltage converters, supplying adjustable power output for large‑capacity industrial motors under heavy‑load conditions.

This power unit adopts high‑reliability IGCT power semiconductor components for continuous industrial operation. It acts as a key spare part for maintenance and retrofitting of ABB ACS6000 and PCS6000 series medium‑high voltage frequency converters.

Main Specifications

• Brand: ABB; Model: S‑093S; Part No.: 3BHB030475R0009; Type: IGCT Power Phase Module
• Applicable Equipment: ACS6000, PCS6000 medium‑high voltage frequency converters
• Power Device: Integrated Gate‑Commutated Thyristor (IGCT)
• Cooling Mode: Air‑cooled or water‑cooled subject to cabinet configuration
• Operating Environment: -10℃ ~ +45℃, 5%‑95% RH non‑condensing
• Diagnosis: Built‑in power device status monitoring and fault feedback
• Certifications: CE, compliant with IEC industrial power electronic equipment standards

Core Functions

• Realize AC‑DC‑AC power conversion for medium‑high‑voltage drive equipment.
• Carry out precise phase control to output adjustable voltage for large industrial motors.
• Suppress output harmonic waves and improve power quality of the converter system.
• Monitor real‑time status of power devices and transmit fault alarms to main control unit.
• Modular mechanical structure supports quick disassembly and on‑site replacement.
• Perfectly cooperate with original ABB drive control hardware to execute motor control algorithms.

Application Scenarios

• High‑power medium‑voltage frequency converter cabinets for mining, metallurgy and cement plants.
• Large‑capacity motor drive systems for petrochemical, water supply and energy industries.
• Retrofit and spare replacement of legacy ABB ACS6000 / PCS6000 drive platforms.
• Heavy‑duty industrial equipment speed‑regulation and energy‑saving renovation projects.
• Spare parts inventory for heavy‑industry automation integrators and engineering contractors.

• Global aftermarket spare supply for technical teams maintaining ABB high‑voltage drive hardware.
