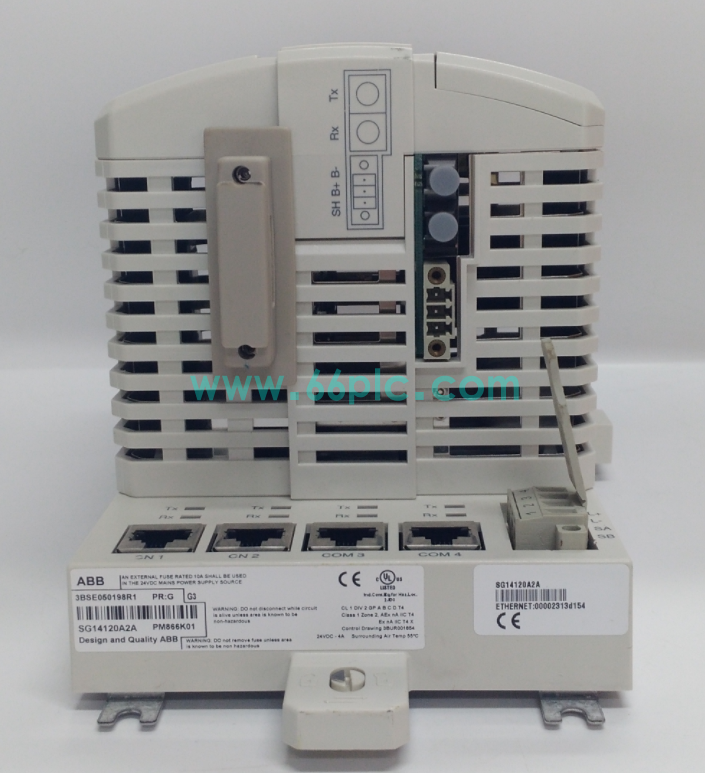

ABB PM866K01 3BSE050198R1 AC800M Processor Unit Kit

PM866K01 with part number 3BSE050198R1 is a complete processor kit for ABB AC800M / 800xA distributed control system, including PM866 main CPU, TP830 base plate and matching accessories. Equipped with MPC866 133MHz industrial processor and 64MB runtime RAM, it undertakes complex multi-loop PID calculation, sequential interlock logic and massive field signal processing for medium and large-scale process production lines. It supports redundant hot standby architecture to eliminate single-point failure shutdown risks.

This DIN rail-mounted controller integrates dual independent 10/100M Ethernet ports and isolated serial communication channels, compatible with S800/S100 remote I/O stations via CEX bus. The conformal coated PCB and full EMC certification adapt to harsh electromagnetic environments in power, chemical and papermaking workshops. It is a mainstream aftermarket spare module for upgrading and maintaining legacy ABB 800xA control racks.

Main Specifications

• Brand: ABB; Model: PM866K01; PN: 3BSE050198R1; Series: AC800M / 800xA DCS
• Core Hardware: MPC866 133MHz CPU, 64MB RAM, CF card slot for program & fault log storage
• Onboard Interfaces: 2×RJ45 Ethernet, RS232 configuration port, isolated serial COM4, CEX bus backplane
• Redundancy Support: CPU hot standby, bumpless switchover within 10ms without production interruption
• Communication Protocols: Modbus TCP, OPC UA, Profibus DP, CEX fieldbus, IEC 60870-5
• Power Supply: 24VDC cabinet power, built-in lithium battery for RAM data backup
• Operating Environment: 0℃ ~ +60℃, humidity 5%~95% RH non-condensing, IP20 protection
• Diagnosis: Multi-color LED indicators for power, run, network fault and hardware abnormal alarms
• Matching Hardware: SD831 rack power supply, S800 I/O modules, BC810 CEX bus expansion unit

Core Functions

• Execute IEC 61131-3 standard control programs, supporting hundreds of PID loops, safety interlock protection and automatic batch production sequence control.
• Dual Ethernet ports realize redundant control network communication, uploading real-time process data to 800xA operator stations and remote monitoring servers.
• CEX high-speed bus connects distributed S800 I/O racks, collecting analog temperature/pressure/flow signals and outputting valve/pump actuator control signals.
• Hot standby redundant operation: primary and backup CPU synchronize all data in real time; seamless switchover avoids system halt once main module fails.
• CF card offline backup saves user programs, equipment calibration parameters and historical fault records, enabling one-click program recovery after module replacement.
• Standard AC800M rack unified mechanical and electrical definition supports plug-and-play replacement, only simple parameter synchronization required during maintenance.

Application Scenarios

• Main CPU spare replacement for ABB 800xA DCS control cabinets in thermal power, hydropower and nuclear power plants.
• High-performance process controller spare parts for petrochemical refineries, natural gas processing and chemical batch reaction production lines.
• Maintenance backup inventory for pulp & paper mills, metallurgical rolling lines and industrial self-owned power station automation rooms.
• Matching master processor cooperating with S800 analog/digital I/O modules, redundant rack power supplies and fieldbus communication boards.
• Retrofit upgrade components for aging AC800M systems with insufficient computing capacity and single CPU non-redundant hidden danger.

• Global aftermarket spare stock for process industry maintenance teams maintaining large-scale ABB 800xA distributed control hardware.
