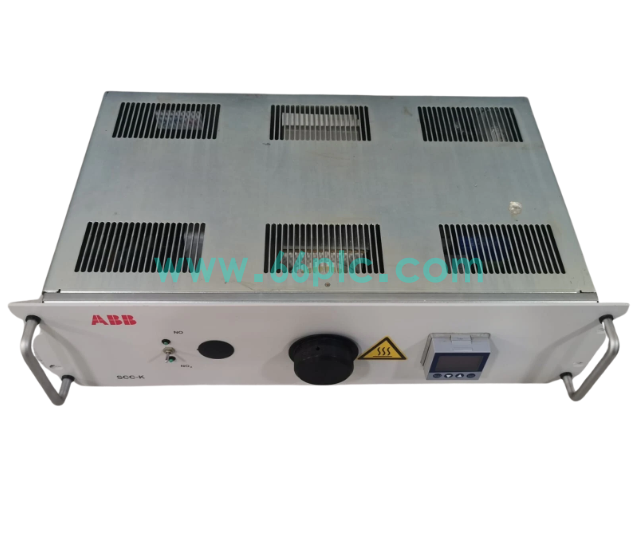

ABB SCC-K 23093-4-3KXG801000U0100 Thermal Gas Converter

The SCC-K 23093-4-3KXG801000U0100 is an ABB thermal gas converter equipped with a quartz glass reaction tube, powered by 230 VAC mains supply. It serves as core pretreatment equipment for continuous flue gas emission monitoring systems, converting NO₂ into measurable NO to realize full NOx total detection, and can also oxidize sulfur and halogen-containing compounds in process gas for analyzer measurement.

This 19-inch 3U rack-mounted unit adopts high-temperature thermal cracking technology with adjustable heating temperature ranging from 50°C to 700°C, featuring conversion efficiency over 99% for NO₂ samples. It has built-in dual LED status indicators, manual NO/NOx mode switching, and a 9-pin D-Sub communication port for fault signal output to upper DCS. Widely used in thermal power, chemical and paper plant CEMS online monitoring systems.

Main Specifications

• Brand: ABB Measurement & Analytics; Model: SCC-K; Full PN: 23093-4-3KXG801000U0100

• Available in stock, delivery time 3 days

• Power Input: 230 VAC single-phase power supply
• Reaction Core: High temperature resistant quartz glass tube thermal reaction chamber
• Temperature Range: Adjustable 50℃ ~ 700℃ precise thermal control
• Conversion Efficiency: ≥99% for NO₂ thermal reduction to NO

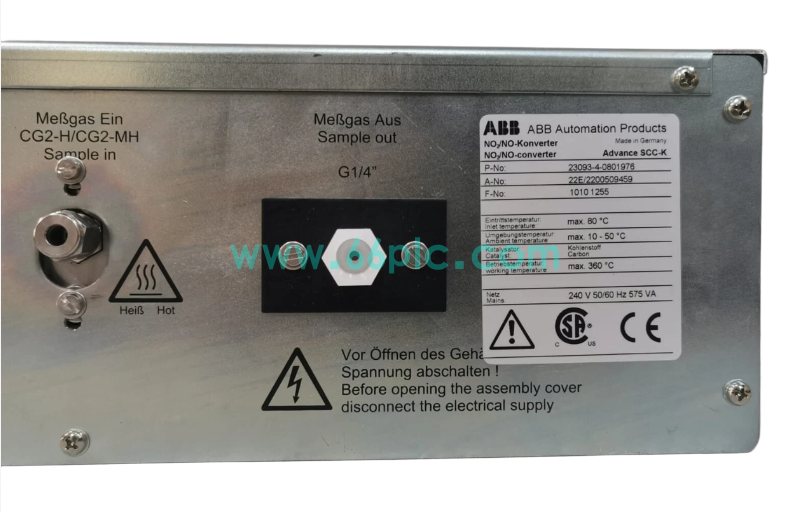

• Gas Interface: G1/4 female thread inlet & outlet for sample gas pipeline connection

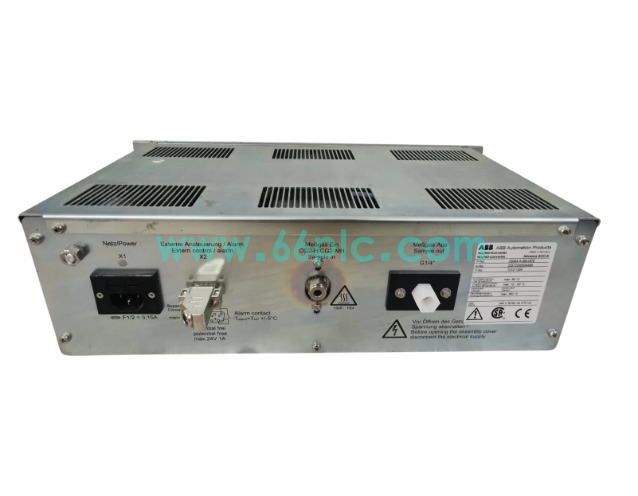

• Signal Port: 9-pin D-Sub connector for status alarm and external control signal
• Structure Size: Standard 19-inch rack 3U height, IP20 protection grade
• Operating Environment: Ambient -20℃ ~ +55℃, humidity 5%~95% non-condensing
• Matching System: ABB AT686W flow transmitter, PM511 DCS controller, FBM216 HART I/O modules

Core Functions

• High-temperature thermal reduction converts NO₂ component in flue gas into NO, enabling continuous online total NOx measurement by gas analyzers.
• Thermal oxidation processing for sulfur organic matter, chlorinated hydrocarbons and TRS gas samples to produce detectable single-component gas signals.
• Manual NO/NOx mode switching on front panel, dual LED lights to display current working state without extra solenoid valves.
• Built-in constant temperature closed-loop control system ensures stable conversion efficiency under fluctuating sample gas temperature and flow rate.
• D-Sub port transmits equipment running status, overheating and abnormal fault signals to ABB DCS for remote monitoring and alarm interlock.
• Front-side quick replaceable catalyst cartridge design, no tool disassembly required for routine maintenance to reduce system downtime.

Application Scenarios

• Spare thermal converter replacement for thermal power plant boiler CEMS flue gas NOx continuous monitoring pretreatment cabinets.
• Process gas pretreatment spare parts for petrochemical, chlor-alkali plant and waste incineration emission online analysis systems.
• Maintenance backup stock for paper mill TRS sulfur gas monitoring and metallurgical factory exhaust gas detection equipment racks.
• Matching gas pretreatment unit cooperating with ABB AT686W ultrasonic flow meter and PM511 Advant OCS DCS control system.
• Retrofit overhaul components for cement kiln, biomass power plant and industrial self-owned power plant environmental monitoring stations.

• Global aftermarket spare inventory for environmental monitoring and process analysis workshops maintaining legacy ABB gas pretreatment hardware.
