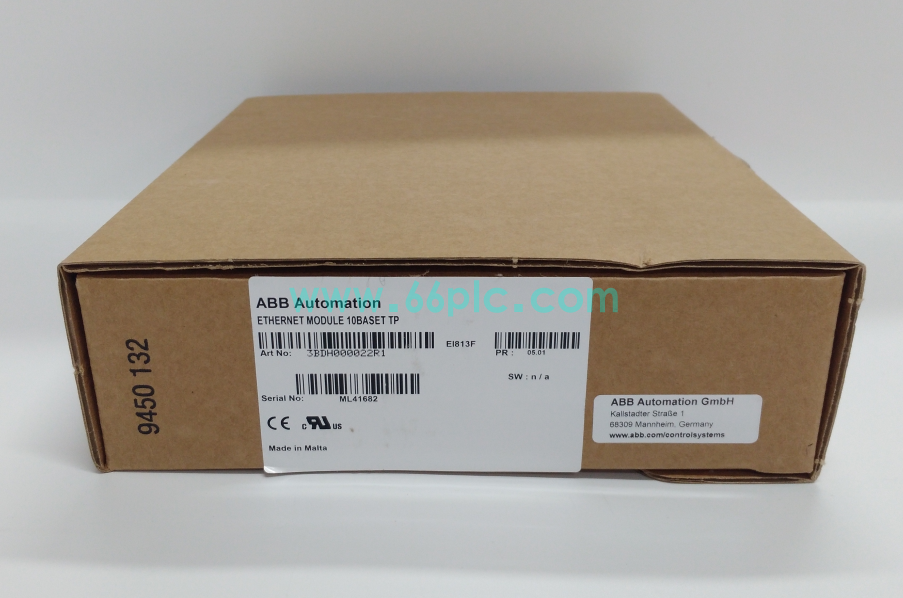

ABB EI813F 3BDH000022R1 10BaseT Ethernet Communication Module

EI813F 3BDH000022R1 is a single-slot 10Mbps Ethernet communication card for ABB AC800F Freelance DCS controller (PM802F/PM803F), manufactured in Switzerland. It adopts IEEE802.3 10BaseT twisted-pair standard with shielded RJ45 port, acting as core network gateway to realize bidirectional data interaction between controller, engineering station, HMI operator panel and upper SCADA/MES systems.

This module carries independent communication processor and onboard cache to offload CPU operation load, supports redundant network deployment and complete hardware self-diagnosis. It requires Freelance software V7.1 SP2A or above for matching configuration, widely stocked as spare parts for power, petrochemical and water plant old AC800F DCS cabinet communication fault maintenance and network expansion projects.

Main Specifications

• Brand: ABB; Model: EI813F, Part No.: 3BDH000022R1, Origin: Switzerland
• Ethernet Standard: IEEE 802.3 10BaseT, single shielded RJ45 port, transmission rate 10 Mbps
• Compatible CPU: PM802F, PM803F; Minimum software version: Freelance V7.1 SP2A
• Power & Power Consumption: Backplane 24VDC, typical power consumption 1.2~2.5W
• Physical Size: 128mm(H) × 35mm(W) × 131mm(D), weight approx 0.15kg, single-slot rack installation
• Environmental Range: Operating temp -20℃ ~ +60℃; storage -40℃ ~ +85℃, humidity 5%~95%RH non-condensing
• Supported Protocols: TCP/IP, Modbus TCP, SNMP, ABB Freelance control proprietary protocol
• Diagnosis Indicator: Front panel State & Battery dual LED, display power, link, communication fault status
• Core Feature: Support redundant network link, online firmware upgrade, industrial EMC anti-interference design
• Application: Spare Ethernet communication hardware for ABB AC800F Freelance DCS control racks

Core Functions

• Establish 10Mbps Ethernet channel between AC800F controller and System 800xA operator workstations
• Transmit real-time process data, control logic download/upload, equipment alarms and historical trend data via TCP/IP
• Connect DCS controller to upper-level SCADA, MES production management systems for remote parameter monitoring and modification
• SNMP network management realizes centralized monitoring of module link status, data transmission load and communication failures
• Independent communication processing chip undertakes all network data processing to avoid occupying main CPU cycle resources
• Built-in full self-test function quickly identifies cable disconnection, IP mismatch and module hardware damage for rapid field troubleshooting
• Support dual-module redundant network layout to ensure uninterrupted data transmission for critical production control loops

Application Scenarios

• Thermal power plant boiler, steam turbine AC800F Freelance DCS central control cabinet network layout
• Petrochemical refining, natural gas processing legacy ABB Freelance distributed control system communication construction
• Metallurgy heating furnace, municipal water treatment large-scale process monitoring network supporting projects
• On-site faulty Ethernet module replacement and daily communication network maintenance of AC800F rack systems
• Old factory automation renovation to upgrade Freelance controller Ethernet interconnection and data transmission capacity
• ABB AC800F series communication spare parts inventory backup for energy and chemical manufacturing enterprises
• Power station, chemical plant critical process control system redundant network hardware transformation projects
