Product Description

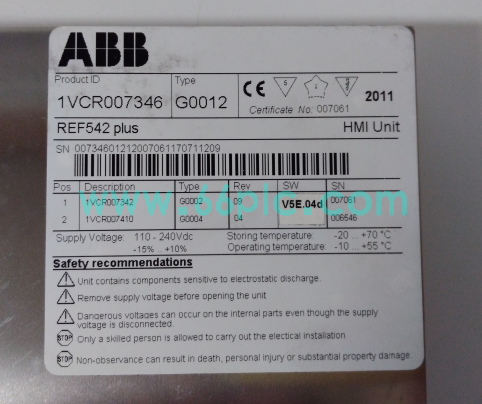

The ABB REF542plus 1VCR007346 G0012 is an advanced microprocessor-based multifunctional feeder protection relay designed for medium-voltage power distribution systems. It integrates comprehensive protection, precise electrical measurement and intelligent switch control functions into a compact unit, serving as the core safety monitoring device for 10kV and 35kV distribution feeders, motors and auxiliary power equipment. It ensures real-time fault judgment, rapid tripping and stable operational data recording for power distribution networks.

Adopting industrial embedded microprocessor and configurable FUPLA logic programming technology, this relay supports flexible functional customization to adapt to diverse power system operating demands. It features multi-level electrical interference suppression and wide-temperature rugged design, complying with IEC international power protection standards. With multiple standard communication protocols and self-diagnosis mechanisms, it enables 24/7 long-term reliable operation and intelligent management for industrial and utility power distribution systems.

Main Specifications

1. Full Model: REF542plus (1VCR007346 G0012); Product Type: Medium-voltage multifunctional feeder protection and control relay
2. Applicable System: 10kV/35kV industrial and utility medium-voltage distribution network, motor and transformer auxiliary protection systems
3. Core Function: Feeder fault protection, electrical parameter measurement, switchgear control, data monitoring and network communication
4. Protection Functions: Integrated overcurrent, earth fault, overvoltage, undervoltage, frequency protection and auto-reclosing logic
5. Programmable Logic: Supports FUPLA functional programming for customized protection logic and interlock configuration
6. Communication Protocols: Compatible with IEC60870-5-103, Modbus RTU and Profibus DP industrial communication standards
7. Power Specification: 24VDC industrial wide-voltage power supply with stable anti-fluctuation performance
8. Measurement Range: 45Hz–65Hz frequency monitoring, high-precision voltage and current sampling
9. Environmental Grade: -20°C to +60°C wide-temperature operation, IP20 protection grade, anti-vibration and anti-aging design
10. Operational Reliability: Compliant with IEC 61508 industrial safety standards, built-in full-device self-diagnosis function

Core Functions

1. Acts as the core intelligent protection and control unit for medium-voltage power distribution systems.
2. Provides comprehensive fault protection for feeders, motors and distribution transformers.
3. Accurately collects real-time electrical parameters such as voltage, current and system frequency.
4. Executes rapid tripping and auto-reclosing actions to isolate power system fault points instantly.
5. Supports flexible logic customization through FUPLA programming to meet diverse working condition demands.
6. Realizes stable data interaction with upper SCADA systems for remote monitoring and control.
7. Records power system fault events and operating logs for equipment maintenance and fault tracing.
8. Integrates self-diagnosis function to detect internal device faults and ensure protection validity.
9. Supports local and remote switchgear control to improve power distribution automation level.
10. Guarantees safe, stable and intelligent operation of industrial and utility medium-voltage power grids.

Application Scenarios

1. Industrial factory 10kV/35kV medium-voltage distribution cabinet feeder protection and monitoring projects
2. Thermal power, new energy and power plant auxiliary power system safety protection scenarios
3. Petrochemical, metallurgy and cement heavy industry medium-voltage power distribution systems
4. Urban utility power grid substation intelligent protection and automation upgrading projects
5. Medium-voltage motor, fan and pump equipment dedicated operation protection systems
6. Renewable energy station power distribution network fault monitoring and safety isolation scenarios
7. Old power protection relay replacement and distribution system intelligent transformation projects
8. 24-hour uninterrupted power supply key industrial power distribution guarantee systems
9. Complex electromagnetic interference substation and industrial power distribution operating environments
10. High-reliability medium-voltage power system protection, measurement and control integrated occasions
