Product Description

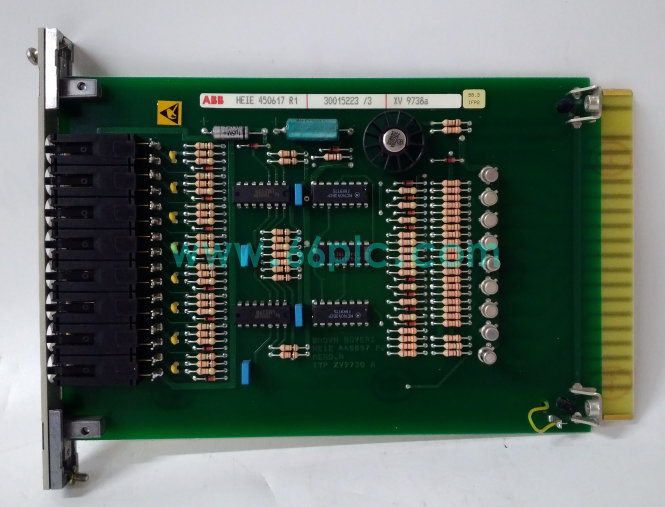

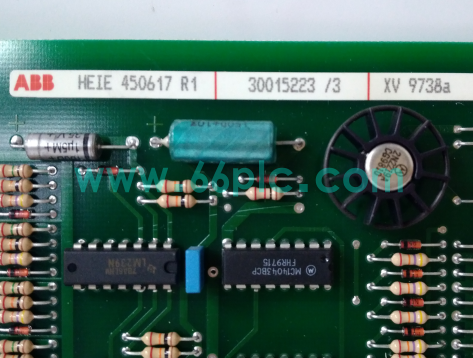

The ABB XV9738a, part number HEIE450617R1, is a dedicated high-performance motion and pulse control module designed for ABB advanced industrial PLC and automation systems. It specializes in high-speed pulse output, precise position control and multi-axis servo linkage management, serving as the core motion control unit for automated production lines and precision industrial motion equipment.

Equipped with a built-in high-speed DSP processor, this module supports dual pulse output modes and high-frequency pulse counting functions. It integrates linear interpolation, circular interpolation and S-curve acceleration/deceleration algorithms to ensure smooth and accurate motion control. Adopting industrial isolation and anti-interference design, it delivers stable low-latency motion execution and 24/7 continuous operational reliability for harsh industrial automation scenarios.

Main Specifications

1. Full Model: XV9738a (HEIE450617R1); Product Type: Industrial high-speed multi-axis motion pulse control and counting module
2. Applicable System: ABB advanced controller series, industrial PLC platforms and automated motion control systems
3. Core Function: High-frequency pulse output, servo multi-axis linkage, position control, pulse counting and motion algorithm operation
4. Processing Core: Embedded high-performance DSP processor for low-latency real-time motion algorithm calculation
5. Pulse Mode: Supports pulse/direction and dual-pulse output modes for diverse servo driver matching
6. Motion Algorithm: Built-in linear/circular interpolation and S/T type acceleration and deceleration control functions
7. Signal Performance: Ultra-high-speed pulse response and precise counting capability for micro-displacement positioning
8. Isolation Design: Module-level galvanic isolation structure to prevent signal interference and circuit crosstalk
9. Power Specification: Standard 24VDC industrial power supply, adapting to on-site power fluctuation conditions
10. Operational Reliability: Industrial rugged design, supporting long-term uninterrupted high-frequency motion control operation

Core Functions

1. Acts as the core multi-axis motion control unit for ABB industrial automation systems.
2. Outputs high-precision high-frequency pulses to drive servo motors and stepper motor actuators.
3. Realizes multi-axis synchronous linkage and coordinated motion control for production equipment.
4. Executes linear and circular interpolation to support complex trajectory motion positioning tasks.
5. Adopts S-curve acceleration and deceleration to ensure smooth equipment operation and reduce mechanical impact.
6. Performs high-speed pulse counting to feedback real-time equipment position and speed status.
7. Supports flexible motion parameter configuration to adapt to diversified process control requirements.
8. Integrates electrical isolation protection to enhance system anti-interference and operational stability.
9. Guarantees micron-level positioning accuracy for precision automated processing equipment.
10. Stabilizes long-term high-frequency motion operation of industrial intelligent production lines.

Application Scenarios

1. Intelligent factory multi-axis servo linkage automated production line control projects
2. Precision machining equipment trajectory positioning and motion control scenarios
3. Packaging, printing and handling machinery high-speed motion positioning systems
4. Industrial robot auxiliary axis synchronous control and pulse feedback monitoring projects
5. Old ABB motion control module replacement and equipment positioning accuracy upgrading scenarios
6. High-precision positioning required industrial automation processing and testing platforms
7. Complex electromagnetic environment workshop stable pulse signal control guarantee projects
8. 24-hour uninterrupted operation intelligent equipment high-frequency motion control systems
9. Electronics manufacturing precision transmission and micro-displacement adjustment control scenarios
10. Industrial automation high-stability multi-axis cooperative motion control application projects
