Product Description

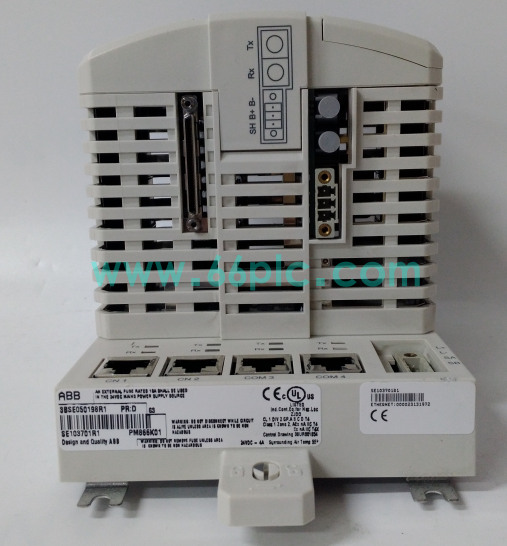

The ABB PM866K01, with part number 3BSE050198R1, is a high-performance dual-core CPU controller serving ABB AC800M distributed control systems. As the core master processing unit, it undertakes industrial logic operation, global data scheduling, I/O management and network communication control, supporting both simplex and redundant configurations for stable and reliable process automation operation.

Equipped with an 800MHz PowerPC dual-core processor, 512MB SDRAM and 128MB Flash memory, this module delivers powerful computing capacity and fast program execution. It integrates dual Ethernet ports and multi-serial communication interfaces, supporting mainstream industrial protocols. Featuring wide-temperature industrial design, real-time clock and comprehensive fault diagnosis, it ensures 24/7 high-stability operation in harsh industrial process control environments.

Main Specifications

1. Full Model: PM866K01 (3BSE050198R1); Product Type: AC800M series industrial main CPU processor controller module
2. Applicable System: ABB AC800M DCS platform, industrial process control and automated production systems
3. Core Function: System logic calculation, program execution, I/O scheduling, data processing and network management
4. Processing Core: 800MHz high-speed dual-core PowerPC industrial processor for high-efficiency operation
5. Memory Configuration: 512MB SDRAM running memory + 128MB Flash program storage space
6. Communication Interfaces: Dual RJ45 Ethernet ports, RS-232C and RS-485 multi-function serial ports
7. Protocol Support: Compatible with Modbus RTU, PROFIBUS and standard industrial Ethernet protocols
8. Power Supply: 18-32VDC wide-range industrial power input, adapting to complex power conditions
9. Operating Environment: -40°C to +70°C ultra-wide temperature range, anti-vibration industrial grade
10. Reliability: Supports hot standby redundancy configuration, meeting continuous process production requirements

Core Functions

1. Acts as the top core CPU control unit for ABB AC800M industrial distributed control systems.
2. Executes IEC 61131-3 standard control programs and complex process logic algorithms.
3. Converges and schedules all field I/O data to realize unified system operation management.
4. Supports dual-network redundant communication to avoid network interruption and data loss risks.
5. Implements hot standby redundant operation to ensure non-stop system switching and operation.
6. Provides real-time clock calibration and system running status monitoring functions.
7. Integrates comprehensive self-diagnosis to quickly locate program and hardware faults.
8. Supports multi-protocol docking to connect various field instruments and intelligent equipment.
9. Stores operating logs and fault records to facilitate post-maintenance and system optimization.
10. Guarantees high-efficiency, stable and safe automatic operation of industrial process systems.

Application Scenarios

1. Thermal power plant ABB AC800M DCS core control and scheduling platforms
2. Petrochemical continuous process production high-reliability redundant control systems
3. Metallurgical and chemical industry large-scale automation process control scenarios
4. Paper and textile industrial constant tension and process precision control projects
5. Water treatment and environmental protection intelligent monitoring control systems
6. Harsh high-temperature and electromagnetic interference industrial control room scenarios
7. Old AC800M system CPU module replacement and performance upgrading transformation
8. Industrial automated production line full-process logic scheduling and control platforms
9. Energy industry unattended intelligent control system core configuration projects
10. Continuous manufacturing industry zero-stop redundant control guarantee scenarios
