Product Description

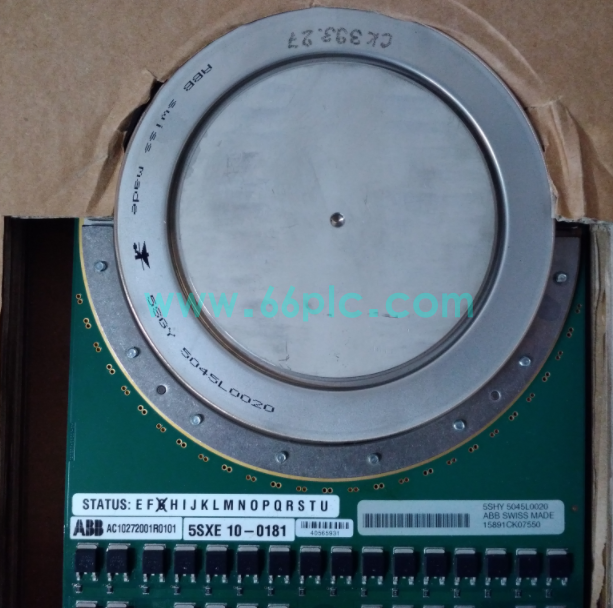

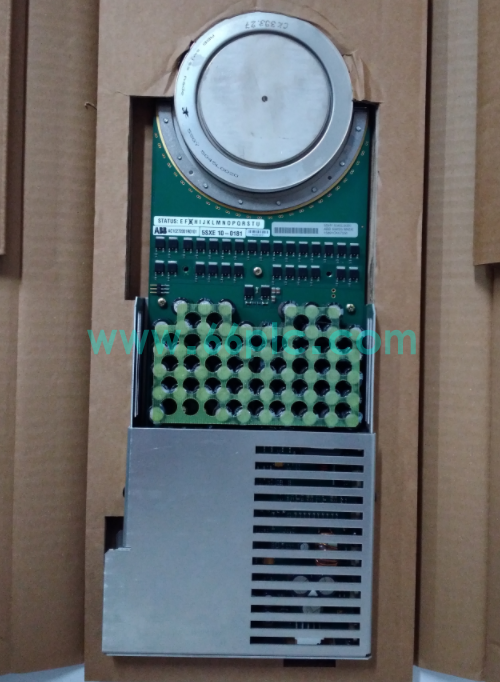

The ABB 5SHY5045L0020 5SXE10-0181 AC10272001R0101 is a high-power IGCT semiconductor module designed for medium voltage power conversion equipment. It serves as the core power switching component, supporting high voltage and large current switching operation to realize efficient energy conversion inside frequency converters, static var compensators and power transmission devices.

This module adopts advanced integrated gate commutated thyristor technology with low conduction loss and fast switching speed. It features optimized internal cooling structure, reliable insulation performance and strong short-circuit withstand capability. Meeting strict industrial power standards, it maintains stable performance under heavy load conditions and ensures long-term secure operation of medium-voltage power electronic systems.

Main Specifications

1. Full Model: 5SHY5045L0020 5SXE10-0181 AC10272001R0101; Product Type: High-power IGCT power semiconductor module
2. Applicable Equipment: ABB medium voltage inverter, SVC static var compensator and power conversion devices
3. Core Function: High-power circuit switching, AC-DC and DC-AC energy conversion, power flow regulation
4. Device Type: Integrated Gate Commutated Thyristor (IGCT) with integrated gate drive unit
5. Electrical Characteristic: Low switching loss, high surge current resistance and fast turn-off response
6. Cooling Mode: Adapted to liquid cooling or forced air cooling for high-load continuous operation
7. Insulation Standard: High-grade electrical insulation to satisfy medium voltage system safety requirements
8. Mechanical Structure: Compact modular packaging for convenient cabinet assembly and maintenance
9. Protection Performance: Built-in overcurrent tolerance design to cope with transient system faults
10. Certification: Complies with international power electronics standards for energy industry applications

Core Functions

1. Acts as core high-power switching unit for medium voltage power electronic control systems.
2. Executes rapid switching to realize bidirectional conversion between alternating and direct current.
3. Supports stable transmission and dynamic regulation of large-capacity electric power energy.
4. Works cooperatively with gate driver to achieve accurate switch-on and switch-off control.
5. Reduces power consumption during continuous operation and improves overall system efficiency.
6. Withstands transient impact current to enhance system anti-fault capacity.
7. Enables modular multi-device series and parallel expansion for higher power grades.
8. Realizes reactive power compensation control inside static var compensation devices.
9. Supports continuous heavy-load operation for medium-voltage frequency conversion driving equipment.
10. Guarantees safe and reliable energy conversion for industrial power transmission systems.

Application Scenarios

1. Metallurgical industry medium voltage high-power frequency conversion drive control systems
2. Power grid SVC static var compensator reactive power adjustment equipment platforms
3. Mining large fan, conveyor medium voltage inverter power unit projects
4. New energy power station energy conversion and grid-connected control devices
5. Oil & gas industry medium voltage variable speed drive power electronic systems
6. Large industrial motor energy-saving transformation medium voltage frequency converter scenarios
7. Rail transit high-power traction power conversion supporting equipment
8. Old medium voltage power cabinet IGCT module replacement and system upgrading projects
9. Hydropower and thermal power plant auxiliary medium voltage drive control systems
10. Heavy industry high-reliability medium voltage power electronic application scenarios
