Product Description

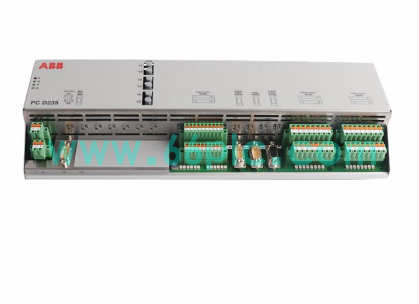

The ABB 3BHE032025R0101 PCD235A is a dedicated high-performance I/O and logic control module tailored for ABB UNITROL series generator excitation systems. Serving as the core signal acquisition and execution interface unit of excitation control racks, it integrates multi-channel analog/digital signal processing, safety interlock logic and pulse trigger control functions, undertaking field signal sampling, loop condition judgment and excitation command output tasks to support full-process stable regulation of generator excitation systems.

This module adopts full galvanic isolation circuit design and 12-bit high-precision signal conversion architecture, ensuring accurate and anti-interference collection of on-site electrical and temperature parameters. It supports dual-module hot redundant configuration with fast switching response, effectively eliminating single-point failure risks and improving the overall operational availability of excitation systems. Equipped with rich configurable DI/AI/AO/DO channels and independent hard-wired safety loop, it realizes rapid de-excitation and fault cutoff during abnormal conditions. Compatible with mainstream ABB excitation control protocols and upper monitoring platforms, it features industrial EMC shielding, wide temperature adaptability and long-cycle operational stability, supporting 24/7 uninterrupted safe operation of power plant generator sets.

Main Specifications

1. Full Part Number: 3BHE032025R0101 (PCD235A); Product Type: UNITROL excitation system dedicated I/O control module
2. Applicable System: ABB UNITROL generator excitation systems, thermal power and new energy generating unit control platforms
3. Core Function: Multi-channel signal acquisition, excitation logic judgment, safety interlock protection, pulse trigger output and system data interaction
4. Signal Precision: 12-bit high-resolution analog conversion for high-accuracy process parameter sampling
5. Channel Configuration: Integrated configurable digital and analog I/O channels to meet diverse excitation signal docking demands
6. Redundancy Performance: Support dual-module hot standby redundancy with fast switching for non-stop system operation
7. Safety Design: Independent hard-wired safety loop for fast fault cutoff and generator de-excitation protection
8. Isolation Performance: Full-module galvanic isolation design to suppress on-site electromagnetic interference
9. System Compatibility: Perfectly matched with ABB UNITROL series excitation controllers and upper monitoring software
10. Reliability: Power industry certified rugged design for long-cycle generator excitation system control tasks

Core Functions

1. Act as the core signal acquisition and logic execution unit for ABB UNITROL excitation control systems.
2. Accurately collect generator voltage, current, temperature and other key operating analog parameters.
3. Realize digital signal status monitoring and interlock judgment of excitation system auxiliary loops.
4. Support redundant hot standby operation to ensure continuous and stable operation of excitation regulation loops.
5. Trigger fast safety protection responses such as fault cutoff and emergency de-excitation to protect generator equipment.
6. Complete real-time data interaction and command execution to guarantee precise excitation regulation and grid-connected stability.

Application Scenarios

1. Thermal power plant UNITROL series generator excitation control and signal acquisition systems
2. Hydropower, wind power and new energy generating unit excitation regulation and safety interlock platforms
3. Large-scale industrial self-provided power station generator set excitation monitoring and control scenarios
4. Replacement and upgrading of aging ABB PCD series excitation I/O control modules
5. Power system sites requiring high-precision signal processing and redundant safe excitation control
