Product Description

This industrial-grade integrated module adopts dedicated IGCT drive and power integration design, featuring ultra-low conduction loss and high-speed switching response. It supports stable 24VDC industrial control power supply adaptation and high-power current conversion operation, with a maximum matching current of 500A and excellent power conversion efficiency over 98.5%. It integrates comprehensive built-in protection functions including overcurrent detection, desaturation protection, overvoltage suppression and soft shutdown, which can quickly lock signals and cut off faulty loops under abnormal conditions. Equipped with standard industrial communication compatibility and differential anti-interference signal receiving mechanism, it resists strong electromagnetic interference in high-power cabinets. With conformal coating, wide-temperature resistance and reinforced EMC design, it supports 24/7 long-term continuous stable operation of high-power power electronic equipment.

Main Specifications

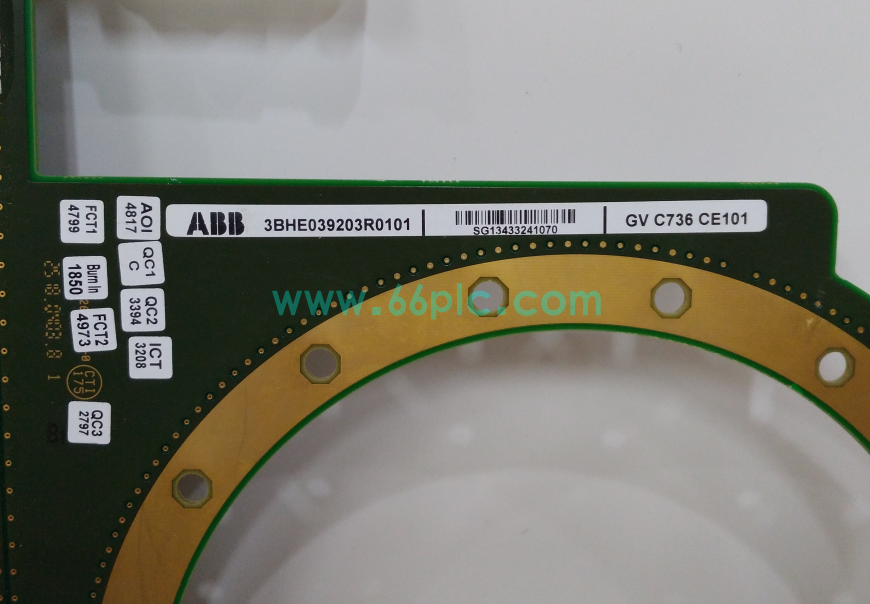

1. Full Part Number: GVC736CE101, 3BHE039203R0101, 5SXE12-0184; Product Type: High-power IGCT integrated gate drive power module
2. Applicable System: ABB medium/high-voltage inverters, industrial high-power converters and energy power conversion systems
3. Core Function: IGCT precise gate drive, high-power energy conversion, real-time fault monitoring and multi-level safety protection
4. Control Power: Industrial standard 24VDC wide-range control power input for stable circuit operation
5. Power Performance: Rated matching 500A operating current, power conversion efficiency ≥98.5%
6. Power Device: 5SXE12-0184 high-performance IGCT chip with low switching and conduction loss
7. Protection Mechanism: Integrated overcurrent, overvoltage, desaturation and soft shutdown full-range protection logic
8. Signal Performance: Differential signal reception design to enhance anti-interference capability in high-frequency environments
9. Communication Compatibility: Support mainstream industrial bus protocols for system data interaction
10. Response Speed: Ultra-fast fault protection response to avoid high-power device breakdown damage
11. Structural Feature: Integrated modular assembly for quick installation, positioning and field replacement
12. Surface Treatment: Conformal coating for moisture-proof, dust-proof and anti-aging performance
13. Environmental Adaptability: Industrial wide-temperature design, adapting to high-temperature and high-interference cabinet conditions
14. Operational Reliability: Strict power electronic industrial aging tests, low failure rate for long-term high-power conversion tasks

Core Functions

1. Act as the integrated drive and power execution core for ABB high-power IGCT frequency conversion units.
2. Receive precise control signals from the main control board and complete high-speed IGCT switch triggering actions.
3. Realize high-efficiency industrial high-power AC/DC energy conversion and stable power output regulation.
4. Provide multi-level safety protection to isolate electrical faults and protect core power devices.
5. Monitor real-time operating status of power loops and upload fault information to upper controllers.
6. Suppress high-frequency electromagnetic interference to ensure stable and accurate drive signal execution.
7. Support continuous high-load operation of high-power frequency conversion and power conversion equipment.
8. Guarantee high-efficiency, safe and stable operation of industrial heavy-duty power electronic systems.

Application Scenarios

1. Industrial medium and high-voltage inverter high-power power unit drive and conversion systems
2. Power plant energy conversion, grid-connected power regulation and generator variable-speed control platforms
3. Metallurgy, chemical and heavy industry high-power variable-frequency drive equipment scenarios
4. New energy power generation and energy storage system high-efficiency power conversion control projects
5. High-power industrial motor speed regulation and heavy-load power transmission control systems
6. Old ABB high-power frequency conversion equipment module replacement and performance upgrading projects
7. Closed cabinet environments with high temperature, high humidity and strong electromagnetic interference
8. All high-power power electronic conversion applications based on ABB industrial inverter architecture
