ABB PM511V08 3BSE011180R1 Advant OCS Main Processor Module

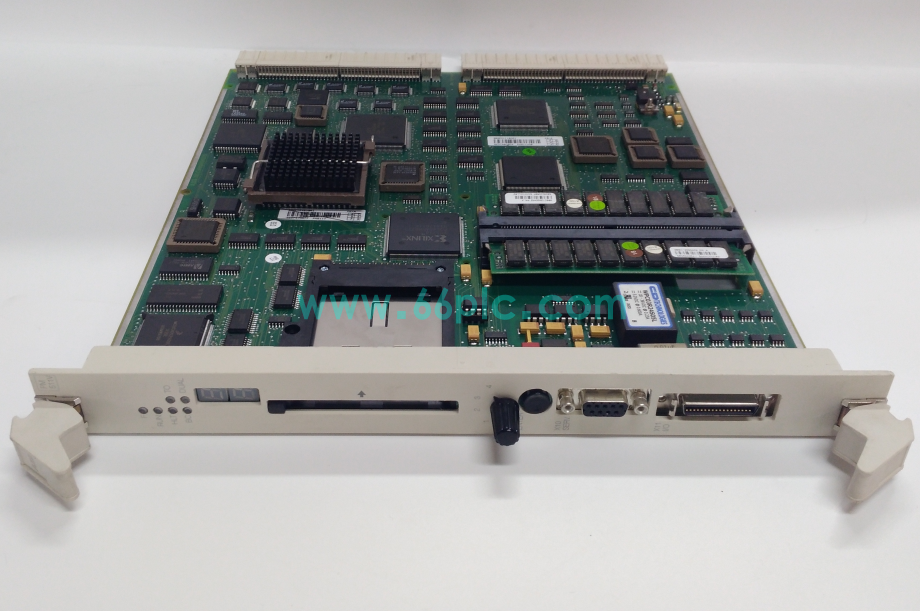

PM511V08 with part number 3BSE011180R1 is the core CPU processor module for ABB Advant OCS / Advant Master distributed control system. Powered by Motorola PowerPC 604e 400MHz processor, it undertakes full-cycle process logic operation, loop regulation and data calculation for industrial production. Equipped with ECC error-correcting memory and multi-port communication, it serves as the central computing core connecting field I/O racks, local operation panels and upper SCADA platforms.

This standard rack plug-in module adopts industrial anti-vibration PCB design with a PCMCIA flash card slot for program and historical trend storage. It runs multi-task parallel control algorithms and supports multiple industrial standard communication protocols. ABB has ceased original production, so it is globally supplied as critical maintenance spare parts for legacy power, petrochemical and pulp & paper DCS systems.

Main Specifications

• Brand: ABB; Model: PM511V08; Order Code: 3BSE011180R1; Series: Advant OCS DCS
• Core CPU: Motorola PowerPC 604e, 400MHz main frequency
• Memory: 8MB ECC DRAM for error correction, PCMCIA Type II flash storage slot
• Communication Ports: Dual 10/100Mbps Ethernet, 1×RS232 debug port, 1×RS485 fieldbus port
• Power Supply: 24VDC rack backplane power, rated current 0.5A
• Physical Parameter: Standard single-slot rack board, net weight 0.76kg, made in Sweden
• Operating Range: -20℃ ~ +60℃, 5%~95% non-condensing humidity
• Diagnostics: Front panel LED indicators for power, running status, bus fault and storage error
• Compatible Accessories: ABB Advant series analog/digital I/O modules, Foxboro FBM216 HART input modules
• Lifecycle Status: Discontinued factory production, only aftermarket overhaul spare parts available

Core Functions

• Execute real-time closed-loop control logic, PID regulation, batch sequence and safety interlock algorithms for whole production process.
• Collect analog and digital signals from all field I/O modules via rack backplane, process and store trend data and fault event logs.
• Dual Ethernet ports realize redundant network transmission: one for local HMI operation station, another for upper DCS/SCADA remote monitoring.
• ECC memory technology automatically corrects single-bit data errors to avoid calculation distortion caused by industrial electromagnetic interference.
• PCMCIA flash card stores control programs, parameter configurations and historical curves, supporting offline program backup and quick recovery after power failure.
• Hot-swappable rack design allows single CPU replacement without full system shutdown, cutting production downtime during maintenance overhaul.

Application Scenarios

• Spare main processor replacement for ABB Advant OCS DCS racks in thermal power plant boiler and turbine control systems.
• Core control spare parts for oil refinery, chemical plant distillation and reaction kettle continuous process automation cabinets.
• Maintenance backup stock for pulp, paper and metallurgical rolling mill vintage Advant distributed control platforms.
• Matching central processing unit for Foxboro FBM216 HART analog input modules and full factory signal acquisition systems.
• Retrofit overhaul components for hydropower station generator auxiliary control and water treatment process monitoring racks.
• Global aftermarket spare inventory for energy and chemical industry workshops maintaining legacy ABB Advant DCS hardware.
