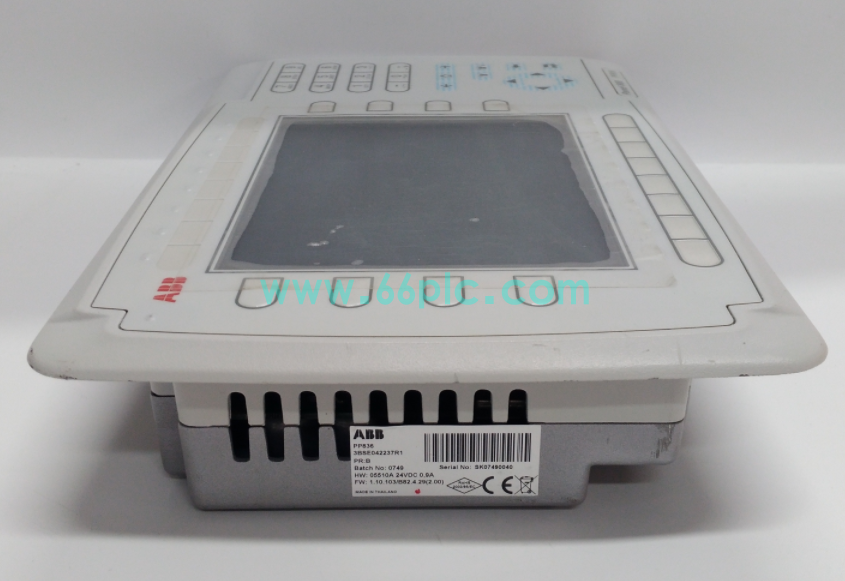

ABB PP836 3BSE042237R1 Panel 800 Industrial Operator HMI Panel

PP836 with order code 3BSE042237R1 belongs to ABB Panel 800 series industrial operator panel, dedicated human-machine interface matched with ABB Advant OCS, AC800M and 800xA DCS/PLC control systems. It integrates 6.5-inch color TFT display and physical hard key matrix, supporting touch & dual-key operation to realize on-site process monitoring, parameter adjustment and equipment manual operation. Multiple industrial communication ports are reserved for data interconnection with main controller and third-party automation devices.

The front panel reaches IP65 dustproof and waterproof standard, adapting to harsh workshop environments of power plants, chemical factories and metallurgical production lines. It supports real-time trend curve display, alarm event recording and batch recipe management. ABB has stopped original production, and this unit is widely supplied as core maintenance spare parts for legacy ABB distributed control systems worldwide.

Main Specifications

• Brand: ABB; Model: PP836; Order No.: 3BSE042237R1; Series: Panel 800 HMI
• Display: 6.5" TFT color screen, resolution 640×480, touch + physical function keypad
• Power Supply: 24VDC (18–32VDC), max power consumption 20W
• Communication Interfaces: RJ45 Ethernet, PROFIBUS DP, RS485 serial port, USB programming port
• Protection Grade: Front IP65, rear housing IP20; embedded panel mounting
• Operating Temperature: -5℃ ~ +55℃; Storage: -20℃ ~ +70℃
• Physical Size: 220mm × 160mm × 40mm, net weight 1.3kg, made in Sweden
• Supported Protocols: Modbus TCP, PROFIBUS DP, ABB native control bus
• Compatible Controller: PM511V08 3BSE011180R1 Advant OCS CPU, AC800M series PLC
• Lifecycle Status: Discontinued original production, aftermarket overhaul spare only

Core Functions

• Real-time display of process data including temperature, pressure, flow and equipment running status collected by DCS analog/digital modules.
• Support manual on-site control: start/stop equipment, adjust PID setpoints, switch production modes via touch screen and physical shortcut keys.
• Store and query historical alarm logs, real-time & historical trend curves, and production batch recipes for process traceability analysis.
• Multi-protocol communication gateway function, bidirectional data exchange with ABB PM511 CPU and third-party PLC/SCADA upper monitoring system.
• Offline program download and parameter backup via USB port, supporting rapid program recovery after panel replacement without reconfiguring the whole system.
• Industrial anti-interference circuit design, stable continuous operation under high electromagnetic interference environment of power and chemical plants.

Application Scenarios

• On-site operation panel spare replacement for ABB Advant OCS DCS boiler and turbine control cabinets in thermal power plants.
• Local human-machine interaction spare parts for petrochemical refinery distillation tower and reaction kettle continuous process control systems.
• Maintenance backup stock for pulp, paper and metallurgical rolling mill vintage ABB AC800M automation control platforms.
• Matching operation terminal for PM511V08 CPU processor and Foxboro FBM216 HART analog input signal modules.
• Retrofit overhaul components for hydropower station generator auxiliary control and industrial wastewater treatment monitoring racks.
• Global aftermarket spare inventory for energy and chemical industry workshops maintaining legacy ABB distributed control hardware.
