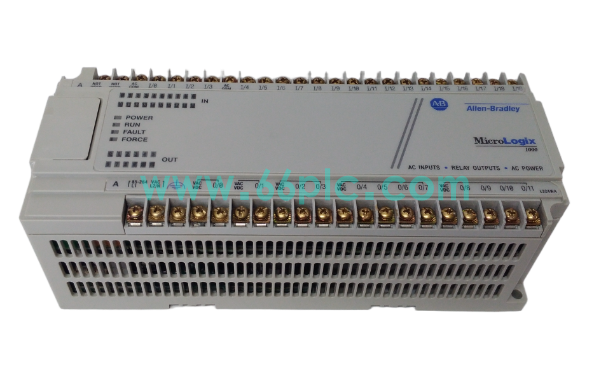

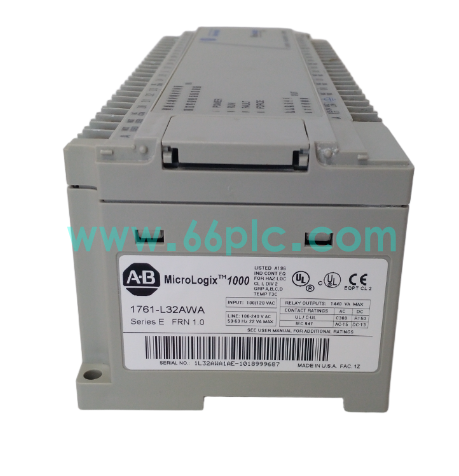

Allen‑Bradley 1761‑L32AWA MicroLogix 1000 PLC Controller

The Allen‑Bradley 1761‑L32AWA is an integrated MicroLogix 1000 PLC controller with built‑in digital I/O points. It executes ladder‑logic control programs for small‑scale automation equipment, collecting field sensor signals and driving actuators to complete sequential interlock and logic control for manufacturing machinery.

This compact all‑in‑one unit features AC power supply, 20‑point input and 12‑point relay output, RS‑232 communication port and status LED indicators. It is widely used in packaging, conveying and general‑machinery automation. It serves as important aftermarket spare for maintenance, overhaul and retrofitting of legacy factory automation control cabinets.

Main Specifications

• Brand: Allen‑Bradley (Rockwell); Model:1761‑L32AWA; Type: MicroLogix 1000 Integrated PLC Controller
• Power Supply: 120‑240V AC; I/O: 20‑point digital input, 12‑point relay output
• Interface: RS‑232 communication port, terminal block for field wiring, status diagnostic LED indicators
• Function: Ladder‑logic program execution, digital signal acquisition, relay output driving, communication with programming software and HMI
• Feature: Compact integrated design, panel / DIN‑rail mounting, relay output type, industrial‑grade compact PLC
• Installation: DIN‑rail mounting or panel mounting inside equipment control cabinet
• Power: 120‑240V AC; Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for factory industrial automation applications

Core Functions

• Run user‑written ladder‑logic program to implement equipment sequence control, interlock protection and logic judgment.
• Collect digital input signals from proximity switches, push‑buttons and other field sensing devices.
• Drive external contactors, solenoid valves and indicators via built‑in relay output channels according to control logic.
• RS‑232 port supports program download/upload, connecting to programming software or simple HMI devices for data interaction.
• On‑board LED indicators reflect power, run status and I/O channel state for fast fault diagnosis during commissioning and maintenance.
• Compact DIN‑rail installation facilitates replacement during equipment overhaul and on‑site troubleshooting work.

Application Scenarios

• Compact integrated PLC controller component for small‑scale factory automation machinery.
• Critical spare‑part for packaging machines, conveyor systems and general‑purpose mechanical‑equipment control cabinets.
• Retrofit and spare replacement for legacy 1761‑L32AWA controller industrial‑equipment upgrade projects.
• Machine‑control‑cabinet overhaul, logic‑program debugging and faulty integrated‑PLC replacement tasks.
• Spare‑parts inventory for machinery‑automation integrators and manufacturing‑plant engineering contractors.

• Global aftermarket spare supply for technical teams maintaining legacy Allen‑Bradley MicroLogix 1000 automation hardware.
