Allen‑Bradley SK‑G9‑GDB1‑D292 347594‑A01 Gate Drive Board

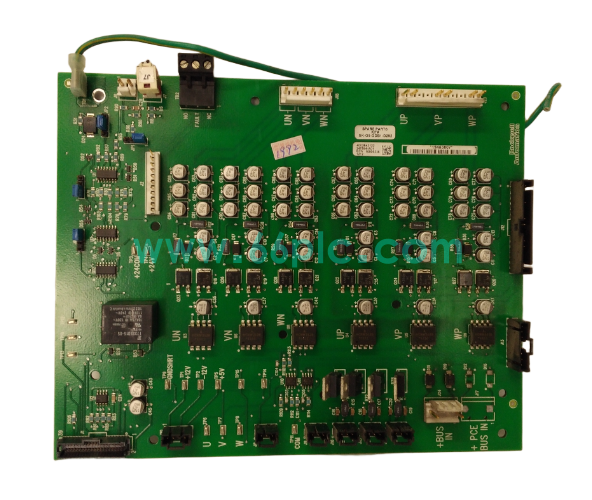

The Allen‑Bradley SK‑G9‑GDB1‑D292 (PCB part number 347594‑A01) is a frame‑9 gate drive board for PowerFlex 700 / 700S high‑horsepower AC drives. It receives control pulses from the main control board and generates isolated drive signals to trigger IGBT power devices, managing power‑stage switching for variable‑frequency motor operation.

This plug‑in PCB assembly integrates pulse transformers, fault detection circuits and multi‑channel internal connectors. It provides short‑circuit and over‑current feedback protection. It is a key aftermarket spare for maintenance, overhaul and retrofitting of large‑capacity drive equipment in heavy‑industry manufacturing sites.

Main Specifications

• Brand: Allen‑Bradley (Rockwell Automation); Model:SK‑G9‑GDB1‑D292; P/N:347594‑A01; Type: IGBT Gate Drive Board
• Applicable Device: PowerFlex 700, PowerFlex 700S Frame‑9 large‑horsepower AC variable‑frequency drives
• Signal Interface: Control‑board pulse input, isolated IGBT gate drive output, fault‑feedback signal channel
• Function: IGBT trigger‑pulse amplification & isolation, power‑device driving, short‑circuit / over‑current fault detection
• Feature: Built‑in pulse transformer isolation, multi‑channel power‑device driving, hardware fault‑feedback circuit
• Installation: Internal plug‑in installation inside PowerFlex 700 / 700S frequency‑converter cabinet
• Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for industrial high‑power variable‑frequency‑drive automation applications

Core Functions

• Receive PWM control pulse signals from drive main‑control board, amplify and isolate signals to drive IGBT power semiconductors.
• Accurately control IGBT turn‑on and turn‑off timing to realize AC‑motor variable‑voltage variable‑frequency power‑stage operation.
• Detect short‑circuit and over‑current faults on power‑device side, feed fault signals back to main‑board for drive protection interlock.
• Adopt pulse‑transformer isolation structure to suppress high‑voltage interference between logic circuit and power‑circuit section.
• Transmit real‑time power‑stage status information for drive system self‑diagnosis and fault‑code recording.
• Plug‑in structural design, supporting quick disassembly and replacement during on‑site high‑power‑drive maintenance work.

Application Scenarios

• IGBT gate‑drive power‑board component for Rockwell PowerFlex 700 / 700S large‑horsepower variable‑frequency‑drive motor‑control systems.
• Critical spare‑part for heavy‑duty conveyor, large pump, fan and material‑handling drive‑control equipment.
• Retrofit and spare replacement for legacy SK‑G9‑GDB1‑D292 gate‑drive‑board high‑power‑drive‑hardware upgrade projects.
• High‑power frequency‑converter overhaul, power‑stage‑loop debugging and faulty gate‑drive‑board replacement tasks.
• Spare‑parts inventory for high‑power‑drive‑system integrators and industrial automation engineering contractors.

• Global aftermarket spare supply for technical teams maintaining Allen‑Bradley PowerFlex 700‑series legacy large‑capacity drive hardware.
