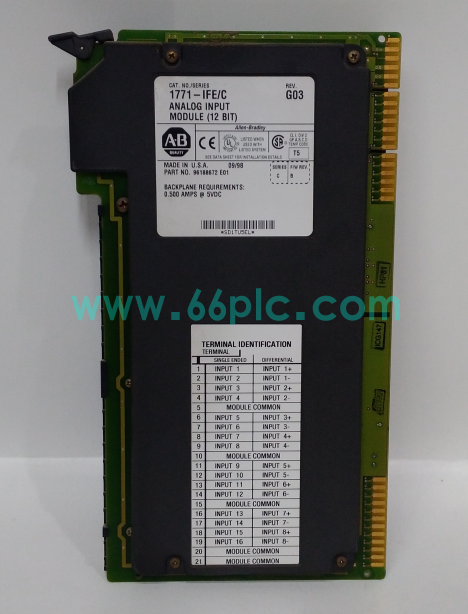

Allen‑Bradley 1771‑IFEC Analog Input Module

The Allen‑Bradley 1771‑IFEC is a high‑resolution analog input module for Rockwell PLC‑5 and 1771 I/O rack systems. It accepts 4‑20mA or voltage analog signals from field transmitters, converts analog process variables into digital values and transmits data to the PLC‑5 controller for process monitoring and closed‑loop regulation.

This plug‑in chassis module supports isolated channel input and built‑in overrange detection. It is widely stocked as spare parts for maintenance and retrofitting of legacy 1771 automation cabinets used in chemical, water treatment and traditional manufacturing plants.

Main Specifications

• Brand: Allen‑Bradley (Rockwell Automation); Model: 1771‑IFEC; Type: Isolated Analog Input Module
• Applicable System: PLC‑5 controller, 1771 series I/O rack platform
• Core Tasks: Analog signal acquisition, A/D conversion, isolated signal sampling, overrange fault detection
• Signal Interface: Field analog wiring terminal assembly, 1771 backplane connector
• Installation: Plug‑in slot‑mount on standard 1771 I/O chassis rack
• Signal Type: Configurable 4‑20mA current and voltage analog input with channel isolation
• Operating Environment: 0℃ ~ +60℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Mechanical: Standard 1771 series module form‑factor, IP20 cabinet‑mount installation
• Certifications: CE, conforms to Rockwell legacy automation EMC requirements

Core Functions

• Collect isolated analog measurement signals from field pressure, temperature and flow transmitters and convert them into digital data for PLC‑5 control logic.
• Adopt channel isolation design to suppress ground loop interference and improve signal stability in multi‑ground industrial field environments.
• Support overrange and underrange signal detection to help operators quickly identify abnormal transmitter output or field wiring faults.
• Transmit converted digital process data to PLC‑5 controller through the 1771 rack backplane for display, recording and closed‑loop control.
• Chassis plug‑in structure allows quick installation and removal during maintenance of legacy automation control cabinets.
• Industrial‑hardened circuit design ensures long‑term continuous operation for renovation projects of end‑of‑life PLC‑5 systems.

Application Scenarios

• Spare‑part replacement for legacy PLC‑5 automation cabinets in chemical, water treatment and traditional manufacturing industrial sites.
• Isolated analog signal acquisition hardware for process monitoring and control loops of 1771 I/O rack control systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of end‑of‑life Rockwell PLC‑5 automation equipment.
• Matching analog input module cooperating with PLC‑5 CPU, 1771 chassis, terminal arms and analog output modules.
• Retrofit replacement for aged input modules with signal drift, channel deviation and isolation failure faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Rockwell legacy industrial‑control equipment worldwide.
