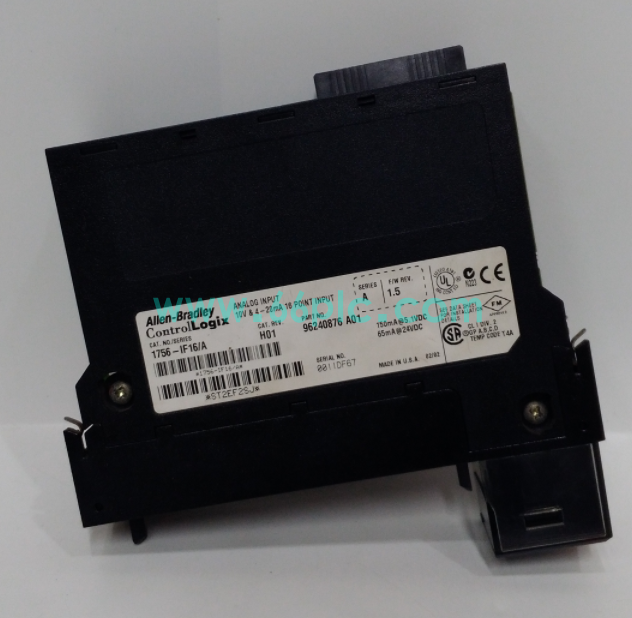

Allen‑Bradley 1756‑IF16 16‑Channel Analog Input Module

The Allen‑Bradley 1756‑IF16 is a 16‑channel analog input module designed for Rockwell ControlLogix PLC systems. It receives analog signals from field transmitters and converts analog process values into digital data, allowing the controller to monitor pressure, temperature, flow and liquid level variables for industrial closed‑loop control.

This hot‑swappable rack plug‑in module supports configurable current and voltage signal ranges with built‑in channel diagnostic functions. It fits standard ControlLogix chassis slots and is widely used in manufacturing, water treatment, petrochemical and power plant automation cabinets.

Main Specifications

• Brand: Allen‑Bradley (Rockwell Automation); Model: 1756‑IF16; Type: 16‑Channel Analog Input Module
• Applicable System: ControlLogix PLC automation platform
• Core Tasks: Analog signal acquisition, A/D conversion, channel fault detection, hot‑swap maintenance
• Signal Interface: Field analog wiring terminals, ControlLogix backplane connector
• Installation: Plug‑in slot‑mount on standard ControlLogix chassis rack, supports hot swap
• Signal Type: Configurable 4‑20mA current, ±10V voltage analog signals
• Operating Environment: 0℃ ~ +60℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Mechanical: Standard ControlLogix module form‑factor, IP20 cabinet‑mount installation
• Certifications: CE, compliant with Rockwell industrial automation EMC requirements

Core Functions

• Collect analog measurement signals from field transmitters and convert analog signals into digital values for ControlLogix controller processing.
• Support software configuration of signal types and ranges to adapt to different pressure, temperature and flow measurement instruments on site.
• Built‑in channel self‑diagnosis detects open circuit, overrange and internal hardware faults, uploading alarm information to HMI operation interface.
• Support hot‑swap module replacement without shutting down the control system, reducing downtime during equipment maintenance.
• Provide signal filtering function to suppress field electrical noise and improve measurement stability in complex electromagnetic environments.
• Industrial‑hardened plug‑in hardware ensures long‑term stable continuous operation inside ControlLogix automation control cabinets.

Application Scenarios

• Spare‑part replacement for ControlLogix automation cabinets in manufacturing, water treatment, petrochemical and power plant sites.
• Analog signal acquisition hardware for process monitoring and closed‑loop control of industrial production equipment.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of Rockwell ControlLogix automation equipment.
• Matching analog input module cooperating with ControlLogix CPU, power supply unit and terminal base assemblies.
• Retrofit replacement for aged analog modules with signal drift, channel failure and communication abnormal faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Rockwell industrial‑control equipment worldwide.
