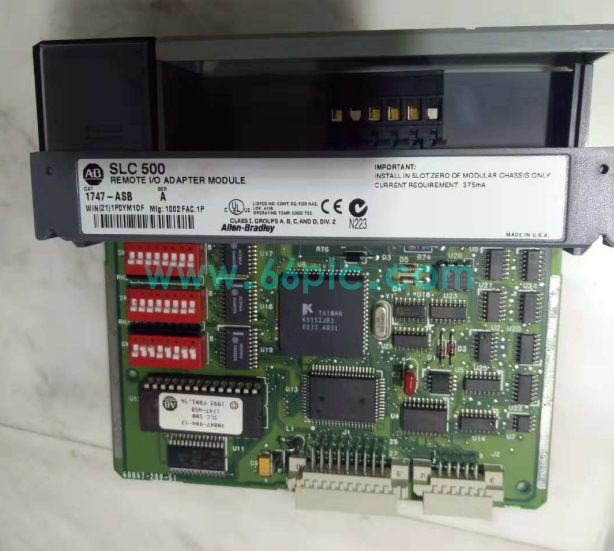

Allen‑Bradley 1747-ASB SLC 500 Remote I/O Adapter Module

The Allen‑Bradley 1747-ASB is a remote I/O adapter module designed for the SLC 500 PLC system. It establishes remote I/O communication links between the SLC chassis and main processor, enabling distributed layout of I/O racks to place field signal modules closer to production equipment and shorten wiring distance.

This module supports standard Allen‑Bradley remote I/O communication protocol and provides comprehensive network status diagnosis. It adopts single-slot chassis installation, widely stocked as spare parts for maintenance and reconstruction of old SLC 500 distributed automation control systems.

Main Specifications

• Brand: Allen‑Bradley (Rockwell Automation)
• Model: 1747-ASB
• Product Type: SLC 500 Remote I/O Adapter Module
• Communication: Remote I/O (RIO) industrial communication protocol
• Supports multi-ｄｒｏｐ distributed remote I/O rack connection
• Built-in LED indicators for network, fault and module status
• Backplane Power Consumption: 160mA @ 5VDC
• Operating Temperature Range: 0°C ~ +60°C
• Data transmission supports multiple baud rate options
• Installation: Standard single-slot SLC 500 chassis mounting

Core Functions

• Realize data exchange between remote I/O racks and SLC 500 main processor
• Support distributed control architecture to reduce long-distance field wiring costs
• Transmit digital and analog I/O signals over remote I/O communication cables
• Real-time monitor communication status and upload network fault alarm information
• Convenient address setting to match different remote rack configuration requirements
• Fully compatible with SLC 500 series CPUs, racks and all SLC 500 I/O modules
• Visual LED indicators facilitate on-site communication troubleshooting and inspection
• Industrial anti-interference performance adapts to complex factory workshop environments
• Support flexible layout of control cabinets in large-scale production workshops
• Single-slot plug-in structure supports quick replacement during equipment maintenance

Application Scenarios

• Automobile manufacturing long-distance assembly line distributed control systems
• Water treatment plant dispersed pump station and valve group monitoring cabinets
• Packaging machinery, textile equipment distributed I/O automation platforms
• Material handling, conveyor and warehouse logistics control systems
• Food processing production line distributed signal collection control racks
• Mining auxiliary equipment and large machinery remote signal acquisition units
• Plastic, rubber processing equipment multi-station control automation systems
• Traditional factory reconstruction projects using SLC 500 distributed control
• Retrofit and expansion of legacy SLC 500 remote I/O control networks
• SLC 500 communication module spare parts maintenance and replacement projects
