Product Description

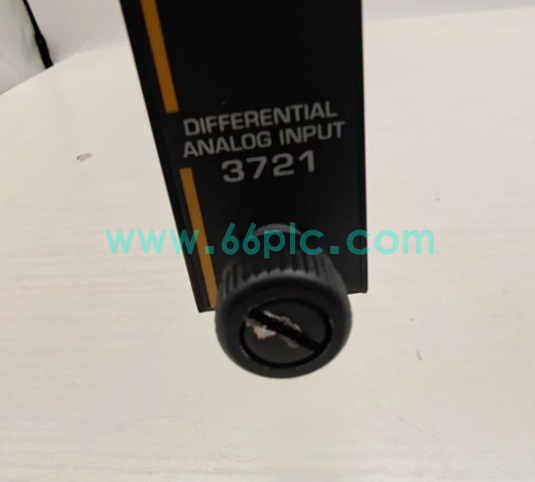

The Triconex 3721 is a high-performance safety-grade analog input module designed for Triconex Tritech triple modular redundant (TMR) safety instrumented systems (SIS). Serving as the core field signal acquisition unit for critical process safety control racks, it is dedicated to high-precision collection, conditioning and fault-tolerant processing of industrial analog process variables, ensuring accurate and reliable data transmission for safety interlock and protection logic.

Adopting exclusive TMR triple redundant architecture, the module features three independent signal processing channels for simultaneous sampling and voting judgment, effectively eliminating single-point failure risks and achieving ultra-high system availability. It supports multi-range analog signal input with high-resolution ADC conversion, delivering stable and distortion-free process data in harsh industrial electromagnetic environments. Equipped with built-in channel fault detection, signal abnormality identification and fault isolation mechanisms, it enables real-time self-diagnosis and rapid fault location. With industrial wide-temperature adaptability, advanced EMC anti-interference design and safety certification compliance, it supports 24/7 long-term uninterrupted stable operation of high-risk industrial safety control systems.

Main Specifications

1. Full Part Number: 3721; Product Type: TMR architecture safety-grade analog input module for SIS systems
2. Applicable System: Triconex Tritech series triple redundant safety instrumented systems and critical process control platforms
3. Core Function: Field analog signal acquisition, precision conditioning, TMR fault-tolerant voting, data transmission and health diagnosis
4. Redundancy Design: Triple Modular Redundancy (TMR) three-channel independent sampling and voting architecture
5. Signal Performance: High-resolution ADC conversion for high-precision analog process variable measurement
6. Fault Tolerance: Support single-channel fault isolation and continuous system operation without shutdown
7. Diagnostic Capability: Full-channel real-time self-diagnosis for signal loss, circuit abnormality and module failure
8. Safety Standard: Compliant with industrial safety integrity level requirements for critical SIS applications
9. Environmental Adaptability: Industrial-grade wide temperature resistance and strong electromagnetic interference suppression
10. Reliability: Safety-certified rugged modular design for long-cycle high-risk process safety control tasks

Core Functions

1. Act as the dedicated high-reliability analog signal acquisition core for Triconex SIS safety racks.
2. Accurately collect multi-type field analog signals including pressure, temperature, flow and liquid level.
3. Execute TMR three-channel fault-tolerant voting logic to ensure valid and credible monitoring data.
4. Realize precise signal conditioning and noise filtering to eliminate field interference and signal distortion.
5. Perform real-time module and channel health diagnosis to support predictive maintenance and fault tracing.
6. Provide stable and accurate data basis for safety interlock protection and process emergency control logic.

Application Scenarios

1. Petrochemical and natural gas industry SIS safety instrumented system process signal monitoring
2. Power plant, energy and chemical high-risk unit safety interlock and protection control platforms
3. Offshore engineering and process industry critical equipment safety monitoring scenarios
4. Replacement and upgrading of aging Triconex Tritech series analog input safety modules
5. Industrial sites requiring TMR redundancy and high-safety-level process signal acquisition
