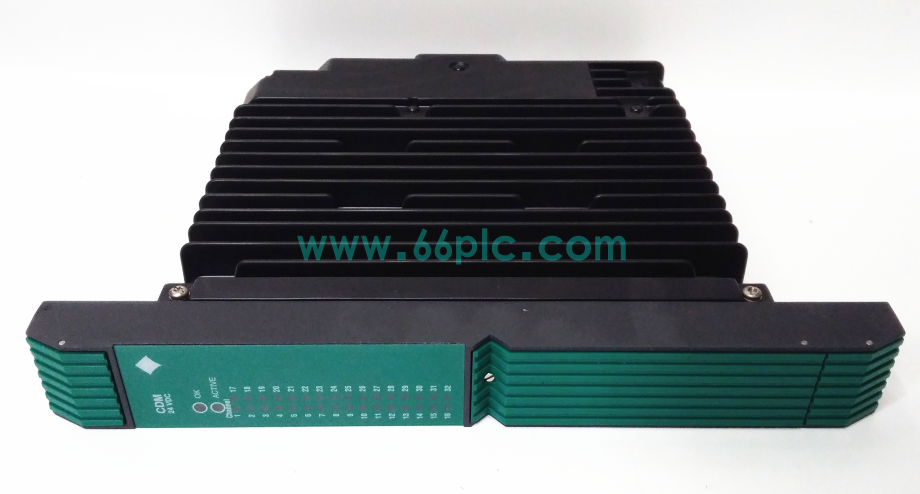

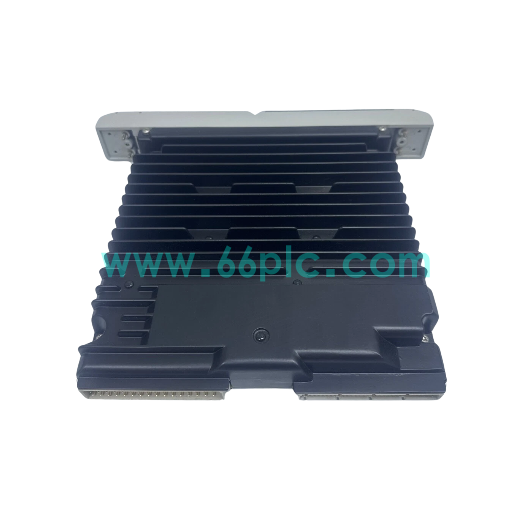

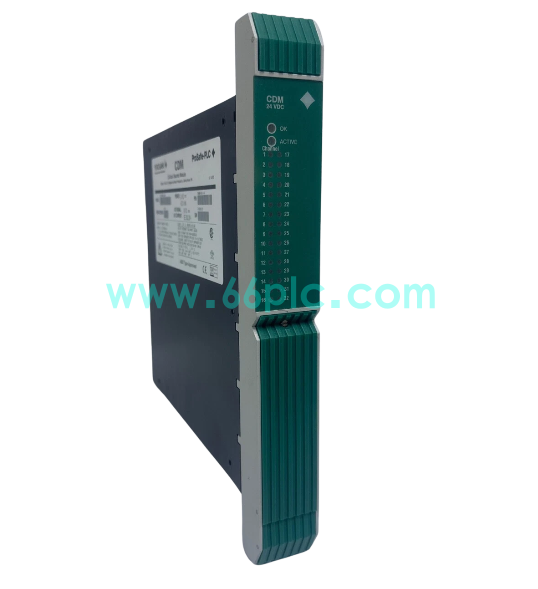

Yokogawa PSCDM024DCBAN A5E0024837106 Safety Digital Output Module

The Yokogawa PSCDM024DCBAN A5E0024837106 is a safety‑grade digital output module designed for Yokogawa ProSafe‑PLC SIS safety instrumented systems. It receives safety logic commands from SIS CPU and delivers 24VDC discrete output signals to drive field solenoid valves, trip relays and other safety actuators for interlock and emergency shutdown protection.

This slot‑mount hot‑swappable module is equipped with comprehensive channel self‑diagnosis to detect output circuit anomalies. It is installed in ProSafe‑PLC rack slots and widely applied in SIS safety cabinets of petrochemical, refinery and power‑generation industrial sites.

Main Specifications

• Brand: Yokogawa; Model: PSCDM024DCBAN A5E0024837106; Type: SIS Safety Digital Output Module
• Applicable System: Yokogawa ProSafe‑PLC Safety Instrumented System
• Core Tasks: Safety discrete control output, output channel self‑diagnosis, hot‑swap maintenance, field safety actuator driving
• Signal Interface: Field output signal terminals, internal backplane bus connector for ProSafe‑PLC rack
• Installation: Plug‑in slot‑mount on ProSafe‑PLC module rack, supports hot‑swap replacement
• Signal Type: 24VDC safety digital output for field solenoid valves and trip relays
• Operating Environment: 0℃ ~ +55℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Mechanical: Standard ProSafe‑PLC module form‑factor, IP20 for cabinet‑internal installation
• Certifications: CE, TÜV certified for IEC61508 SIL‑3 safety‑related application

Core Functions

• Receive safety‑related logic commands from ProSafe‑PLC safety CPU and output 24VDC discrete signals to control field safety actuators and solenoid valves.
• Perform output actions for safety interlock and emergency shutdown loops to implement trip protection for process‑industry production units.
• Built‑in self‑diagnostic functions detect short‑circuit, open‑circuit and internal hardware faults on output channels and feed alarm information back to the SIS system.
• Support hot‑swap module replacement without shutting down the whole SIS system, minimizing downtime during on‑site maintenance work.
• Adopt safety‑oriented output processing architecture to ensure reliable execution of safety‑critical control commands.
• Industrial‑hardened plug‑in hardware design guarantees long‑term stable continuous operation inside safety instrumented control cabinets.

Application Scenarios

• Spare‑part replacement for Yokogawa ProSafe‑PLC SIS safety cabinets in petrochemical plants, refineries and power‑generation facilities.
• Control output hardware for ESD emergency shutdown and burner‑management safety instrumented interlock loops.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy Yokogawa safety‑PLC equipment.
• Matching digital output module cooperating with ProSafe‑PLC rack chassis, safety CPU and corresponding terminal units.
• Retrofit replacement for aged output modules with channel burnout, self‑diagnosis error and abnormal output faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Yokogawa safety‑control equipment worldwide.
