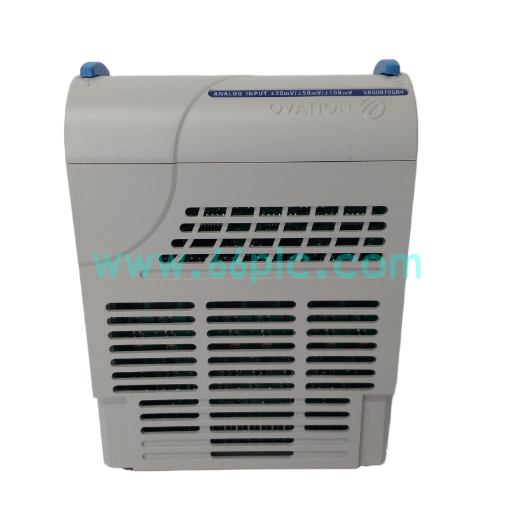

Emerson Ovation 5X00070G04 Millivolt Analog Input Module

The Emerson Ovation 5X00070G04 is a hot‑swappable millivolt‑range analog input module for Ovation DCS distributed control system. It is specially designed for low‑level millivolt signals, supporting 20mV, 50mV and 100mV input ranges, performing high‑precision 14‑bit analog‑to‑digital conversion, and transmitting measurement data to Ovation controller for thermal‑couple and strain‑gauge‑based process monitoring in power‑plant automation systems.

This MK‑series rack‑slot I/O module contains 8 galvanic‑isolated channels, integrates channel fault diagnosis and front‑panel LED status indicators. It must be installed on Ovation I/O carrier chassis and cooperate with matched termination base hardware. It serves as critical aftermarket spare for maintenance, overhaul and retrofitting of thermal‑power‑plant and petrochemical DCS control cabinets.

Main Specifications

• Brand: Emerson Ovation; Model:5X00070G04; Type: Millivolt Analog Input Module
• Applicable System: Emerson Ovation DCS distributed control platform
• Input Signal:20mV / 50mV / 100mV low‑level millivolt signal; 8 galvanic‑isolated channels; Support hot‑swap operation
• Function: Millivolt sensor signal acquisition, 14‑bit A/D conversion, channel fault diagnosis, back‑plane bus data transmission
• Feature: Rack slot‑mount installation, high‑sensitivity measurement, per‑channel LED indication, industrial anti‑interference hardware
• Installation: Plug‑in onto Ovation I/O carrier chassis with matched personality termination base module
• Power: Back‑plane powered; Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for power‑plant and process‑industry DCS automation applications

Core Functions

• Capture low‑level millivolt signals from thermocouples, strain gauges and other millivolt‑output field sensors.
• Complete high‑sensitivity 14‑bit A/D conversion and send accurate process values to Ovation controller via back‑plane bus.
• Per‑channel galvanic isolation suppresses ground‑loop interference and protects DCS internal circuits from field‑side surge damage.
• Detect channel abnormal conditions and module hardware faults, upload alarm messages to DCS operator station for maintenance prompting.
• Front‑panel LED indicators reflect each channel working status for fast loop inspection and fault location during commissioning work.
• Hot‑swap capability supports online module replacement without DCS shutdown during cabinet overhaul and on‑site troubleshooting work.

Application Scenarios

• Low‑level millivolt‑signal acquisition component for Emerson Ovation DCS distributed control systems.
• Critical spare‑part for thermal‑power‑plant, petrochemical and chemical‑plant DCS control cabinets.
• Retrofit and spare replacement for legacy 5X00070G04 millivolt‑analog‑input‑module DCS‑hardware upgrade projects.
• DCS cabinet overhaul, millivolt‑sensor‑loop debugging and faulty millivolt‑input‑card replacement tasks.
• Spare‑parts inventory for power‑automation integrators and process‑industry engineering contractors.

• Global aftermarket spare supply for technical teams maintaining Emerson Ovation DCS automation hardware.
