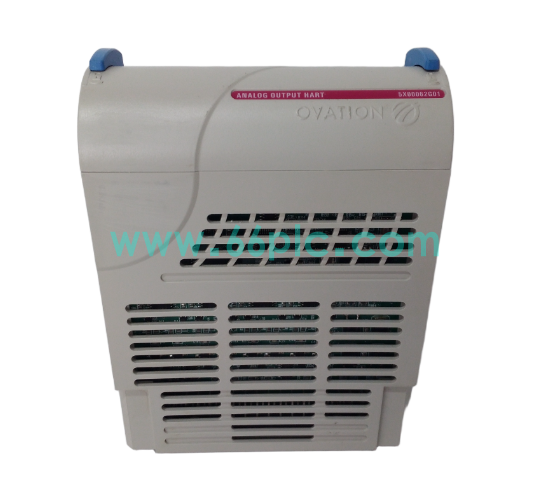

Emerson Ovation 5X00062G01 HART Analog Output Module

The Emerson Ovation 5X00062G01 is a hot‑swappable HART‑capable analog output module for Ovation DCS distributed control system. It receives digital set‑point commands from Ovation controller over back‑plane bus, converts digital values into stable 4‑20mA analog outputs, and supports HART bidirectional communication for smart valve positioners and HART‑compatible field actuators in power‑generation process control.

This MK‑series rack‑slot I/O module adopts channel‑level galvanic isolation, integrates loop open‑circuit and short‑circuit fault diagnosis and front‑panel LED channel status indicators. It is installed on Ovation I/O carrier chassis and requires matched termination hardware. It serves as critical aftermarket spare for maintenance, overhaul and retrofitting of thermal‑power‑plant and petrochemical DCS control cabinets.

Main Specifications

• Brand: Emerson Ovation; Model:5X00062G01; Type:HART Analog Output Module
• Applicable System: Emerson Ovation DCS distributed control platform
• Output Signal:4‑20mA analog current, HART protocol supported; Galvanic isolated channels; Support hot‑swap operation
• Function: Digital‑to‑analog conversion, HART bidirectional communication, analog loop output, loop fault diagnosis, back‑plane bus data transmission
• Feature: Rack slot‑mount installation, high‑precision D/A conversion, per‑channel LED indication, industrial anti‑interference hardware
• Installation: Plug‑in onto Ovation I/O carrier chassis with matched field termination unit
• Power: Back‑plane powered; Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for power‑plant and process‑industry DCS automation applications

Core Functions

• Receive closed‑loop control digital set‑point values from Ovation DCS controller via internal back‑plane bus.
• Complete high‑precision D/A conversion and output 4‑20mA analog signals to drive control valves, positioners and field actuators.
• Support bidirectional HART communication for remote parameter configuration and diagnostic reading of HART smart field devices.
• Galvanic isolation suppresses ground‑loop interference and protects DCS internal circuits from field‑side surge damage.
• Detect loop open‑circuit, short‑circuit and module hardware faults, upload alarm messages to DCS operator station for maintenance prompting.
• Hot‑swap capability supports online module replacement without DCS shutdown during cabinet overhaul and on‑site troubleshooting work.

Application Scenarios

• HART‑compatible analog control output component for Emerson Ovation DCS distributed control systems.
• Critical spare‑part for thermal‑power‑plant, petrochemical and chemical‑plant DCS control cabinets.
• Retrofit and spare replacement for legacy 5X00062G01 HART‑analog‑output‑module DCS‑hardware upgrade projects.
• DCS cabinet overhaul, HART valve‑loop debugging and faulty HART‑output‑card replacement tasks.
• Spare‑parts inventory for power‑automation integrators and process‑industry engineering contractors.

• Global aftermarket spare supply for technical teams maintaining Emerson Ovation DCS automation hardware.
